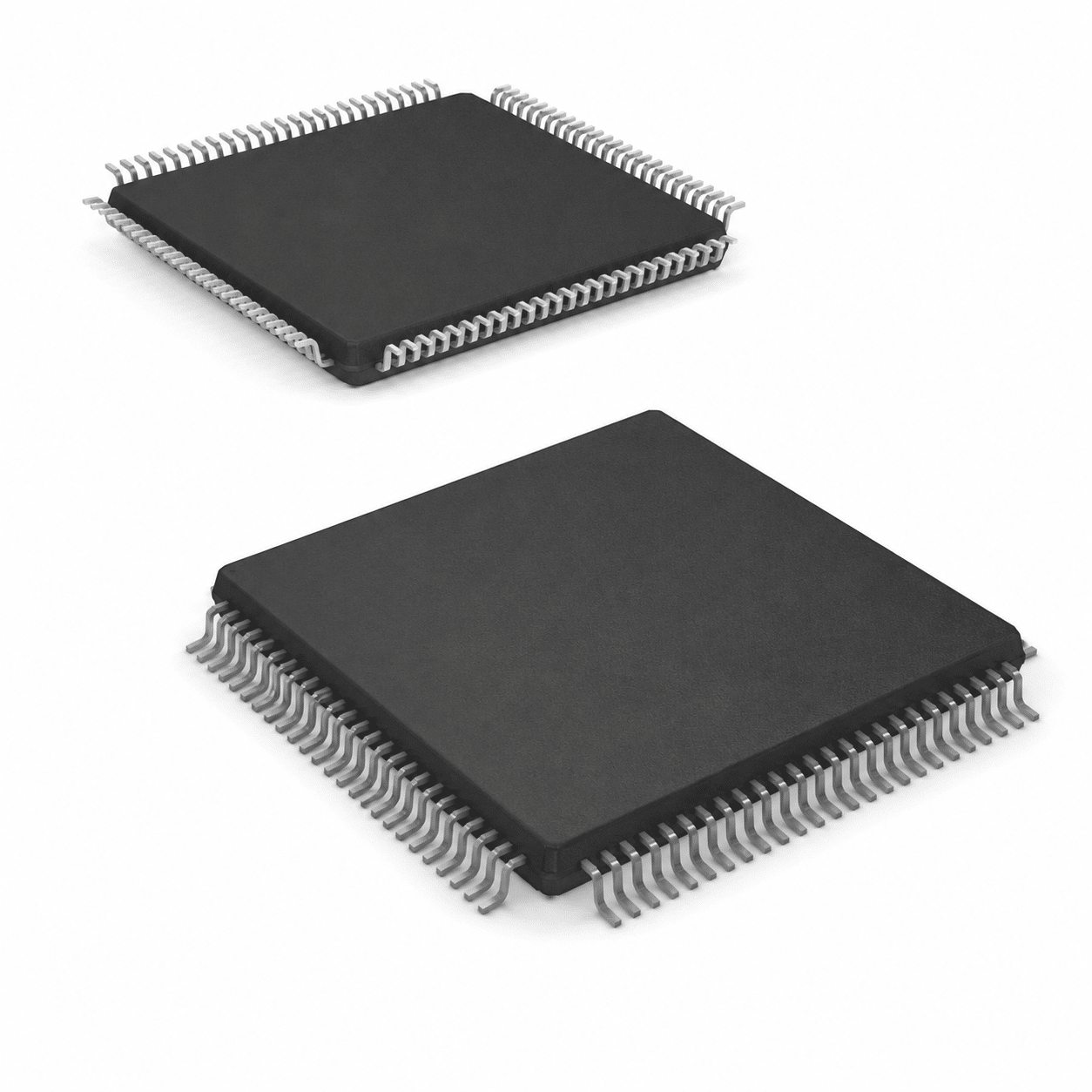

EPM240T100C5N Max II CPLD IC
Non-Volatile Instant-On Architecture meets Low Power – The Professional Max II CPLD Choice for Interface Level Shifting & Logic Consolidation.
// High-Efficiency Multi-Bank Programmable Logic Portfolio
The Non-Volatile Instant-On Advantage
The EPM240T100C5N represents an industry-standard solution for cost-effective, low-power system control design. Engineered by Intel Altera using an advanced look-up table (LUT) fabric, this Max II CPLD integrates 240 flexible logic elements alongside a native on-chip clock oscillator. Housed in a low-inductive TQFP100 package footprint, it delivers instant-on behavior with zero power-up configuration delay across 80 programmable I/O ports, successfully eliminating board timing hazards inside communication routing and factory automation controllers.
- 240 high-efficiency Logic Elements (LEs) for custom hardware gating
- 80 User I/O pins optimized for multi-voltage interface level shifting
- Built-in flash memory block supporting multi-bank memory organization
Key Performance Advantages
Instant-On Activation
Utilizes on-chip flash initialization structures to boot macrocells immediately at power-up, securing localized core system logic before processors wake.
Flexible Level Shifter
Multi-voltage I/O banks allow direct signal translation between 1.5V, 1.8V, 2.5V, and 3.3V system logic rails without auxiliary transceivers.
Deterministic Timing
Features an on-chip flash memory and internal clock, ensuring absolute timing synchronization and reducing active dynamic power constraints.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Intel Altera |
| Part Number (MPN) | EPM240T100C5N |
| Device Family | MAX II CPLD Architecture Series |
| Logic Elements (LEs) | 240 Logic Elements / Equivalent Macrocells |
| Number of User I/Os | 80 Configurable User I/O Ports |
| Internal Memory Blocks | Built-in User Flash Memory (UFM) Structure |
| Core Supply Voltage | DC 2.5V / 3.3V Standard Power Rail Constraints |
| Package / Case Form | TQFP-100 / T100 Layout (Thin Quad Flat Package) |
| Speed Grade Designation | -5 Speed Optimization Spectrum |
| Temperature Window | 0°C to +85°C Commercial Operational Specification Compliance |
Versatile Logic Applications
- System Glue Logic: Consolidates discrete gates and complex logic circuits onto a single non-volatile chip layout.
- Interface Level Shifting: Bridges clean data communication routing pathways between different voltage logic rails.
- Industrial Automation: Manages localized sensor data collection, motor controls, and interface buses smoothly.
- Legacy Maintenance Channels: Serves as an ideal programmable replacement path for obsolete hardware lines.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
