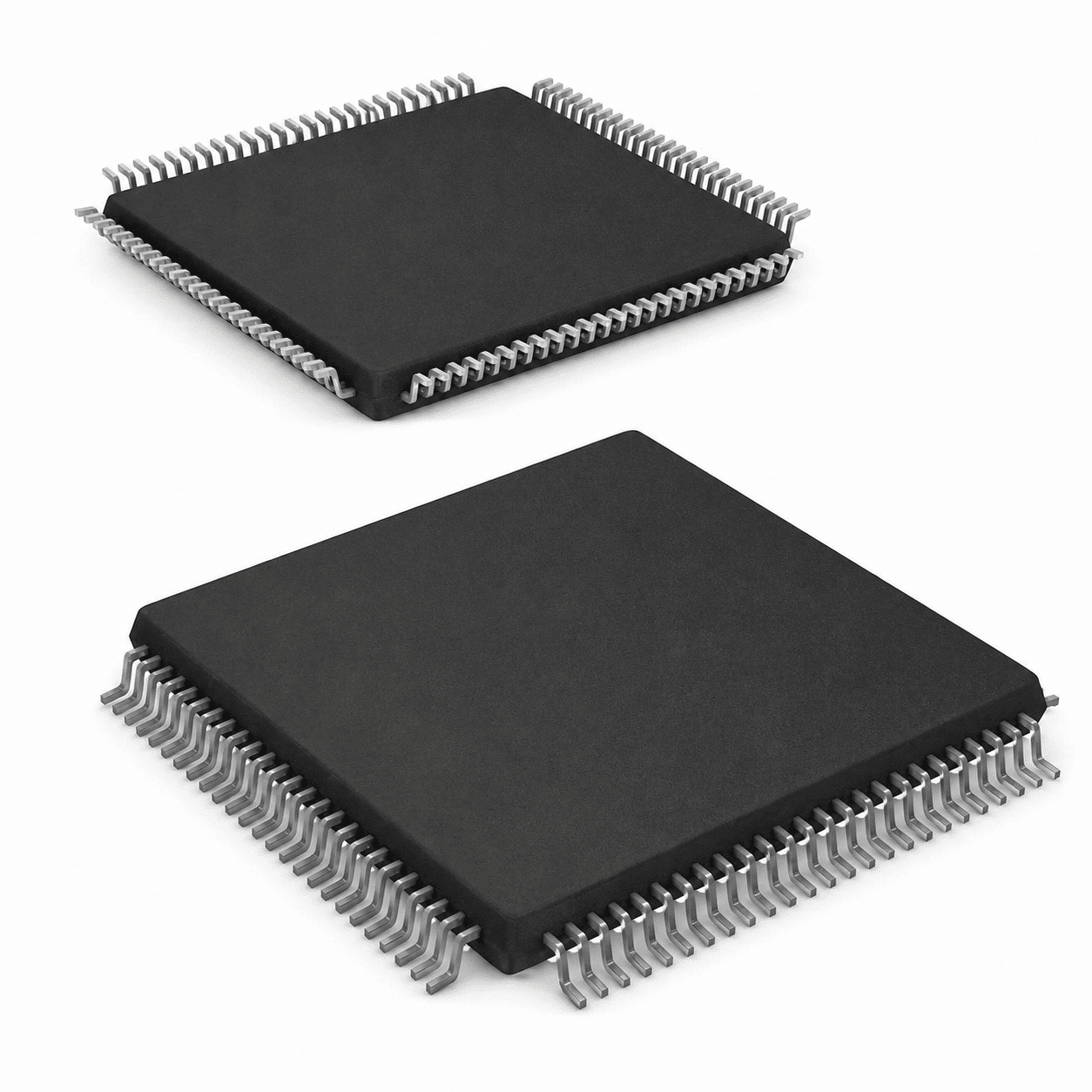

EPM570T100C5N MAX II CPLD IC
Non-Volatile Instant-On Architecture meets High Density – The Professional MAX II CPLD Hub Choice for Bus Control Matrix & Multi-Voltage Translation.
// High-Capacity Non-Volatile 440 Macrocells Architecture
The MAX II High-Capacity Advantage
The EPM570T100C5N represents the premium density standard for cost-effective, low-power programmable system control logic. Engineered by Intel Altera using a non-volatile lookup-table fabric, this MAX II CPLD scales your board-level capacity with 440 advanced macrocells (equivalent to 570 logic elements) and an on-chip flash memory matrix. Housed in a rigid, low-inductive TQFP100 footprint, it guarantees instant-on logic execution across 76 programmable user I/O ports, entirely removing configuration delay bottlenecks.
- 440 Advanced Macrocells (570 LEs) for robust logical control mapping
- 76 Configurable User I/O ports optimized for multi-voltage rail drive
- Integrated User Flash Memory (UFM) for on-chip system data caching
Key Performance Advantages
Instant-On Architecture
Boots critical logical pathways instantly at system power-up without configuration memory reload delays, keeping localized peripherals safely synchronized.
Multi-Rail Level Shifter
Multi-voltage I/O banks support direct bi-directional signal shifting between 1.5V, 1.8V, 2.5V, and 3.3V power rails, saving board space and component cost.
Low Power Consumption
Utilizes an advanced lookup-table layout to radically lower static power consumption profiles, minimizing localized thermal overhead over prolonged operation.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Intel Altera |
| Part Number (MPN) | EPM570T100C5N |
| Device Family | MAX II CPLD Architecture Series |
| Macrocells / Logic Elements | 440 Macrocells / Equivalent to 570 Logic Elements (LEs) |
| Number of User I/Os | 76 Programmable User I/O Ports |
| On-Chip Storage Matrix | Integrated 8 Kbits non-volatile User Flash Memory (UFM) |
| Core Supply Voltage | DC 2.5V / 3.3V Standard Power Rail Constraints |
| Package / Case Form | TQFP-100 / T100 Package (Thin Quad Flatpack layout) |
| Speed Grade Designation | -5 Speed Optimization Grade Rating |
| Temperature Spectrum | 0°C to +85°C Commercial Operation Range |
Versatile Logic Applications
- System Glue Logic Consolidation: Cleanly integrates dense discrete logical arrays and gate nodes onto one secure silicon canvas.
- Multi-Rail Voltage Bridging: Functions as a highly flexible interface level shifter across diverse bus power rails smoothly.
- Industrial Automation Controllers: Drives reliable state-machine timing routing and peripheral IO expansion loops in CNC platforms.
- Legacy Board Maintenance: Serves as an ideal programmable replacement channel for obsolete non-volatile logic lines.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
