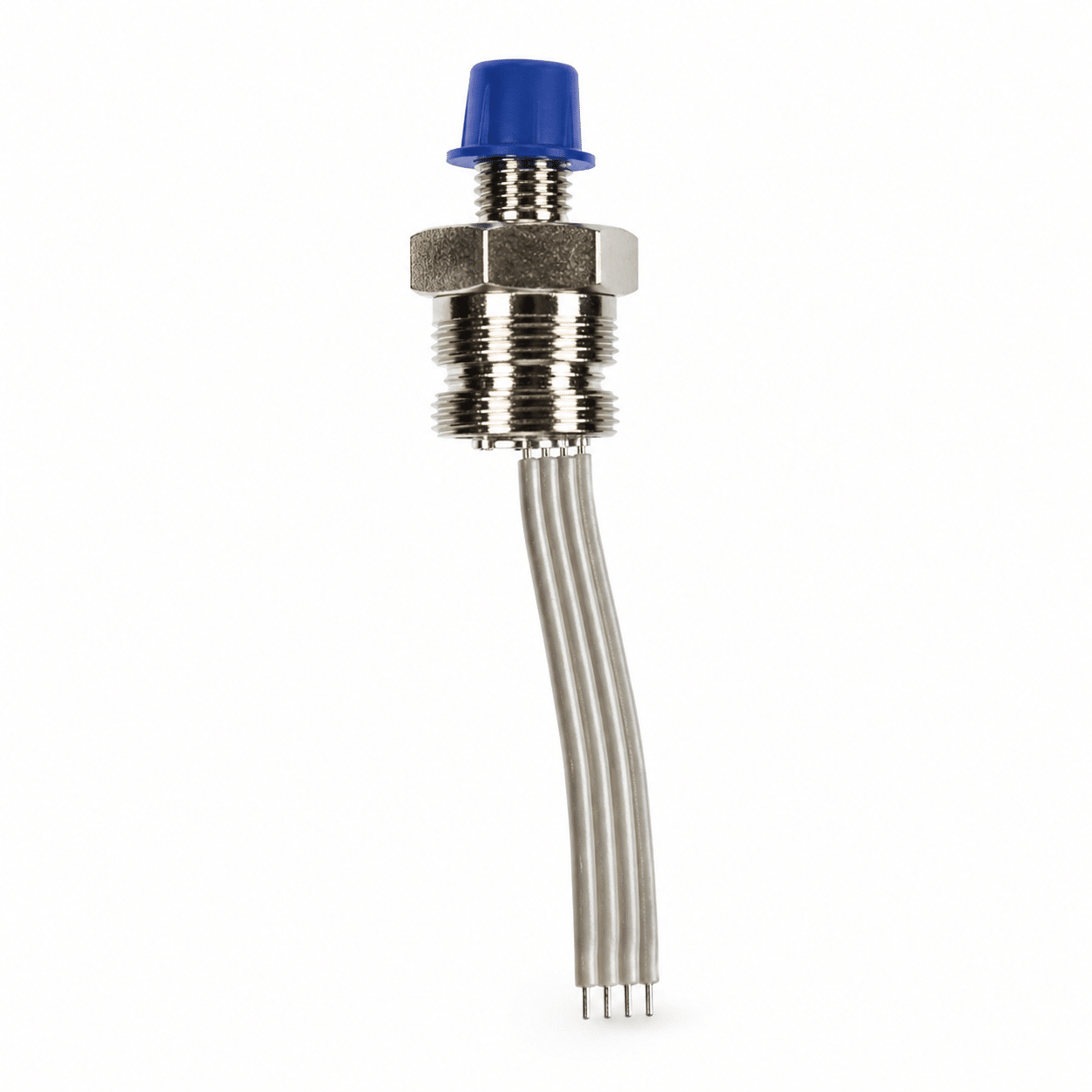

19C030PG4K Pressure Sensor
30 psi Gage Range meets Stainless Steel Isolation – The Professional Piezoresistive Transducer Choice for Heavy-Duty Media Sensing.
The Rugged Media Isolated Advantage
The 19C030PG4K represents a premier industry-standard benchmark for harsh media-sensing environments demanding absolute linearity and rugged solid-state reliability. Engineered by Honeywell inside their premium 19mm 19C series, this transducer utilizes a calibrated piezoresistive silicon chip isolated in a vacuum-sealed oil column. Housed in a heavy-duty 316L stainless steel structural frame with a flexible ribbon cable configuration, it establishes pure, deterministic analog signal telemetry loop channels safe from corrosive liquids or gaseous dynamics.
- 30 psi Gage pressure configuration tracking fine-scale process media variables
- Temperature compensated architecture providing extreme stability across thermal drift
- Rugged stainless steel cell isolated layout safeguarding against corrosive process fluids
Key Performance Advantages
Piezoresistive Precision
Utilizes on-chip silicon modeling elements to achieve unmatched response linearity, eliminating systemic signal scaling drift metrics.
Temperature Compensated
Integrates an internal thin-film resistor matrix to neutralize thermal variations, delivering absolute baseline calibration accuracy in fieldboards.
316L Stainless Isolation
Features an isolated solid-state diaphragm layout that protects the core sensor die completely against corrosive elements and aggressive fluids.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Part Number (MPN) | 19C030PG4K (19mm 19C Series) |
| Sensor Technology | Vacuum Isolated Piezoresistive Silicon Transducer Core |
| Pressure Type Config | Gage Pressure Variant (表压) |
| Measurement Range | 0 psi to 30 psi (Pounds Per Square Inch Calibration Bounds) |
| Isolation Diaphragm | 316L Stainless Steel Housing and Isolated Cell Matrix |
| Electrical Connectivity | Custom Flexible Ribbon Cable Assembly Interface |
| Excitation Supply | Constant Current Style: 1.5 mA Typical Configuration |
| Linearity & Hysteresis | ±0.25% BFSL Maximum Structural Deviation Output |
| Temperature Window | Compensated Performance Spectrum Ranges (0°C to +82°C) |
Versatile Telemetry Applications
- Industrial Process Control: Monitors hydraulic loop constraints, chemical fluid transit systems, and plant automation valves safely.
- Medical Diagnostic Platforms: Delivers deterministic low-pressure analog output values for breathing machines and fluid delivery controls.
- Pneumatic Control Systems: Real-time pressure tracking loops inside factory automated air compressors and tool equipment boards.
- Environmental Telemetry: Highly precise tank level measurement grids and marine or industrial liquid monitoring applications.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
