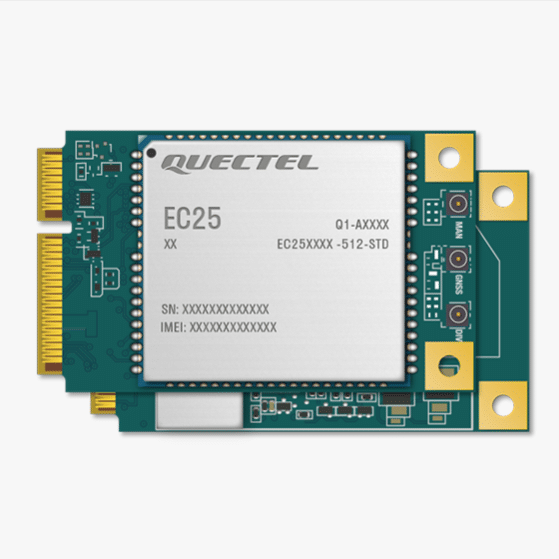

Quectel EC25 Mini PCIe Module
High-Speed LTE Cat 4 Network meets Standard Mini PCIe Layout – The Professional Industrial IoT Wireless Silicon Choice.
// 150 Mbps Downlink Infrastructure High-Reliability Cellular SMT Portfolio
The Industrial Cellular Connectivity Advantage
The Quectel EC25-EFA-MINIPCIE represents a premier professional LTE Category 4 wireless communication solution engineered for space-constrained, rugged hardware architectures demanding absolute data throughput and multi-constellation GNSS asset tracking profiles. Developed inside Quectel’s advanced industrial M2M communication framework, this module processes high-speed 4G networking streams and backward compatibility loops flawlessly without connection dropouts. Housed in a standard PCI Express Mini Card form factor, it secures pure, deterministic communication data pipelines and completely cuts off systemic board-level wireless integration hazards.
- High-speed LTE Cat 4 architecture delivering robust 150Mbps downlink and 50Mbps uplink parameters
- Integrated multi-constellation GNSS receiver running real-time position tracking smoothly
- Standard Mini PCIe hardware layout maximizing cross-platform plug-and-play migration boundaries safely
Key Performance Advantages
LTE Cat 4 Networking
Delivers ultra-stable broadband cellular data speeds, optimizing data pipelines efficiently for real-time edge computing nodes.
Precision GNSS Node
Integrates onboard high-precision GPS, GLONASS, BeiDou, and Galileo tracking systems to secure robust spatial telemetry locations cleanly.
Standard Mini PCIe
Utilizes an industry-standard hardware pin interface protocol, ensuring straightforward modular retrofitting with reliable SMT connection metrics.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Quectel Wireless Solutions |
| Part Number (MPN) | EC25-EFA-MINIPCIE |
| Product Category | LTE Category 4 Wireless Communication Modules / Mini PCIe Form Factor |
| Data Rates Profile | Maximum 150 Mbps Downlink / Maximum 50 Mbps Uplink Throughput Loops |
| GNSS Capability | Integrated GPS, GLONASS, BeiDou, Galileo, and QZSS Receiver Engine |
| Interface Protocols | USB 2.0 High-Speed, Audio (PCM), UART, and LED Working Indicator Pins |
| Driver Compatibility | Embedded USB Drivers for Windows, Linux, and Android Operating Networks |
| Physical Form Factor | Standard PCI Express Mini Card (Mini PCIe) Frame Layout Profile |
| Component Status | Production Quality Grade Active Industrial Hardware Allocation Profile |
Versatile Industrial & IoT Applications
- Industrial Routers & Gateways: Acts as the primary cellular modem core for edge telemetry setups, factory gateways, and secure VPN systems safely.
- Asset Tracking Platforms: Delivers deterministic data syncs and precision GNSS arrays required for smart fleet tracking and logistics logistics smoothly.
- Digital Signage & Smart Retail: Powers remote outdoor display networks, commercial vending machines, and terminal POS modules cleanly.
- Smart Security Infrastructure: Optimizes data-heavy platforms needing stable, low-latency cellular links for real-time video surveillance devices.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
