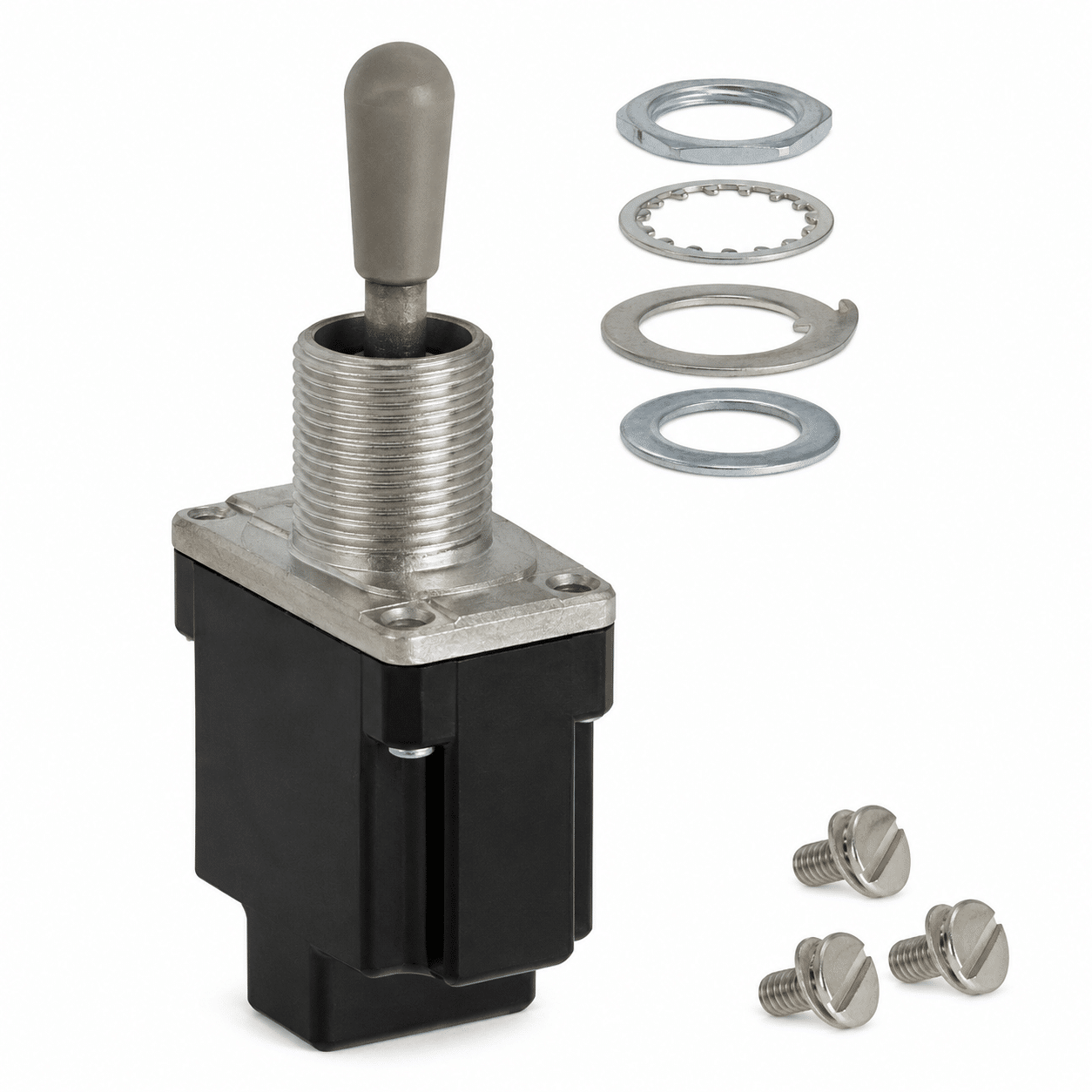

1TL1-2 Heavy-Duty Toggle Switch
Military Grade Environment Sealing meets Rugged Reliability – The Professional Premium Toggle Switch Choice for Critical Aerospace Controls.
// High-Reliability Environmentally Sealed IWTS Qualified Screw Terminals Portfolio
The Military Grade Switching Advantage
The 1TL1-2 represents a premier flagship mechanical alignment solution for space-constrained, ultra-rugged frameworks demanding absolute operational endurance and military-grade environmental resilience. Engineered by Honeywell inside their globally trusted TL premium switch family, this platform features an environmentally sealed housing that isolates contact matrices flawlessly under extreme pressure dynamics. Utilizing a standard heavy-duty lever actuator with robust screw terminal structures, it establishes pure, deterministic control corridors and completely eliminates field failure hazards.
- Qualified to MIL-DTL-3950 standards ensuring ultimate aerospace application stability
- Environmentally sealed chamber architecture safeguarding against heavy dust and liquid entry
- Long mechanical lifecycle with broad temperature tolerance metrics for optimized uptime
Key Performance Advantages
MIL-DTL-3950 Standard
Fully conforms to rigid military specifications, providing extreme tolerance against intense shock waves, structural G-force, and severe low-pressure high-altitude environments.
Environmentally Sealed
Integrates an advanced silicone lever seal bonded to a high-strength composite header, keeping internal silver alloy contacts fully safe from heavy chemical washdowns.
Rugged Screw Terminals
Features heavy-duty step-style screw terminal designs, ensuring exceptionally secure physical wire connections that resist constant engine panel vibrations.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Part Number (MPN) | 1TL1-2 (TL Premium Military Series) |
| Military Standard Spec | Fully Qualified to MIL-DTL-3950 Standards Matrix |
| Circuitry Layout | SPST (Single Pole Single Throw // 2-Position OFF-ON) |
| Actuator Profile | Standard Lever Handle Actuator (Bright Nickel Finish) |
| Electrical Ratings | 15A at 125 VAC, 250 VAC // 20A at 28 VDC Heavy-Duty Constraints |
| Termination Style | Heavy Screw Terminals (With High Strength Locking Fasteners) |
| Contact Material | Fine Silver Alloy Matrix (Low Contact Resistance Architecture) |
| Sealing Level Rating | Environmentally Sealed Panel Component Bounds |
| Temperature Window | Extended Performance Spectrum Ranges (-65°C to +71°C) |
Versatile Aerospace & Heavy Applications
- Aerospace Cockpits: Core control panels for avionics navigation instruments, fuel pumps, and flight landing frameworks safely.
- Military Ground Vehicles: High-reliability switching controls for heavy tactical machinery panels and armored vehicle setups.
- Marine Construction Equipment: Real-time operations on ship bridge control consoles and salt-spray heavy duty marine electronics.
- Industrial Process Panels: Provides deterministic manual master override safety limits for high-vibration factory production cells.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
