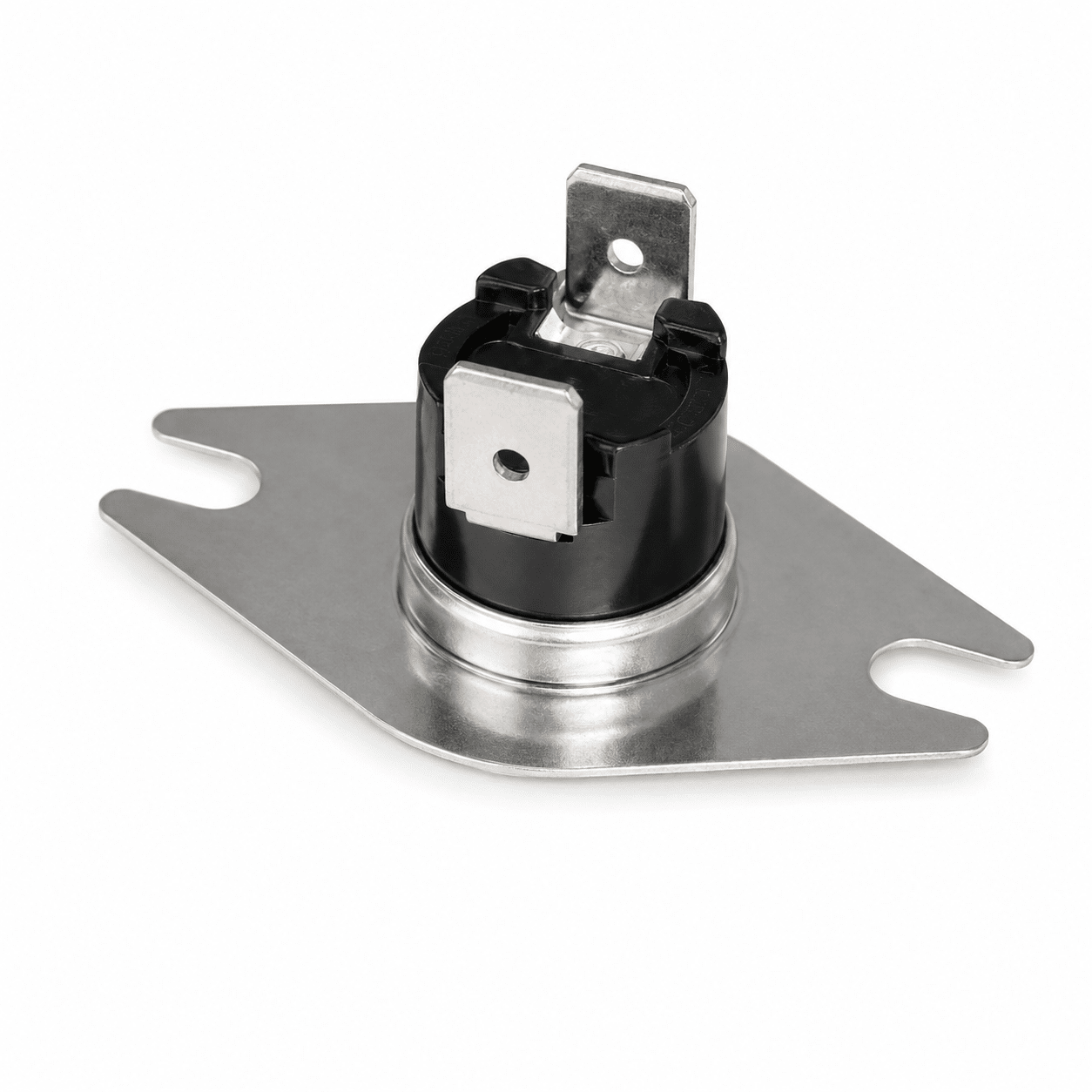

2455R 01000073 Bimetal Thermostat
Snap-Action Thermal Matrix meets Phenolic Base – The Professional Commercial Thermostat Switch Choice for Overheat Protection.
// High-Current 15A Resistive Single-Pole Snap-Action Terminals Portfolio
The High-Reliability Snap-Action Advantage
The 2455R 01000073 represents a premier industry-standard benchmark for high-density electrical thermal frameworks demanding absolute temperature point execution and long-term mechanical reliability. Engineered by Honeywell inside their trusted 2455R commercial bimetal family, this switch features a temperature-sensitive disc that snaps instantaneously to change contact states at preset limits. Housed in a flame-retardant phenolic base with horizontal quick-connect terminal leads, it establishes pure, deterministic thermal telemetry loop pathways.
- 15 Amp heavy-duty rating handling substantial resistive appliance electrical loads
- Pre-configured horizontal quick-connect terminals streamlining wire harness mounting
- Factory calibrated temperature threshold bounds ensuring absolute baseline precision
Key Performance Advantages
15A High Capacity
Supports high power current loading configurations up to 120VAC or 240VAC, making it perfect for direct series integration into heavy appliance heating circuits.
Snap-Action Control
Utilizes an advanced internal bimetallic mechanism to snap open and close instantly, radically eliminating internal contact arcing or radio interference bugs.
Rugged Phenolic Housing
Molded using a high-density dust-resistant phenolic matrix baseline, securing physical shell integrity and electric insulation across high temperature extremes.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Part Number (MPN) | 2455R 01000073 (2455R Phenolic Series) |
| Product Category | Commercial Phenolic Bimetal Thermostats / Temperature Switches |
| Circuitry Layout | SPST (Single Pole Single Throw) |
| Electrical Rating (AC) | 15A at 120 VAC // 10A at 240 VAC Maximum Resistive Constraints |
| Mechanism Design | Snap-Action Bimetallic Control |
| Termination Style | Horizontal Quick Connect Terminals (6.3 mm / 0.250 in Blade Size) |
| Housing Matrix Base | Flame-Retardant Industrial Grade Phenolic Resin Base |
| Mounting Profile | Custom Aluminum Mounting Flange Configuration Bracket |
| Operation Window | Factory Calibrated Setpoints // Up to 150°C [302°F] Maximum Housing Limit |
Versatile Thermal Applications
- Small Kitchen Appliances: Core safety interlock limit switch monitoring coffee makers, small boilers, and toaster grids cleanly.
- Office Automation Systems: Thermal protection framework safeguarding high-speed printer fuser assemblies and copier modules.
- HVAC & Industrial Systems: Direct series emergency limit cutout loop for air heating element tracks or ventilation machinery units.
- Medical Hardware Blocks: Provides deterministic ambient chamber heat monitoring loops inside laboratory incubation controllers.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
