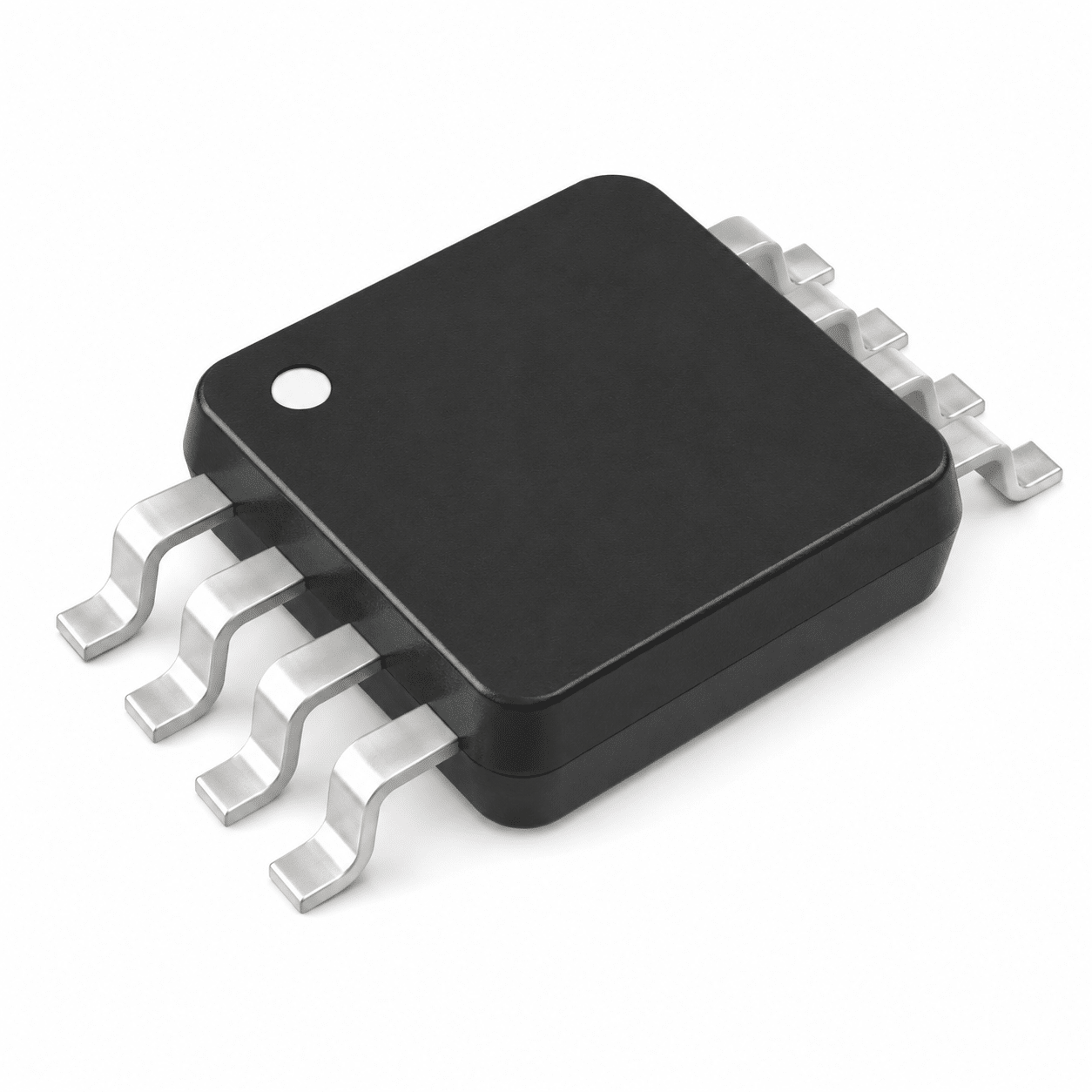

AD5662BRMZ-1REEL7 nanoDAC® IC
16-Bit High Resolution meets Ultra-Low Power – The Professional Single-Channel Rail-to-Rail DAC Choice for Precision Signal Generation.
// High-Precision 16-Bit Monotonic 3-Wire SPI Interface Portfolio
The High-Resolution Analog Advantage
The AD5662BRMZ-1REEL7 represents a premier flagship component for space-constrained, low-power instrumentation applications demanding absolute linearity and high-density resolution. Engineered by Analog Devices within the trusted nanoDAC® hardware family, this 16-bit digital-to-analog converter features guaranteed monotonic performance over temperature. Utilizing a versatile 3-wire serial SPI interface operating at clock rates up to 30 MHz, it delivers deterministic rail-to-rail buffered voltage output pathways directly on a tiny 8-lead MSOP footprint.
- True 16-Bit resolution with maximum 1 LSB DNL for seamless analog tracking
- Power-on reset to mid-scale layout configuration protecting downstream components
- Low power consumption drawing only 0.75 mW typical at 5V operation
Key Performance Advantages
16-Bit Low Noise
Provides extreme resolution density across a single rail-to-rail voltage output channel, dropping harmonic noise profiles in scientific diagnostic boards.
Power-Down Modes
Features software-selectable low power standby routines, reducing localized power consumption drain down to 1 µA max at 5V for battery setups.
Ultra-Compact MSOP
Housed in an incredibly small 8-lead MSOP package outline, freeing up valuable grid space inside dense multi-channel telemetry sensor hubs.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Part Number (MPN) | AD5662BRMZ-1REEL7 |
| Product Family Architecture | nanoDAC® High-Precision Converter Series |
| Resolution Density | 16-Bit Resolution Matrix |
| Number of DAC Channels | 1 Independent Output Channel |
| Digital Interface Protocol | 3-Wire SPI / QSPI / MICROWIRE / DSP Compatible Serial Link |
| Core Supply Voltage | DC 2.7V to 5.5V Single Rail Constraints |
| Power-On Default Layout | Resets to Mid-Scale Value (Variant -1 Specialization) |
| Package / Form Method | MSOP-8 / RM-8 Form (Mini Small Outline Package in Tape & Reel) |
| Temperature Window | Extended Industrial Performance Range (-40°C to +125°C) |
Versatile High-Precision Applications
- Precision Test Instrumentation: Core analog signal reference tracking, variable voltage source calibrators, and multi-meters.
- Industrial Process Control: Regulates deterministic analog actuator control matrices, closed-loop PLC tuning, and valve drives.
- Data Acquisition Systems (DAS): Serves as a highly stable offset adjustment and programmable digital-gain node link.
- Portable Telemetry Equipment: High-density low-leakage conversion configurations tailored for battery-assisted field loggers.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
