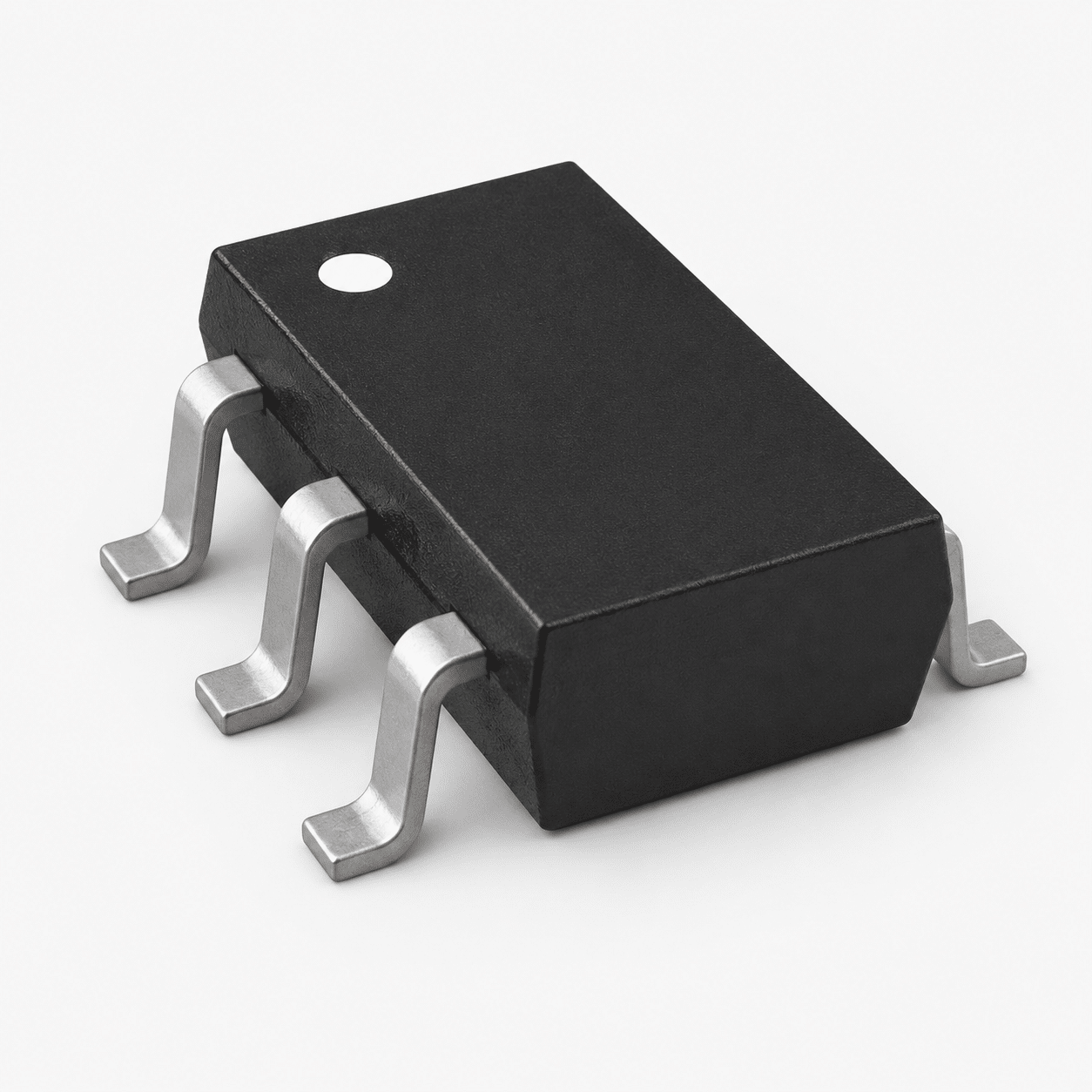

AD8605ARTZ-REEL7 Precision Op Amp
Rail-to-Rail Input & Output meets DigiTrim® Accuracy – The Professional Low-Noise Single Operational Amplifier Choice for Signal Conditioning.
// High-Precision Low Input Bias Current SOT-23-5 Core Portfolio
The Precision Signal Conditioning Edge
The AD8605ARTZ-REEL7 represents a premier flagship component for space-constrained, low-power applications demanding ultimate voltage precision and minimal drift thresholds. Engineered by Analog Devices using patented DigiTrim® in-package trimming technology, this operational amplifier achieves exceptionally low offset voltage profiles. Utilizing a full rail-to-rail input and output swing configuration paired with a high 10 MHz bandwidth capability, it delivers deterministic analog signal routing pathways natively inside a micro-scale SOT-23 footprint.
- Ultra-low input bias current (1 pA maximum) ideal for photodiode interfaces
- Rail-to-rail input/output design maximizing dynamic signal spectrum ranges
- Low distortion profiles and high PSRR maintaining absolute processing fidelity
Key Performance Advantages
10 MHz Wide Bandwidth
Maintains dynamic high-frequency gain-bandwidth response, facilitating low-distortion filtering curves in barcode and audio processing units.
Ultra-Low Bias Current
Drops input bias down to pico-ampere layers, safely neutralizing voltage error metrics when coupled with high-impedance optical sensors.
Compact SOT-23-5
Packaged in a miniature surface-mount profile, reclaiming precious layout board channels on multi-channel telemetry mainplates.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Part Number (MPN) | AD8605ARTZ-REEL7 |
| Amplifier Type | DigiTrim® Precision CMOS Operational Amplifier Series |
| Number of Channels | 1 Single Channel Hub |
| Gain Bandwidth Product | 10 MHz Operational Core Dynamic Response |
| Input Architecture | Rail-to-Rail Input and Output (RRIO Pattern Compliant) |
| Core Operating Voltage | DC 2.7V to 5.5V Single Supply Configuration Rail |
| Slew Rate Profile | 5 V/µs Continuous Tracking Curve |
| Package / Case Form | SOT-23-5 / RT-5 Layout (Small Outline Transistor in Tape & Reel) |
| Temperature Spectrum | Extended Industrial Performance Range (-40°C to +125°C) |
Versatile Precision Applications
- Photodiode Amplifications: Front-end instrumentation amplification for optical sensors, barcode scanners, and lasers.
- Industrial Signal Conditioning: Filters sensor telemetry clusters, active analog loops, and closed-loop weight metrics.
- Medical Diagnostic Platforms: Handheld electrocardiograms (ECG), blood monitoring hardware, and patient telemetry grids.
- Battery Powered Portables: Low active leakage current designs matching portable analytical devices perfectly.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
HIGH-PRECISION OPERATIONAL AMPLIFIER SOLUTIONS // DIRECT SOURCE ARCHITECTURE
