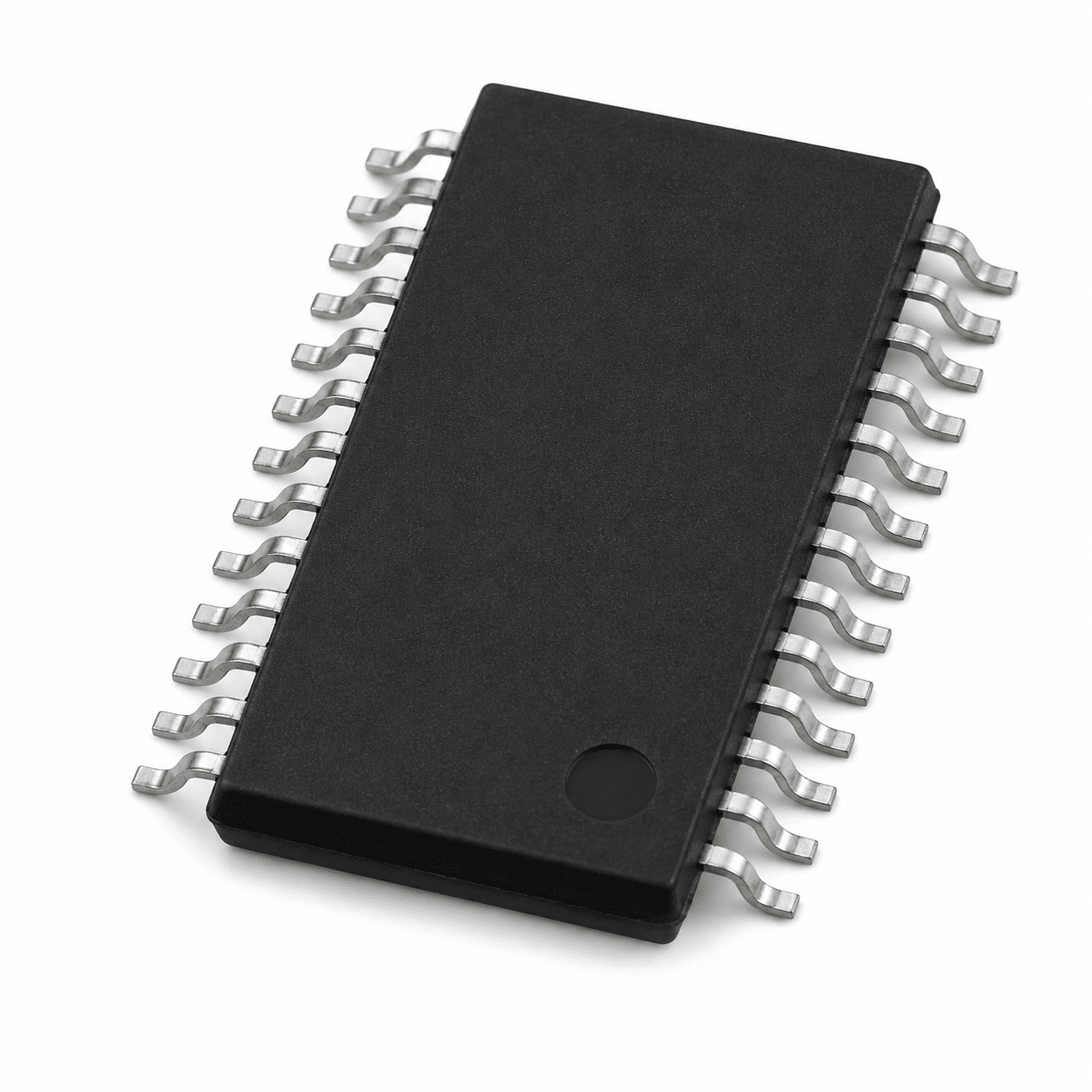

AK5385BVF Premium Audio ADC
24-Bit 192kHz Sampling meets 114dB Dynamic Range – The Professional Audio Delta-Sigma ADC Choice for High-End Recording Architecture.
// High-Fidelity Enhanced Dual-Bit 28-Pin VSOP Layout Portfolio
The High-Resolution Audio Digitizing Advantage
The AK5385BVF represents a premier flagship benchmark for high-fidelity digital recording and pro-audio system encoding requiring absolute linear dynamic capture and massive jitter tolerance. Engineered by AKM utilizing an enhanced advanced dual-bit delta-sigma modulator architecture, this 24-bit stereo ADC chip perfectly digitizes analog waves into crystal-clear audio streams. Housed in a space-saving 28-lead VSOP outline package, it secures pure, deterministic signal conversion corridors for luxury studio mixing mainplates.
- 24-Bit linear bit-depth resolution preserving authentic acoustic dynamics
- Supports ultra-dense sampling frequencies ranging smoothly from 8kHz up to 192kHz
- Integrated anti-aliasing digital filters reducing high-frequency out-of-band noise anomalies
Key Performance Advantages
192kHz Studio Standard
Supports advanced high-resolution 192kHz sampling rates, fully meeting the strict data tracking demands of professional studio audio mastering links.
114dB Dynamic Range
Achieves a stunning 114dB SNR paired with an impressive -103dB THD+N specification, completely filtering cross-talk noise interference loops.
Low-Inductive VSOP-28
Housed in a compact 28-pin VSOP package layout, reducing PCB physical footprint boundaries inside multi-channel audio interface housings.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Asahi Kasei Microdevices (AKM) |
| Part Number (MPN) | AK5385BVF |
| Product Category | Premium 24-Bit Stereo Audio A/D Converters (ADC) |
| Core Architecture | Enhanced Advanced Dual-Bit Delta-Sigma Modulator Setup |
| Max Sampling Rate | 8 kHz to 192 kHz (Linear Variable Synchronization Matrix) |
| Dynamic Range / SNR | 114 dB Dynamic Range Core Threshold (Stereo Tracking) |
| THD + N Specification | -103 dB Total Harmonic Distortion + Noise Analog Accuracy |
| Input Interface | Single-Ended Analog Audio Voltage Inputs |
| Package / Case Form | VSOP-28 Package (Very Thin Shrink Small Outline Multi-Pin Layout) |
| Temperature Window | Standard Performance Industrial Operation Bounds (-40°C to +85°C) |
Versatile Acoustic Applications
- Professional Audio Interfaces: High-end external multi-channel USB/Thunderbolt studio recording hardware grids.
- Digital Mixing Consoles: Unlocks deterministic telemetry digitization corridors for studio and live sound stage boards.
- A/V Receivers & Processors: Premium surround-sound encoding matrices, high-fidelity amplifiers, and multiroom processors.
- Musical Instrument Systems: Enhances raw waveform translation precision inside luxury digital synthesizers and effects processors.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
