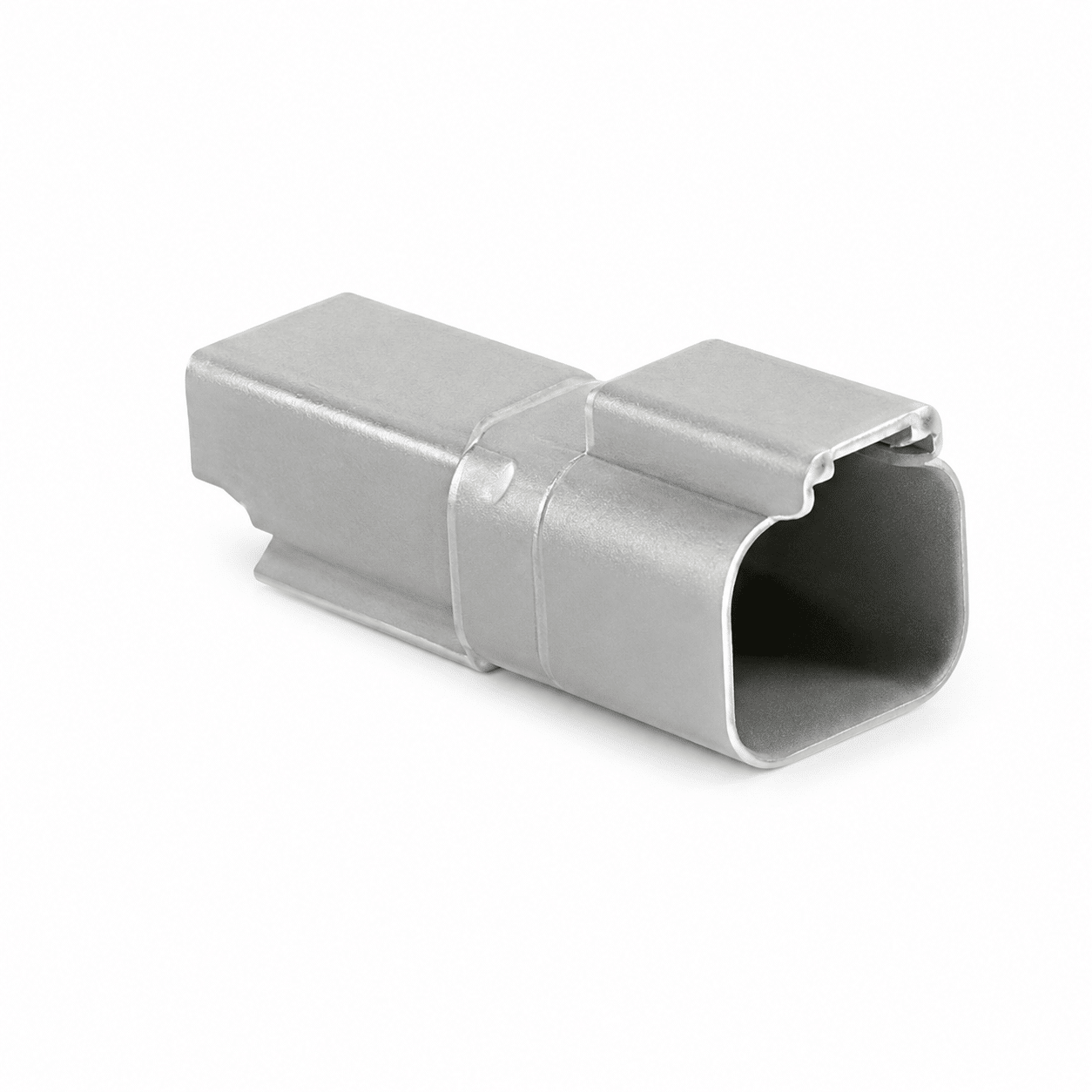

AT04-2P Waterproof Connector
IP67 Environment Sealing meets Industry Compatibility – The Professional 2-Way Receptacle Housing Choice for Automotive & Heavy-Duty Harnesses.
// High-Reliability AT Series 2-Position Thermoplastic Shell Portfolio
The Heavy-Duty Interconnect Advantage
The AT04-2P represents an industry-standard benchmark solution for sealed, high-reliability electrical connections in harsh environmental configurations. Engineered by Amphenol Tuchel Electronics as a superior, fully compatible replacement matrix for standard 2-way industrial plugs, this receptacle housing accommodates 2 size-16 pin contacts. Featuring a high-grade thermoplastic body and an advanced secondary wedge-lock system, it secures perfect contact alignment and deterministic circuit paths against persistent vibration.
- 2-Position inline array layout housing for standard male pin contacts
- Superior environment sealing locking out aggressive dust and fluid ingress
- Integrated snap-latch mechanism backing secure, tactile mating verification
Key Performance Advantages
IP67 Rated Insulation
Houses a high-durability silicone rear seal structure, completely blocking moisture barriers and fuel sprays during intensive industrial operations.
Universal Compatibility
Fully intermateable with all industry-standard existing 2-pin commercial sockets, saving harness reconfiguration times and secondary tooling fees.
Ruggedized Thermoplastic
Molded using premium UV-stabilized engineering plastics, preventing runtime shell degradation when exposed to severe under-hood thermal fluctuations.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Part Number (MPN) | AT04-2P |
| Product Series Family | AT Series (Heavy-Duty Environment Sealed) |
| Connector Component | Receptacle Housing / Male Pin Shell |
| Number of Positions | 2 Ways / 2 Positions Array Layout |
| Contact Size Accepted | Size 16 (Supports Standard Machined or Stamped Contacts) |
| Current Rating Max | Up to 13 Amps Continuous per Circuit Node |
| Shell Material / Color | Heavy Thermoplastic Compound / Standard Industrial Grey |
| Environment Protection | IP67 Ingress Sealing Level Certification Compliance |
| Temperature Spectrum | Severe Operational Constraints (-55°C to +125°C) |
Versatile Rugged Applications
- Automotive & Motorsports: Robust under-hood chassis loops, sensor nodes wiring harnesses, and auxiliary lighting feeds.
- Agricultural Equipment: Heavy-duty harvesting machinery controllers, telemetry links, and multi-sensor routing arrays.
- Marine Systems Engineering: Outboard control dashboards, diagnostic connections exposed to aggressive salt mist zones.
- Industrial Diagnostics: Ruggedized logic links, CAN Bus branching networks, and portable multi-meter terminal points.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
