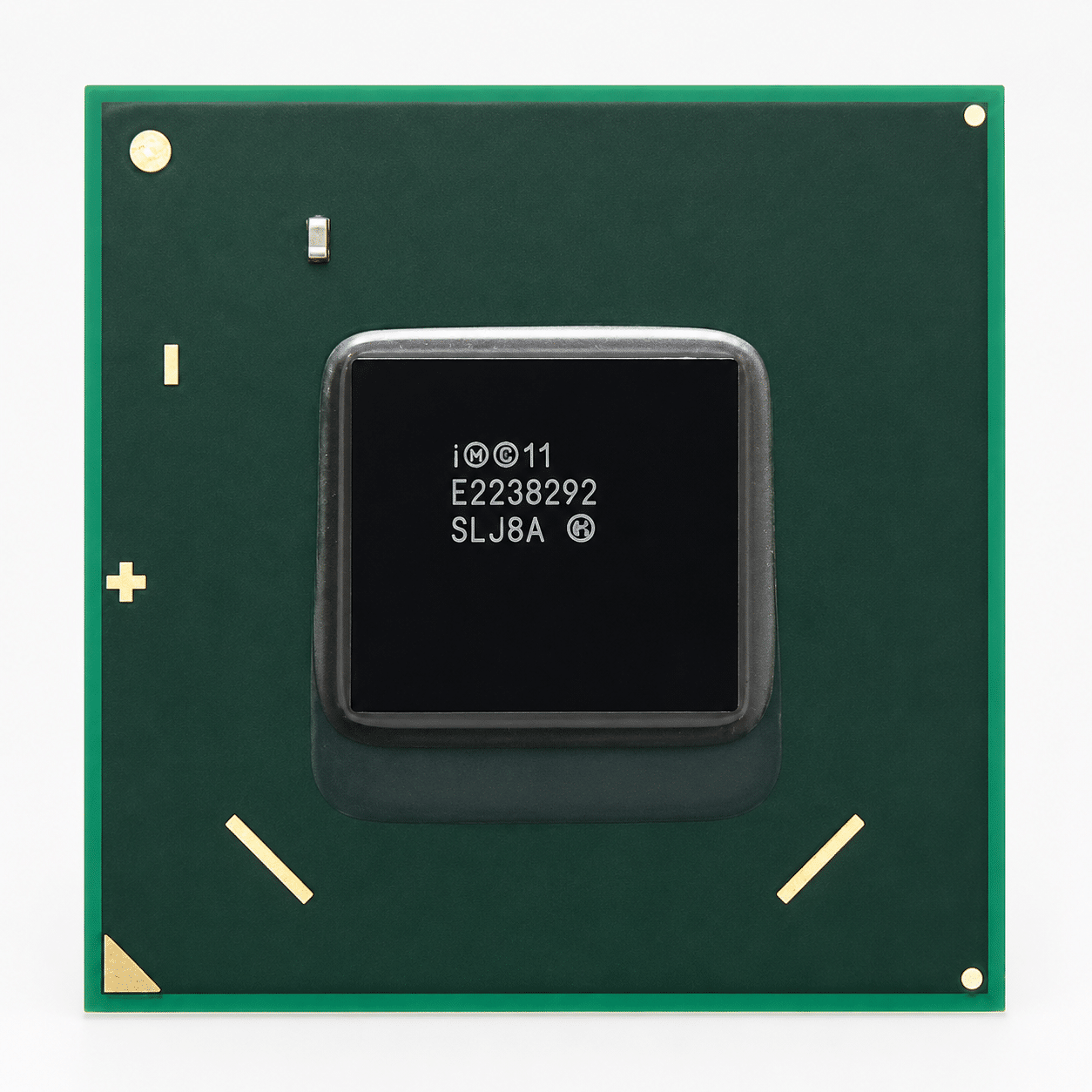

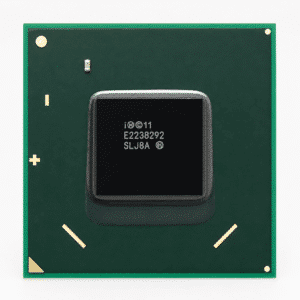

BD82QM77 SLJ8A PCH Chipset IC
High-Speed Peripheral I/O Routing meets Low-Power Architecture – The Professional QM77 Express PCH Hub Choice for Industrial Workstations & Embedded Logic.
// High-Reliability Mobile Platform Controller Hub (PCH) Series
The QM77 Platform Controller Advantage
The BD82QM77 SLJ8A stands as an industrial benchmark for advanced system logic and peripheral bus management. Developed by Intel under rigid mobile and embedded platform standards, this QM77 Express Platform Controller Hub (PCH) unifies high-speed storage interfaces, native digital display outputs, and expansive PCIe expansions into a single low-power silicon architecture. It minimizes interface communication latencies, providing the deterministic data transit loops required for critical automation computing motherboards, industrial ATMs, and medical servers.
- Integrated SATA 6 Gb/s controllers for rapid solid-state storage data links
- Native SuperSpeed USB 3.0 support dropping peripheral access bottlenecks
- Compact FC-BGA989 package layout optimizing localized thermal dissipation
Key Performance Advantages
SuperSpeed I/O Hub
Implements native USB 3.0 hardware controllers alongside high-bandwidth SATA configurations, significantly increasing localized pipeline speeds without interface errors.
PCI Express Lane Flexibility
Features integrated PCIe structural lanes to route data pipelines to secondary graphics blocks or interface network controllers with minimum bus contention.
Intel vPro™ Execution
Supports hardware-assisted monitoring technologies and active management parameters, locking secure system-level integrity across distributed stations.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Intel Corporation |
| Part Number (MPN) / S-Spec | BD82QM77 SLJ8A |
| Device Family | Intel QM77 Express Mobile Chipset (Panther Point) |
| Device Type | PCH (Platform Controller Hub) |
| Supported SATA Matrix | SATA 3.0 (6 Gb/s) and SATA 2.0 (3 Gb/s) Ports Interface |
| USB Ports Layout | Integrated Native USB 3.0 Ports (Up to 5 Gb/s Signaling rate) |
| PCI Express Revision | Supports standard PCI Express Gen 2.0 Configurations |
| Package / Case Form | FC-BGA989 / BGA989 (Flip-Chip Ball Grid Array Matrix) |
| Thermal Design Power (TDP) | 4.1 W Low-Power Architectural Constraint Limits |
| Advanced Technologies | Intel vPro Platform, Anti-Theft, Rapid Storage (RAID 0/1/5/10) |
Versatile Hardware Applications
- Industrial Motherboards: Core systemic logic hub for rugged Single Board Computers (SBC) and COM Express boards.
- Embedded IPC Workstations: Coordinates high-speed I/O transactions inside factory automated machinery panels.
- Specialized Media Terminals: Direct bus management for secure banking ATMs, kiosks, and medical scanners.
- Legacy System Maintenance: Serves as an ideal drop-in replacement path for classic Intel mobile platform lines.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
