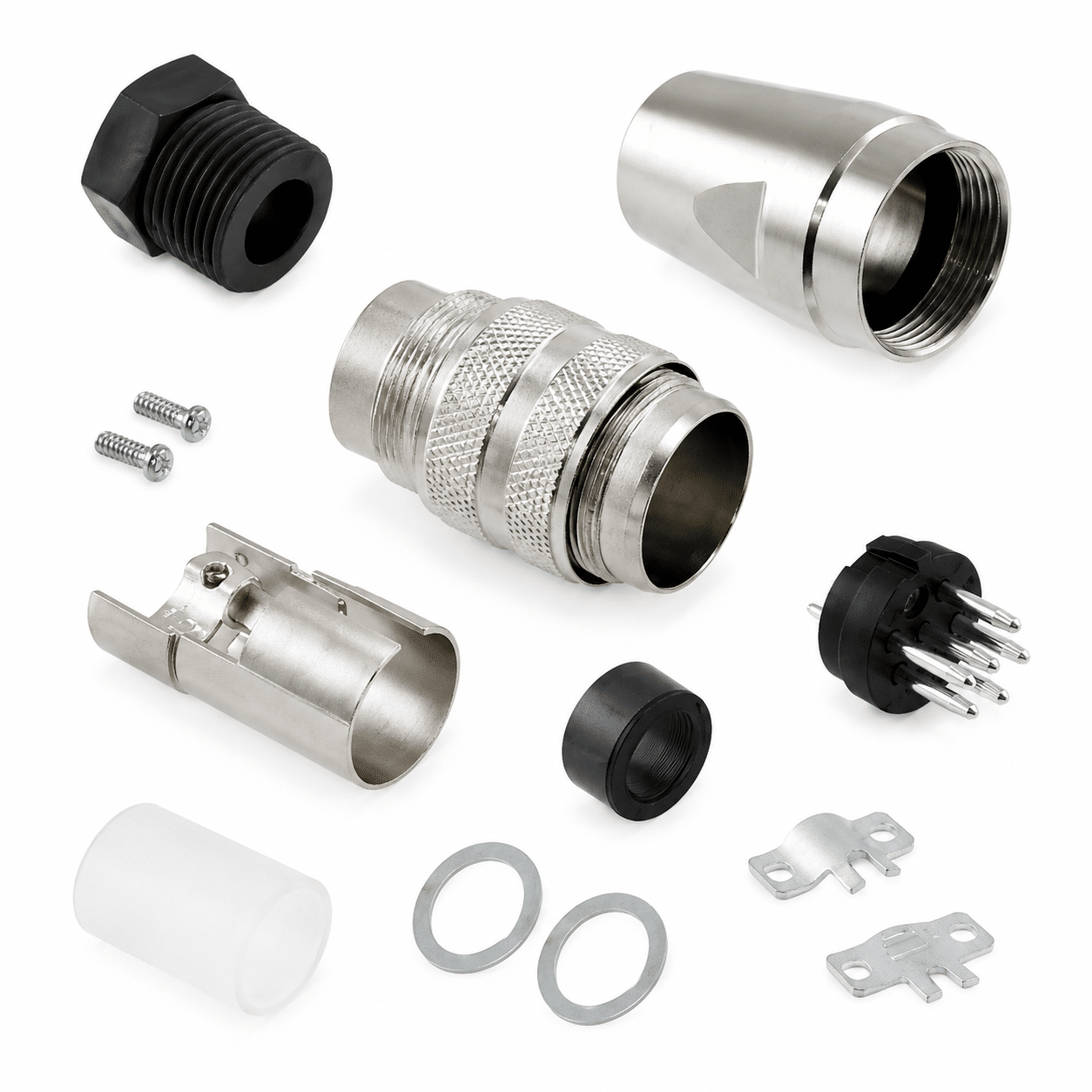

C09131H0061002 M16 Connector
IEC 61076-2-106 Standardization meets IP67 Shielding Security – The Professional 6-Position Male Cable Plug Choice for Industrial Automation Logic.
// M16 Size C091 Series 6-Way Die-Cast Metal Shell Portfolio
The Industrial Circular Connectivity Advantage
The C09131H0061002 represents an elite modular benchmark for high-performance board-to-cable and wire-to-wire signal routing under intensive factory floor constraints. Engineered by Amphenol under the globally recognized C091 industrial standard matrix, this straight M16 cable plug accommodates 6 high-conductivity silver-plated male pin contacts. Utilizing a robust nickel-plated zinc die-cast housing and a premium internal 360-degree shielding ring, it establishes deterministic data paths secure from external high-frequency EMI noise induction.
- 6-Position symmetrical geometry supporting accurate multi-channel link control
- Full metal thread locking ring ensuring superior mechanical pull-out prevention
- Integrated rubber cable gland strain relief providing steady internal moisture seals
Key Performance Advantages
360° Comprehensive EMI Shield
The solid zinc die-cast outer casing creates a complete Faraday attenuation layer, neutralizing localized magnetic disruptions in heavy motor drives.
IP67 Ingress Certification
Equipped with precision-fit internal elastomeric seals, completely barring water jet washdowns and fine dust particles during processing cycles.
Silver-Plated Contacts
Premium copper alloy base finished with heavy silver plating matrix ensures minimal linear contact resistance, maintaining absolute wave purity.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Amphenol Commercial Products / Amphenol LTW |
| Part Number (MPN) | C09131H0061002 (Suffix variants include -2U) |
| Product Series Family | C091 Series (Standardized M16 Industrial Class) |
| Connector Component | Male Cable Plug Assembly / Straight Inline Receptacle |
| Number of Positions | 6 Positions / 6 Pin Matrix Array |
| Mating Locking Style | Screw Thread Coupler (IEC 61076-2-106 Certified Alignment) |
| Contact Finish Plating | Premium Silver (Ag) over Copper Alloy Underplate Layout |
| Shell Construction material | Zinc Die-Cast Housing / Satin Nickel Plated Coating |
| Current Rating Max | Up to 5.0 Amps Continuous per Contact Circuit Node |
| Temperature Spectrum | Rigid Environmental Working Range (-40°C to +100°C) |
Versatile Industrial Applications
- Factory Floor Automation: Core feedback lines for robotic joints, multi-axis servo motors, and absolute sensor arrays.
- Medical Diagnostic Hardware: Reliable instrumentation interconnects requiring strict shielding metrics and clean signal loops.
- Control Architecture Networks: Interfaces for PLC distribution boxes, pressure controllers, and pneumatic switch nodes.
- Test & Laboratory Metrology: Heavy-duty data logger cable links capable of sustaining consistent physical engagement loops.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
