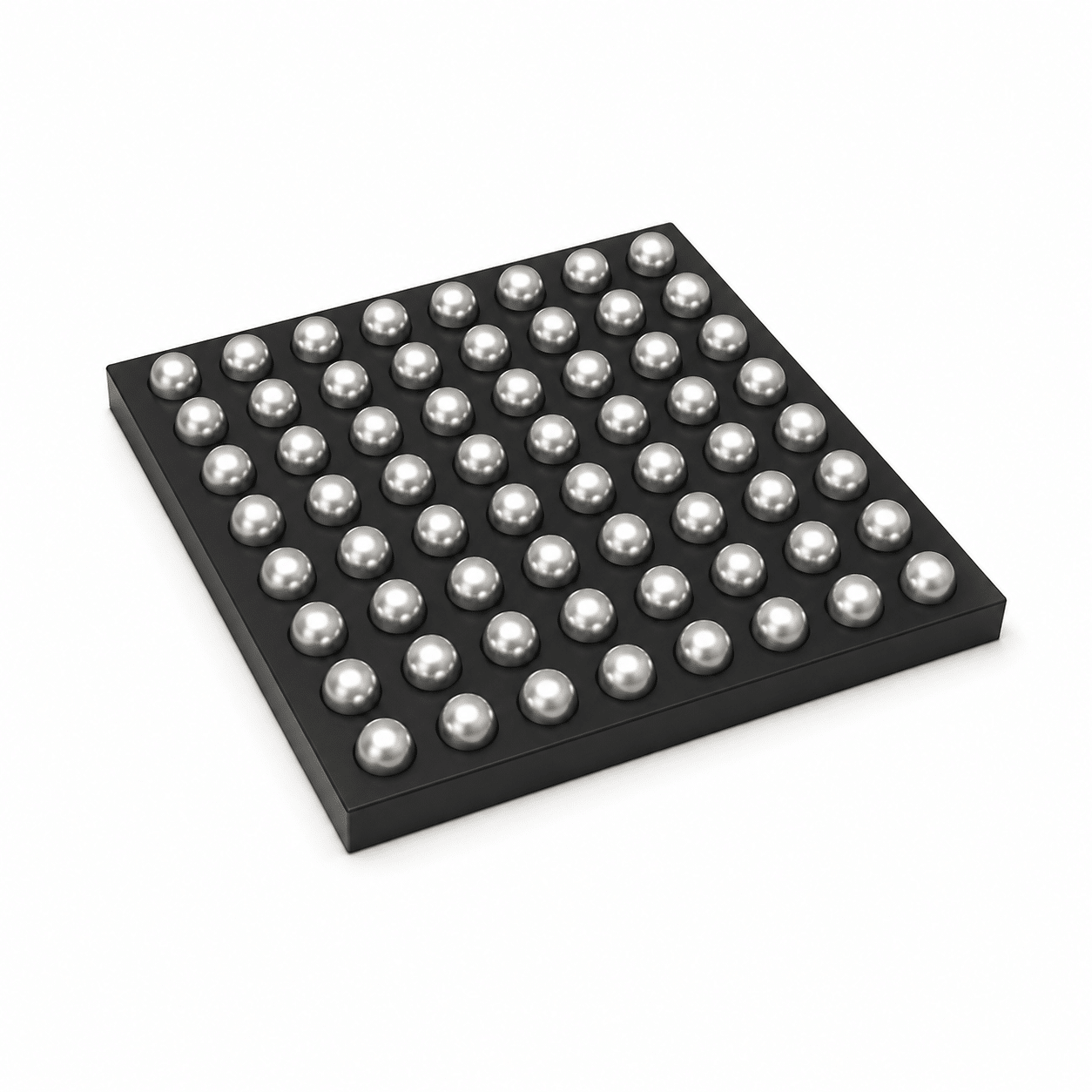

CY62147DV30LL-70BVI MoBL™ SRAM
4Mb Storage Density meets 70ns Access Speed – The Professional Ultra-Low Power SRAM Choice for Rugged Embedded Battery Systems.
// High-Reliability 3.0V Low-Power Base 48-Ball VFBGA Matrix Portfolio
The Ultra-Low Standby Power Storage Advantage
The CY62147DV30LL-70BVI represents a premier flagship single-chip asynchronous volatile storage solution for high-density, space-constrained data processing units demanding absolute power budget efficiency and high hardware reliability. Engineered by Cypress (Infineon Technologies) inside their industry-standard MoBL™ (More Battery Life) silicon framework, this 4-Megabit static RAM manages system bus allocations flawlessly without constant refresh clock cycles. Housed in an incredibly small 48-ball VFBGA package layout footprint, it secures pure, deterministic cache telemetry loops and completely removes battery-drain hazards.
- 4-Megabit dense memory array organized as 256K words by 16 bits configuration
- 70ns Maximum access address speed delivering optimized low-latency timing parameters
- Advanced byte-enable logic allowing independent upper-byte and lower-byte memory control
Key Performance Advantages
MoBL™ Technology
Utilizes special advanced circuitry loops to dramatically reduce standby current levels, vastly extending battery operating lifespans inside portable hardware setups.
70ns Fast Access
Maintains a highly responsive asynchronous read/write timeline cycle, matching high-frequency direct memory interfacing requirements cleanly.
48-Ball VFBGA Form
Housed in a standard space-saving Very Fine Pitch Ball Grid Array profile layout, optimizing internal trace routing density on complex multi-layer PCBs.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Infineon Technologies / Cypress Semiconductor |
| Part Number (MPN) | CY62147DV30LL-70BVI |
| Product Category | High-Performance Asynchronous SRAM (静态随机存取存储器) |
| Memory Density | 4 Megabit (4 Mb Array Mapped as 256K x 16-bit Structure) |
| Max Access Time | 70 ns Maximum Speed Cycle Timing Boundary |
| Core Supply Rails | 2.2V to 3.6V Extended Operating Supply Range Profile |
| Current Draw (Standby) | Ultra-Low MoBL Microampere Consumption Limits |
| Control Pin Logic | Byte High Enable (BHE) and Byte Low Enable (BLE) Architecture |
| Package / Case Form | VFBGA-48 Package (Very Thin Fine Pitch Ball Grid Array SMT Layout) |
| Temperature Window | Industrial Operating Temperature Spectrum Ranges (-40°C to +85°C) |
Versatile Low-Power Applications
- Industrial Automations: Highly dependable data cache buffering for programmable logic controllers (PLCs) and remote telemetry terminal units.
- Handheld Terminals: Primary low-power working registers inside rugged field barcode scanners, dataloggers, and GPS tracking nodes.
- Medical Diagnostics: Safe non-volatile buffer infrastructure for patient monitoring screens and portable testing hardware equipment.
- Telecom Infrastructure: Provides deterministic data exchange corridors inside base stations and smart network router sub-boards.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
