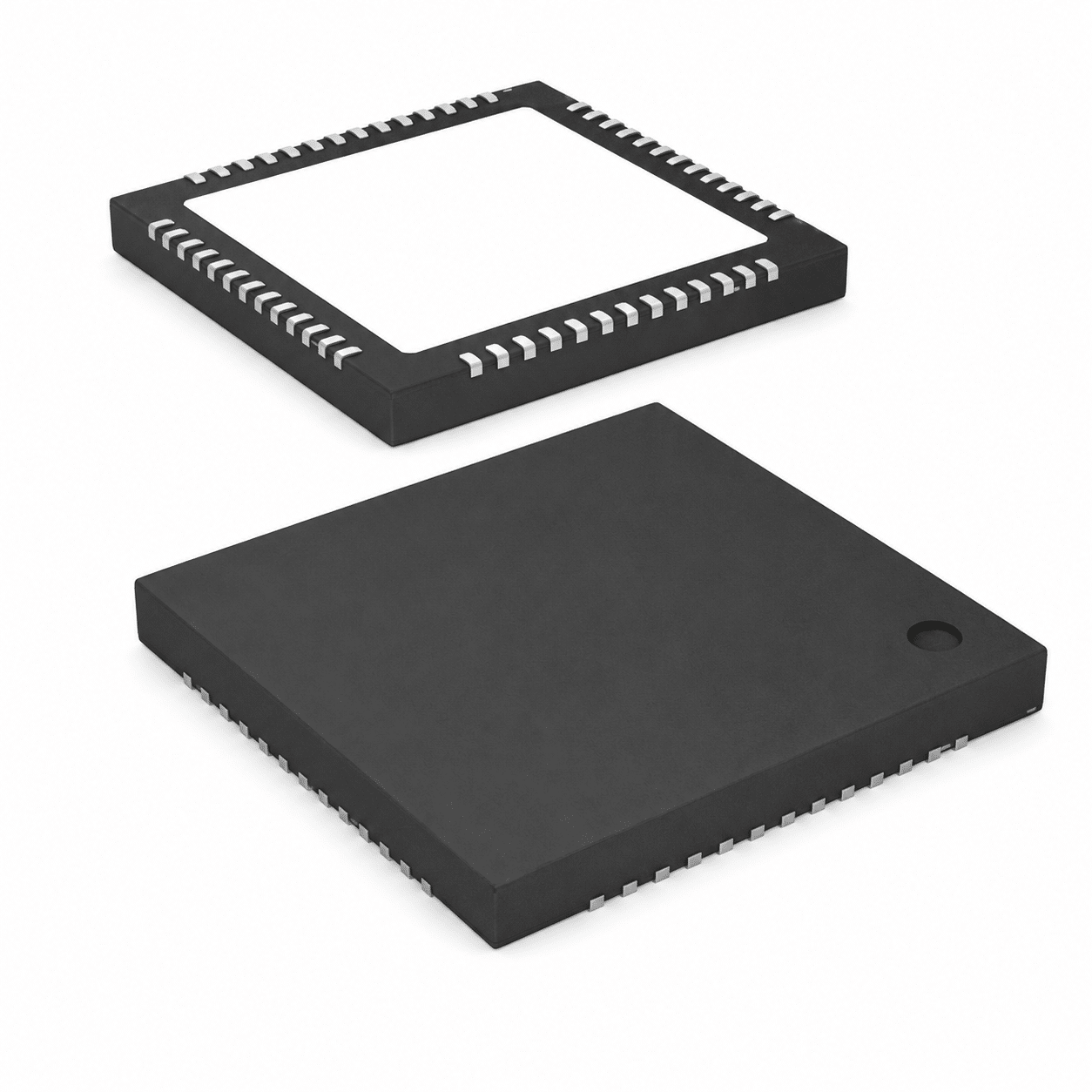

CY7C68013A-56LTXC USB Controller
480 Mbps High-Speed Transceiver meets 8051 Core – The Professional EZ-USB FX2LP™ Silicon Choice for High-Bandwidth Data Bridging.
// Intelligent Programmable GPIF Architecture 56-Pin QFN Portfolio
The High-Speed USB Bus Bridging Advantage
The CY7C68013A-56LTXC represents a premier flagship modular solution for space-constrained, high-throughput external logic interfaces demanding absolute data transmission alignment and hardware programmability. Engineered by Cypress (Infineon Technologies) inside their industry-standard EZ-USB FX2LP™ family, this integrated single-chip peripheral architecture controls raw parallel buses flawlessly without burdening your host processing system. Housed in a low-profile 56-pin QFN package footprint, it secures pure, deterministic communication corridors and cuts off systemic processing latency hazards.
- USB 2.0 480 Mbps high-speed physical layer transceiver providing maximum throughput pipelines
- Integrated enhanced 8051 processor core running smoothly up to 48 MHz for local device management
- Patented General Programmable Interface (GPIF) establishing direct high-speed hardware bus connections
Key Performance Advantages
480 Mbps Line Rate
Integrates an optimized on-chip high-speed physical layout transceiver (PHY), driving massive data stream uploads seamlessly without external serial bridge components.
Flexible Master GPIF
Allows glueless glueless parallel hardware connections directly into common microprocessors, high-density FPGAs, and external FIFO buffer arrays.
16KB RAM Integration
Features built-in code and data storage blocks, serving as a highly responsive data buffering matrix for smooth endpoint configuration handshakes.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Infineon Technologies / Cypress Semiconductor |
| Part Number (MPN) | CY7C68013A-56LTXC |
| Product Category | EZ-USB FX2LP™ High-Speed Peripheral Controllers Series |
| MCU Core Technology | Enhanced Industrial 8051 Microcontroller (Operating up to 48 MHz) |
| USB Specification | USB 2.0 Compliant Signaling (Supports 480 Mbps High-Speed / 12 Mbps Full-Speed) |
| Integrated RAM Size | 16 Kilobytes (16 KB Code/Data Storage Buffer Matrix) |
| Interface Architecture | General Programmable Interface (GPIF) and 8/16-bit Parallel Databus |
| Core Supply Rails | 3.3 VDC Single Power Operation Base |
| Package / Case Form | QFN-56 Package (Very Thin Quad Flat No-Lead SMT Layout, 8x8mm) |
| Temperature Window | Standard Performance Commercial Spectrum Ranges (0°C to +70°C) |
Versatile Interface Applications
- Industrial Data Acquisition: High-density standalone telemetry conversion blocks, logic analyzer interfaces, and multi-channel recorders.
- High-Speed Imaging Systems: Transmits deterministic uncompressed real-time video streaming data arrays inside industrial camera boxes.
- Embedded Hardware Toolings: The global standard choice for microcontroller hardware emulators, JTAG debuggers, and chip programmers.
- Custom Mass Storage Bridges: Unlocks smooth data translation pathways connecting modern FPGAs directly to a host USB platform terminal.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
