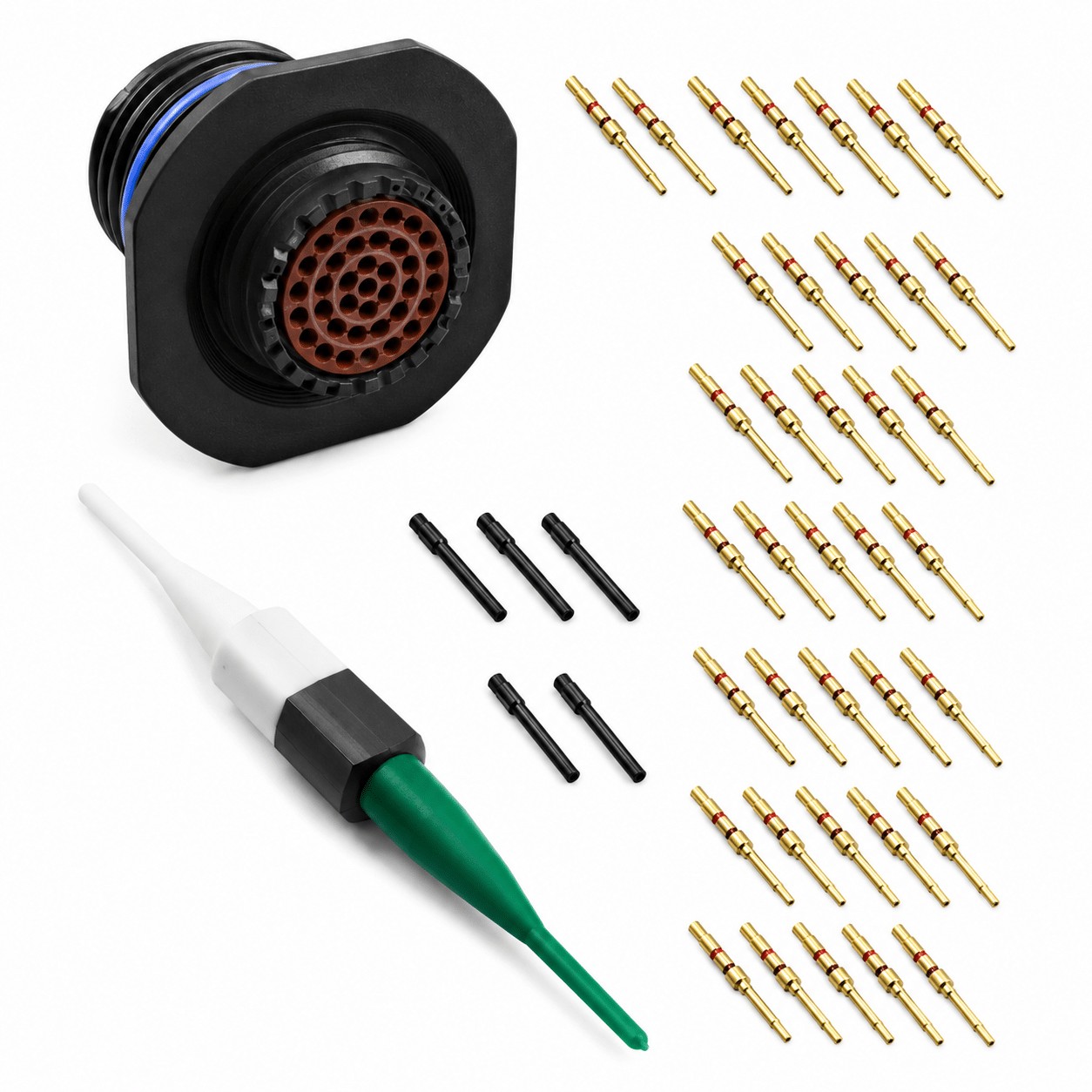

D38999/24WD35PN Jam Nut Connector
MIL-DTL-38999 Series III Standards meet 37-Pin High Density – The Professional Jam Nut Panel Mount Receptacle Choice for Aerospace & Defense Gridways.
// High-Density 37-Position Olive Drab Cadmium Size-15 Shell Portfolio
The High-Density Panel Interface Advantage
The D38999/24WD35PN represents an elite military-grade interconnect solution engineered for dense through-panel cabling architectures. Developed by Amphenol Aerospace under full compliance with rigid MIL-DTL-38999 Series III guidelines, this single-hole jam nut receptacle integrates 37 high-density, gold-plated pin contacts inside an aluminum size-15 shell framework. Utilizing a triple-start threaded coupling pattern and full 360-degree ground fingers, it delivers pure, noise-free signal integrity and ultimate shielding attenuation loops under heavy physical shock arrays.
- 37-Pin ultra-high density layout saving critical module panel real-estate
- Jam nut thread locking ring providing streamlined single-hole wall integration
- Scoop-proof quick coupling design preventing accidental manual terminal pin damage
Key Performance Advantages
Full 360° RFI Shielding
Olive drab cadmium over electroless nickel plating provides superior salt-fog protection up to 500 hours while neutralizing localized electromagnetic field interferences.
Single-Hole Jam Nut
Streamlines through-wall mounting layouts with a rear-hex locking system, eliminating secondary screw flange mounting patterns and reducing panel weight points.
37-Position Array
Houses a dense configuration of size-22D high-conductivity gold-finished crimp pin contacts, allowing broad data telemetry arrays to transit smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Amphenol Aerospace Operations |
| Part Number (MPN) | D38999/24WD35PN |
| Standard Compliance | MIL-DTL-38999 Series III (Military Class Specification) |
| Connector Type | Jam Nut Panel Mount Receptacle Shell |
| Number of Positions | 37 Positions / Circuits Array |
| Contact Size / Gender | Size 22D Crimp Pin / Male Contacts with Gold Plating |
| Shell Size / Layout Code | Shell Size 15 (Military Code D) / 15-35 Insert Pattern Layout |
| Shell Material & Finish | Aluminum Alloy / Olive Drab Cadmium Plating (W Plating Code) |
| Polarization Keyway | N (Normal Polarization Keyway Orientation) |
| Temperature Window | Severe Operational Range Compliance (-65°C to +175°C) |
Versatile Rugged Applications
- Military Aerospace Equipment: Core wall-mount panel link for flight computers, cockpit dashboards, and avionics control maps.
- Ground Tactical Systems: Panel routing for command center shelters and high-shock armored vehicles.
- Marine Subsea Terminals: Resilient navigation panel junctions demanding excellent protection against intense saltwater environments.
- Advanced Communication Matrices: High-density data stream branching networks, field radars, and electronic warfare nodes.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
