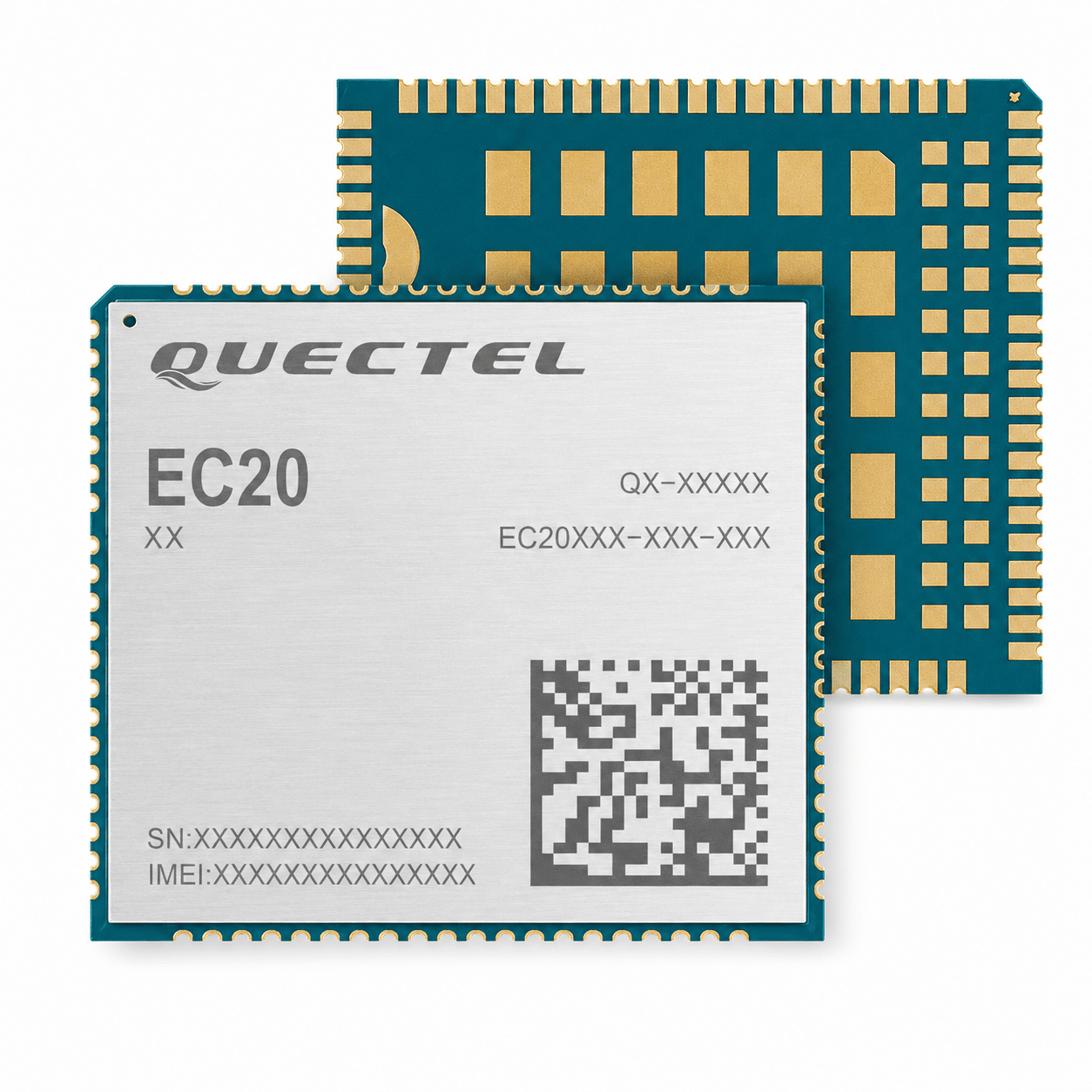

Quectel EC20 LTE Module
High-Speed LTE Cat 4 Performance meets Advanced LGA Layout – The Professional Industrial IoT Wireless Cellular Silicon Choice.
// 150 Mbps Downlink Infrastructure High-Reliability Rugged LGA Portfolio
The Industrial Cellular Connectivity Advantage
The Quectel EC20-CEHD-LG represents a premier professional LTE Category 4 wireless communication solution engineered for space-constrained, rugged hardware architectures demanding absolute data throughput and backward-compatible cellular networking profiles. Developed inside Quectel’s advanced industrial M2M communication framework, this module processes high-speed 4G networking streams and multiple internet protocol data links flawlessly without system connection dropouts. Housed in a dense, thermally enhanced LGA package form factor, it secures pure, deterministic communication data pipelines and completely cuts off systemic board-level wireless integration hazards.
- High-speed LTE Cat 4 architecture delivering robust 150Mbps downlink and 50Mbps uplink parameters
- Advanced MIMO (Multiple-Input Multiple-Output) technology maximizing link stability and signal metrics smoothly
- Standard SMT LGA hardware layout maximizing cross-platform manufacturing integration boundaries safely
Key Performance Advantages
LTE Cat 4 Bandwidth
Delivers ultra-stable broadband cellular data speeds up to 150Mbps, optimizing data pipelines efficiently for real-time edge computing nodes.
MIMO Receiver Engine
Utilizes integrated antenna diversity channels, completely safeguarding data link integrity against signal fading traps in crowded spaces.
Compact LGA Package
Housed in an advanced SMT Land Grid Array package format, significantly maximizing available PCB routing layouts with reliable thermal dissipation.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Quectel Wireless Solutions |
| Part Number (MPN) | EC20-CEHD-LG (EC20 Series Architecture) |
| Product Category | High-Performance LTE Category 4 Wireless Communication Core Modules |
| Data Rates Profile | Maximum 150 Mbps Downlink / Maximum 50 Mbps Uplink Throughput Loops |
| Network Protocol Support | TCP, UDP, PPP, FTP, HTTP, NTP, PING, QMI, and SMS Data Telemetry Protocols |
| Interface Protocols | USB 2.0 High-Speed, Digital Audio (PCM), I2C, UART, and SDC Interfaces Matrix |
| Driver Compatibility | Embedded USB Drivers for Windows, Linux, and Android Operating Systems |
| Package / Case Form | LGA Package Form Factor (Standard Compact SMT Surface Mount Profile) |
| Temperature Window | Industrial-Grade Extended Operating Range (-40°C to +85°C) |
| Component Status | Production Quality Grade Active Commercial Inventory Profile Allocation |
Versatile Industrial Cellular Applications
- Industrial Routers & Gateways: Primary M2M network core driving robust cellular backhauls, remote site VPNs, and plant telemetry gateways safely.
- Smart Metering & Grids: Delivers deterministic data exchanges required for electricity meters, intelligent sub-stations, and water grid sensors.
- Commercial Kiosks & Vending: Powers outdoor interactive advertising systems, automated ticket machines, and terminal POS links smoothly.
- Remote Environmental Monitors: Optimizes power-constrained electronic layouts needing long-term stable cellular connections in remote outposts.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
INTEGRATED CELLULAR M2M CORE SOLUTIONS // DIRECT SOURCE ARCHITECTURE
