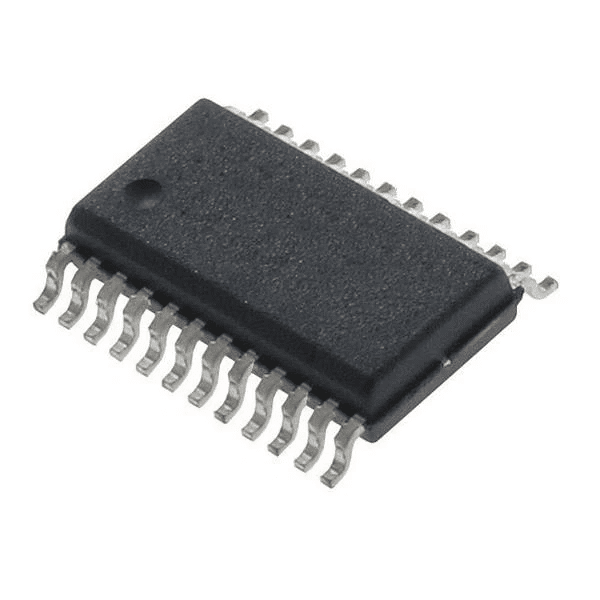

EFM8BB10F8G-A-QSOP24 MCU
High-Accuracy 12-Bit ADC meets 25 MIPS Pipelined Core – The Professional Mixed-Signal 8-Bit Microcontroller Choice for High-Volume Industrial Controls and Smart Consumer Hardware.
// Busy Bee Core Component High-Speed Analog 24-Pin QSOP Portfolio
The High-Efficiency Compact Busy Bee Advantage
The EFM8BB10F8G-A-QSOP24 represents a premier professional highly integrated 8-bit mixed-signal microcontroller solution engineered for space-constrained, budget-critical hardware architectures demanding absolute instruction execution efficiency and precise analog tracking profiles. Built on Silicon Labs’ advanced pipelined 8051 core core framework running up to 25MHz, this chip processes continuous automated tracking logic, high-speed sensory interfaces, and localized system monitoring loops flawlessly without performance lagging hazards. Housed in an industry-standard 24-pin QSOP footprint, it secures pure, deterministic software execution paths and completely cuts off external component system overhead bottlenecks.
- Optimized 8 Kilobytes (8KB) of in-system programmable flash flash matched with 512 Bytes of high-stability RAM
- Integrated true 12-bit analog-to-digital converter (ADC) delivering extreme precision data loops safely
- Comprehensive interface matrix including hardware-assisted SMBus/I2C, SPI, and enhanced UART serial links
Key Performance Advantages
12-Bit Precision ADC
Features an advanced multi-channel analog-to-digital converter loop, acquiring fine sensor signals with maximum reliability cleanly.
25 MIPS Core Throughput
Deploys a pipelined core structure where 70% of instructions execute in 1–2 clock cycles, boosting execution efficiency parameters safely.
24-Pin QSOP Enclosure
Housed within a compact small-outline format with a tight pin pitch, optimizing terminal board spacing and routing breakouts smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Silicon Laboratories (Premium EFM8 Embedded Line) |
| Part Number (MPN) | EFM8BB10F8G-A-QSOP24 (Busy Bee 1 Matrix) |
| Core Processor Core | Pipelined CIP-51 8-Bit Core System (8051 Architecture Extension) |
| Maximum Core Frequency | 25 MHz Operating Speed Parameters / 25 MIPS Yield Rate |
| Program Memory Size | 8 Kilobytes (8KB Flash Flash Array for secure code storage) |
| RAM Buffer Size | 512 Bytes High-Stability Core Internal RAM Matrix |
| Analog Peripheral Blocks | 12-Bit Analog-to-Digital Converter (ADC), Integrated Internal Voltage Reference |
| Timer & PWM Hardware | 3-Channel Programmable Counter Array (PCA), 4 x Generic 16-Bit Timers |
| Package / Case Form | 24-QSOP package (Plastic Quarter Small Outline Package Layout Frame) |
| Component Status | Production Quality Grade Active Commercial Hardware Allocation Portfolio |
Versatile Mixed-Signal System Applications
- Smart Kitchen Appliances: Primary control core driving small appliances, blenders, and sensor-based heating modules safely.
- Industrial Asset Sensors: Delivers deterministic data processing profiles needed for digital environmental sensors and gas transceivers smoothly.
- Motor Power Governors: Handles real-time multi-channel PWM switching tracks via the integrated 3-channel PCA logic cleanly.
- Smart Home Controllers: Optimizes long-term operational parameter parameters inside localized light switches and smart security nodes.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
