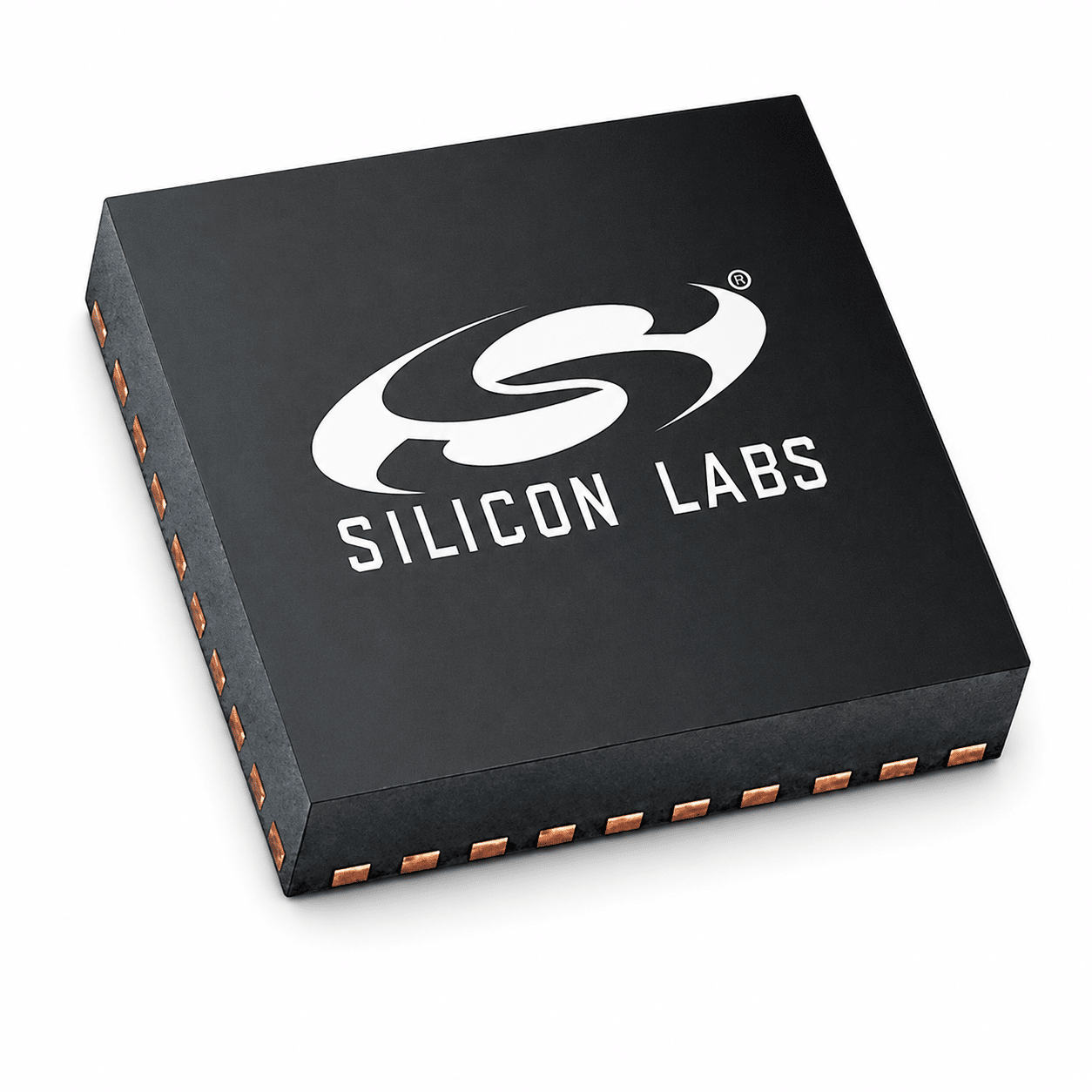

EFR32MG21 Wireless SoC
1024KB Mass Flash meets 80MHz ARM Cortex-M33 Core – The Premier Multi-Protocol IoT Wireless Silicon Choice for Zigbee, Thread, and Bluetooth Low Energy Modules.
// Secure Vault Hardware Cryptography Advanced 2.4GHz RF 32-QFN Portfolio
The Flagship Multi-Protocol Smart IoT Advantage
The EFR32MG21A010F1024 represents a premier professional multi-protocol wireless mesh networking SoC solution engineered for space-constrained, high-performance edge hardware architectures demanding absolute link stability and state-of-the-art secure vault protection profiles. Developed inside Silicon Labs’ advanced Mighty Gecko Series 2 framework, this system processes continuous concurrent 2.4GHz RF streams for Zigbee, Thread, and Bluetooth Low Energy (BLE) flawlessly without code execution latency hazards or firmware stack memory barriers. Housed in a compact, thermally enhanced 32-pin QFN package format, it secures pure, deterministic software execution loops and completely cuts off remote firmware vulnerability threats.
- Massive 1024 Kilobytes (1MB) of on-chip flash memory coupled with 96 Kilobytes of high-stability RAM
- High-performance 80MHz ARM Cortex-M33 processing core featuring dedicated DSP execution extensions safely
- Integrated high-power RF transceiver up to +20 dBm tx parameters optimizing indoor signal penetration boundaries
Key Performance Advantages
Multi-Protocol Connectivity
Supports Zigbee 3.0, Thread, Matter, and BLE 5.2 concurrency on a single silicon die, simplifying dynamic mesh architecture updates cleanly.
Secure Vault Mid Technology
Integrates state-of-the-art monolithic hardware crypto engines, secure boot mechanisms, and anti-tamper shields to prevent malicious intrusion lines safely.
Compact 4x4mm QFN-32
Housed inside an ultra-dense fine-pitch leadless surface-mount matrix package, maximizing component layout optimization parameters smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Silicon Laboratories (Premium Energy Micro Core Portfolio) |
| Part Number (MPN) | EFR32MG21A010F1024 (Mighty Gecko Series 2 Configuration) |
| Product Category | High-Performance Multi-Protocol 2.4GHz Mesh Wireless Communication SoCs |
| Core Processor Type | 32-Bit ARM® Cortex®-M33 Core Architecture with TrustZone Subsystem |
| Max Clock Speed Frequency | 80 MHz Maximum Continuous Operating Core Execution Speed Parameters |
| Memory Infrastructure | 1024 Kilobytes (1MB) On-Chip Code Flash + 96 Kilobytes System SRAM Matrix |
| RF Link Protocol Support | Zigbee 3.0, Thread, Matter Connectivity, Bluetooth Low Energy 5.2, and Custom 2.4GHz |
| Output TX RF Power | Programmable Integrated Power Amplifier up to +20 dBm Signal Force Calibration |
| Package / Case Form | QFN-32 Package (4mm × 4mm Plastic Thin Fine-Pitch Quad Flat No-Lead Layout) |
| Operating Temperature | Industrial Grade Extended Operational Window Range (-40°C to +125°C) |
Versatile Smart Wireless Applications
- Connected Smart Lighting: Primary controller silicon executing localized routing protocols and dimming matrix loops over Zigbee/Matter arrays safely.
- Smart Home Gateways: High-bandwidth multiprotocol transceivers acting as robust central hubs linking Bluetooth peripherals and mesh endpoints smoothly.
- Building Automation Controllers: Handles deterministic sensor networks, industrial relay monitoring nodes, and automated building sensors cleanly.
- Advanced Commercial Metering: Optimizes long-range data tracking performance inside intelligent power routers needing absolute tamper protections.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
HIGH-PERFORMANCE MIGHTY GECKO SERIES 2 SOLUTIONS // DIRECT SOURCE FACTORY ARCHITECTURE
