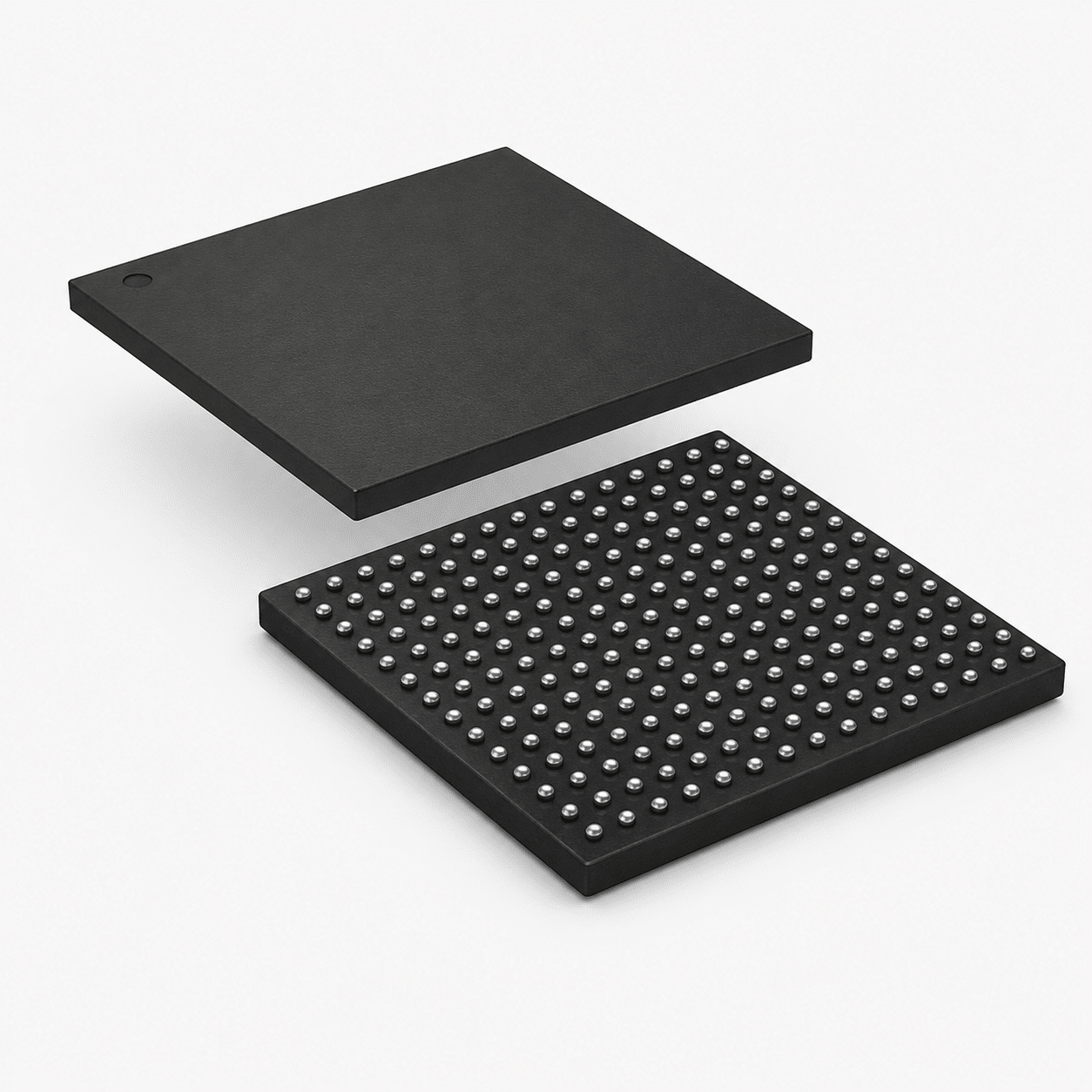

EP4CE10F17C8N Cyclone IV E FPGA
High-Density Programmable Logic meets Low Power – The Professional Cyclone IV E FPGA Choice for Parallel Processing & High-Speed System Integration.
// High-Efficiency 10.3K Logic Elements Architecture
The Programmable System Advantage
The EP4CE10F17C8N represents a cornerstone solution for cost-sensitive, power-optimized digital design. Engineered by Intel Altera under stringent architectural protocols, this Cyclone IV E FPGA provides 10,320 flexible logic elements paired with a robust 414 Kbits internal RAM matrix. Housed in a dense, low-inductive FBGA256 package footprint, it delivers massive parallel processing throughput across 179 configurable user I/O ports, successfully eliminating bus bottlenecks inside communication nodes and automated factory infrastructure.
- 10,320 high-efficiency Logic Elements (LEs) for custom hardware gating
- Up to 179 User I/O pins optimized for flexible multi-voltage level shifting
- Embedded multipliers and on-chip PLLs ensuring absolute timing synchronization
Key Performance Advantages
Low-Power Silicon
Built on an optimized 60-nm low-power process technology, minimizing static and dynamic power drain while curbing localized logic board heat generation.
414Kb Embedded RAM
Houses dense integrated memory blocks that allow dual-port buffering pipelines and customized FIFO structures to loop data with deterministic execution speeds.
Deterministic Timing
Backed by internal phase-locked loops (PLLs) and global clock networks to perfectly align real-time communication frequencies and prevent bus racing hazards.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Intel Altera |
| Part Number (MPN) | EP4CE10F17C8N |
| Device Family | Cyclone IV E FPGA Series |
| Logic Elements (LEs) | 10,320 Logic Elements |
| Embedded Memory (RAM) | 414 Kbits (414 KB Block RAM Matrix) |
| Number of LABs / CLBs | 645 Logic Array Blocks |
| Number of User I/Os | 179 Configurable User I/O Ports |
| Package / Case Form | FBGA-256 / F17 Footprint (Fine Ball Grid Array, 17mm x 17mm body) |
| Speed Grade Designation | -8 Speed Optimization Grade |
| Temperature Window | 0°C to +85°C Commercial Operational Spectrum Range |
Versatile Logic Applications
- Industrial Automation: Manages real-time multi-axis servo controllers, automated PLC boards, and factory cameras.
- Telecommunications: Establishes high-speed protocols bridging, data packet framing, and interface multiplexing lines.
- Digital Signal Processing: Processes complex algorithmic math matrices using internal hardware-driven multipliers.
- System Glue Logic: Consolidates dense discrete controller components into a single, low-power secure programmable platform.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
