描述

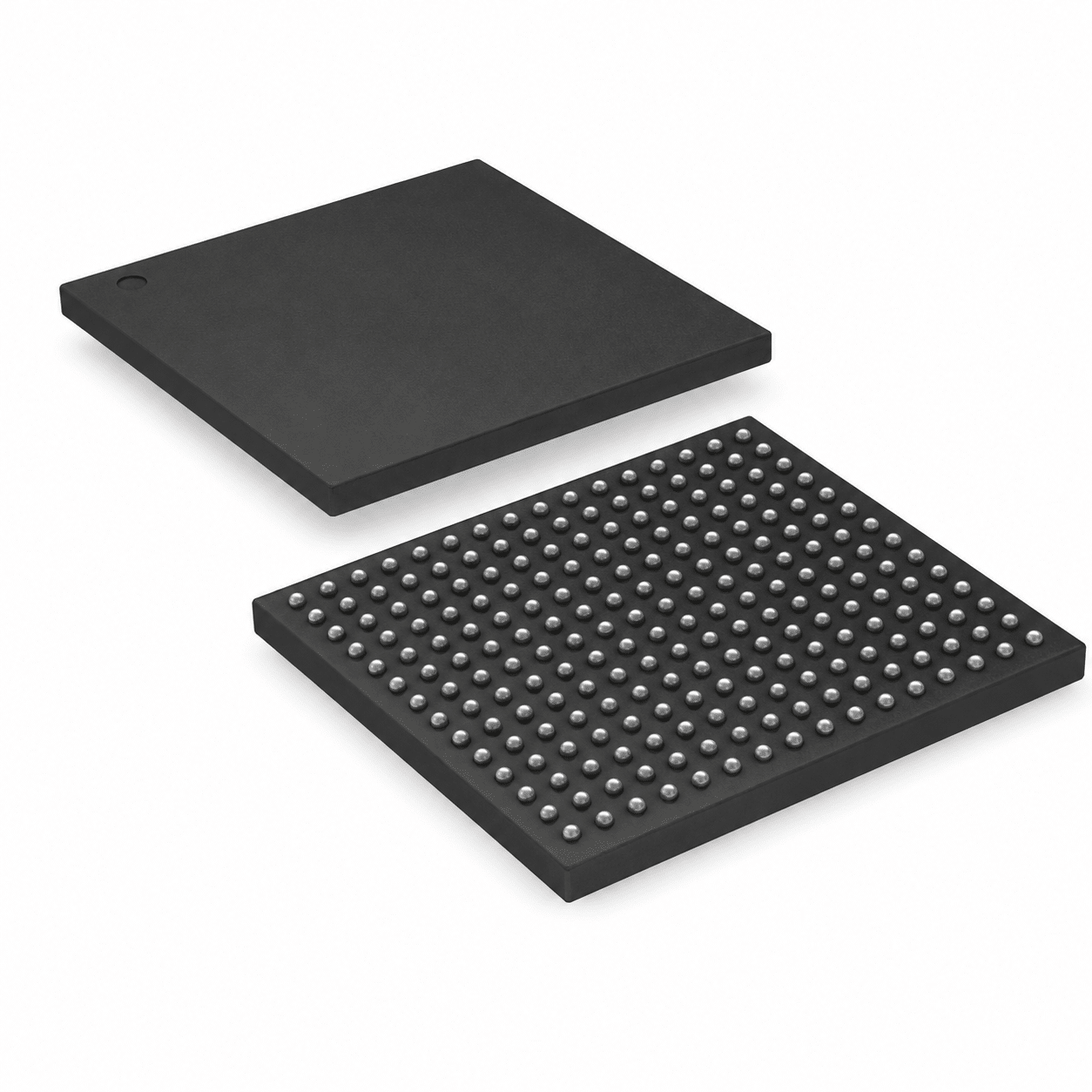

EP4CE22F17C8N Cyclone IV E FPGA
Enhanced Logic Capacity meets Low Power – The Professional Cyclone IV E FPGA Choice for High-Density Parallel Computing & Signal Matrix Bridging.
// High-Efficiency 22.3K Logic Elements Architecture
The High-Capacity Programmable Advantage
The EP4CE22F17C8N represents an upgraded flagship solution for logic-intensive embedded systems requiring a tight thermal footprint. Engineered by Intel Altera, this Cyclone IV E device steps up system integration by offering 22,320 flexible logic elements and an expanded 608 Kbits block RAM pool. Housed in a compact, low-inductive FBGA256 package geometry, it secures massive parallel algorithmic processing and deterministic clock synchronization across 153 programmable user I/O ports without bus starvation risks.
- 22,320 advanced Logic Elements (LEs) for dense algorithmic partitioning
- 153 Configurable User I/O ports optimized for independent voltage rail drive
- Integrated hardware multipliers and global PLL networks ensuring jitter-free tracking
Key Performance Advantages
翻倍逻辑算力 / 22.3K LEs
Provides 22,320 high-efficiency logical cells, accommodating expanded intellectual property (IP) blocks and dense state machines within a single package footprint.
608Kb Block RAM Pool
Houses expanded internal memory matrix blocks, allowing smooth dual-port FIFO streams and large video/telemetry packet buffering routines.
Deterministic Clock Loops
Backed by 4 integrated on-chip phase-locked loops (PLLs) to effectively synchronize multiple high-frequency logic domains and neutralize bus race hazards.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Intel Altera |
| Part Number (MPN) | EP4CE22F17C8N |
| Device Family | Cyclone IV E FPGA Architecture Series |
| Logic Elements (LEs) | 22,320 Logic Elements |
| Total Embedded RAM | 608 Kbits (608 KB Internal Block RAM) |
| Number of LABs / CLBs | 1,395 Logic Array Blocks |
| Number of User I/Os | 153 Configurable User I/O Ports |
| Package / Case Form | FBGA-256 / F17 Footprint (Fine Ball Grid Array, 17mm x 17mm package) |
| Speed Grade Designation | -8 Speed Optimization Grade |
| Temperature Window | 0°C to +85°C Commercial Operational Spectrum Compliance |
Versatile Logic Applications
- Advanced Image Processing: Manages real-time filtering matrices inside medical equipment and industrial video switches.
- Industrial Automation: Runs deep mathematical algorithm loops inside complex multi-axis CNC controllers and PLC hubs.
- Telecommunications Gateways: Controls packet data framing, serial multiplexing, and protocol protocol translation lines.
- System Hardware Consolidation: Merges multiple disparate microcontrollers and discrete logic blocks onto one single secure chip canvas.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
