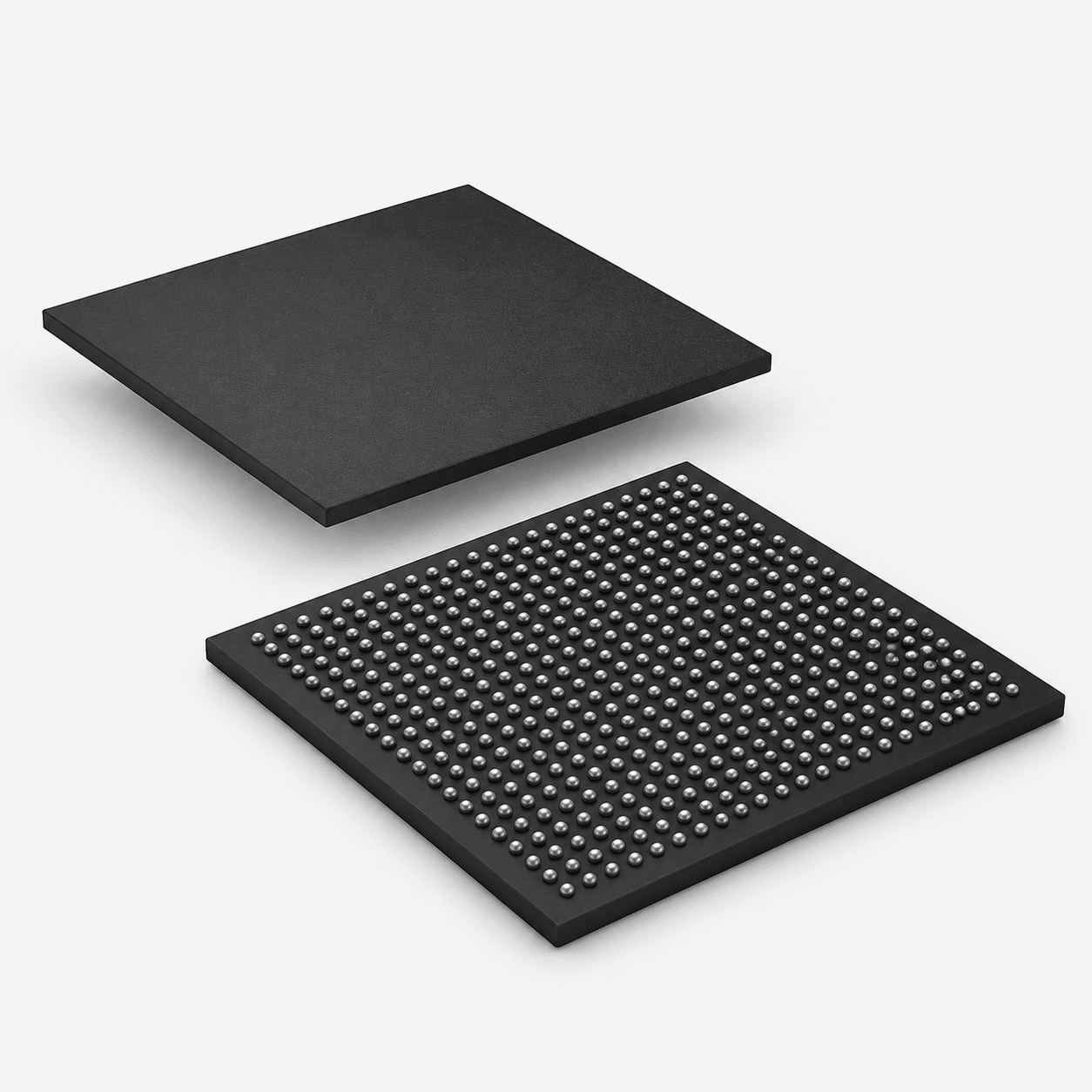

EP4CE55F23C8N Cyclone IV E FPGA
High-Density Logic Matrix meets Low Power – The Professional Cyclone IV E FPGA Choice for Advanced Parallel Computing & Complex Signal Routing.
// High-Capacity 55.8K Logic Elements Architecture
The High-Density Programmable Advantage
The EP4CE55F23C8N represents a premier flagship solution for logic-intensive embedded engineering systems requiring extensive algorithm scalability. Engineered by Intel Altera, this Cyclone IV E FPGA significantly scales system power-performance dynamics by providing 55,856 flexible logic elements alongside an expansive 2,396 Kbits block RAM pool. Housed in a low-inductive FBGA484 package layout, it secures massive parallel computing pathways across 324 programmable user I/O ports, successfully eliminating data bottlenecks inside advanced telecommunication nodes and medical imaging systems.
- 55,856 high-efficiency Logic Elements (LEs) for robust hardware partitioning
- 324 User I/O pins optimized for independent multi-voltage interface drive
- On-chip multipliers and advanced PLL networks ensuring jitter-free tracking
Key Performance Advantages
55.8K LEs High Density
Provides 55,856 logical cells, easily accommodating extensive custom IP cores, complex arithmetic math, and multi-state hardware machines inside a single footprint.
2,396Kb Embedded RAM
Houses a huge internal block RAM matrix, allowing smooth deep dual-port FIFO streams, real-time data caching, and large video frame buffering routines.
Massive 324 User I/O
Expands external interface capabilities with 324 programmable pins, backed by multi-frequency PLLs to stabilize wide bus interactions under intense EMI.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Intel Altera |
| Part Number (MPN) | EP4CE55F23C8N |
| Device Family | Cyclone IV E FPGA Architecture Series |
| Logic Elements (LEs) | 55,856 Logic Elements |
| Total Embedded RAM | 2,396 Kbits (2,396 KB Internal Block RAM Matrix) |
| Number of LABs / CLBs | 3,491 Logic Array Blocks |
| Number of User I/Os | 324 Configurable User I/O Ports |
| Package / Case Form | FBGA-484 / F23 Footprint (Fine Ball Grid Array Matrix) |
| Speed Grade Designation | -8 Speed Optimization Grade |
| Temperature Window | 0°C to +85°C Commercial Operational Spectrum Compliance |
Versatile Logic Applications
- High-Resolution Video Matrix: Manages real-time 1080p video switching, image filtering, and display broadcast hubs.
- Industrial Controls & PLC: Runs advanced closed-loop algorithms inside complex high-axis CNC systems and master controllers.
- Telecommunications Infrastructure: Controls fast data packet framing, protocol conversions, and broad serial multiplexing lines.
- System Hardware Consolidation: Cleanly integrates extensive legacy processors and discrete logic arrays onto a single platform.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
