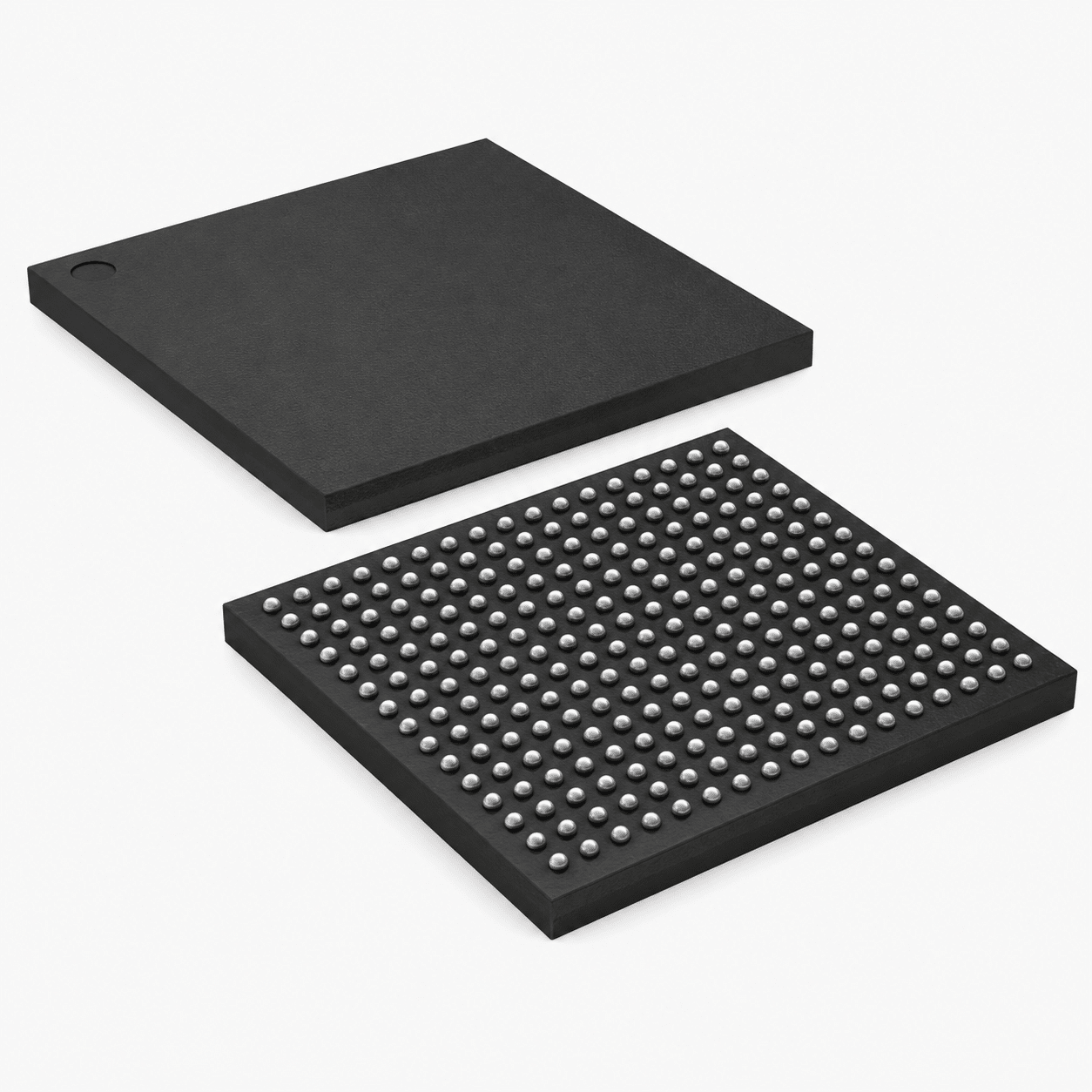

EP4CE6F17C8N Cyclone IV E FPGA
Optimized Cost-Efficiency meets Low Power – The Professional Cyclone IV E FPGA Choice for Streamlined Parallel Processing & Logic Customization.
// High-Efficiency 6.2K Logic Elements Architecture
The Cost-Optimized Programmable Advantage
The EP4CE6F17C8N represents a highly efficient solution for budget-conscious and power-optimized digital layout designs. Engineered by Intel Altera under stringent silicon protocols, this Cyclone IV E FPGA integrates 6,272 flexible logic elements paired with a 270 Kbits embedded RAM pool. Housed in a low-inductive FBGA256 package geometry, it secures reliable parallel compute routing arrays across 179 programmable user I/O ports, successfully preventing bus bottlenecks in customized communication nodes and peripheral logic sub-boards.
- 6,272 High-efficiency Logic Elements (LEs) for versatile hardware gating
- 179 User I/O pins optimized for flexible multi-voltage interface level shifting
- On-chip multipliers and advanced PLL domains ensuring absolute timing synchronization
Key Performance Advantages
Low Power Consumption
Built on an optimized 60-nm low-power process node, minimizing static and dynamic power profiles while capping localized logic board heat generation.
270Kb Embedded RAM
Houses dense integrated memory blocks that allow smooth dual-port FIFO data buffering and custom parameters caching with deterministic execution speeds.
Deterministic Timing
Backed by internal phase-locked loops (PLLs) and global clock networks to perfectly align real-time communication frequencies and prevent bus racing hazards.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Intel Altera |
| Part Number (MPN) | EP4CE6F17C8N |
| Device Family | Cyclone IV E FPGA Architecture Series |
| Logic Elements (LEs) | 6,272 Logic Elements |
| Total Embedded RAM | 270 Kbits (270 KB Internal Block RAM Matrix) |
| Number of LABs / CLBs | 392 Logic Array Blocks |
| Number of User I/Os | 179 Configurable User I/O Ports |
| Package / Case Form | FBGA-256 / F17 Footprint (Fine Ball Grid Array, 17mm x 17mm body) |
| Speed Grade Designation | -8 Speed Optimization Grade |
| Temperature Window | 0°C to +85°C Commercial Operational Spectrum Compliance |
Versatile Logic Applications
- Industrial Automation: Manages real-time multi-axis sensor hubs, data controllers, and localized factory cameras.
- Interface Level Shifting: Establishes clean protocol translation and bi-directional signal shifting between disparate bus rails.
- System Glue Logic Consolidation: Cleanly integrates multiple discrete gates and logical chips onto a single secure platform.
- Telecommunications Nodes: Handles packet data framing, serial multiplexing, and custom protocol decoding pipelines smoothly.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
