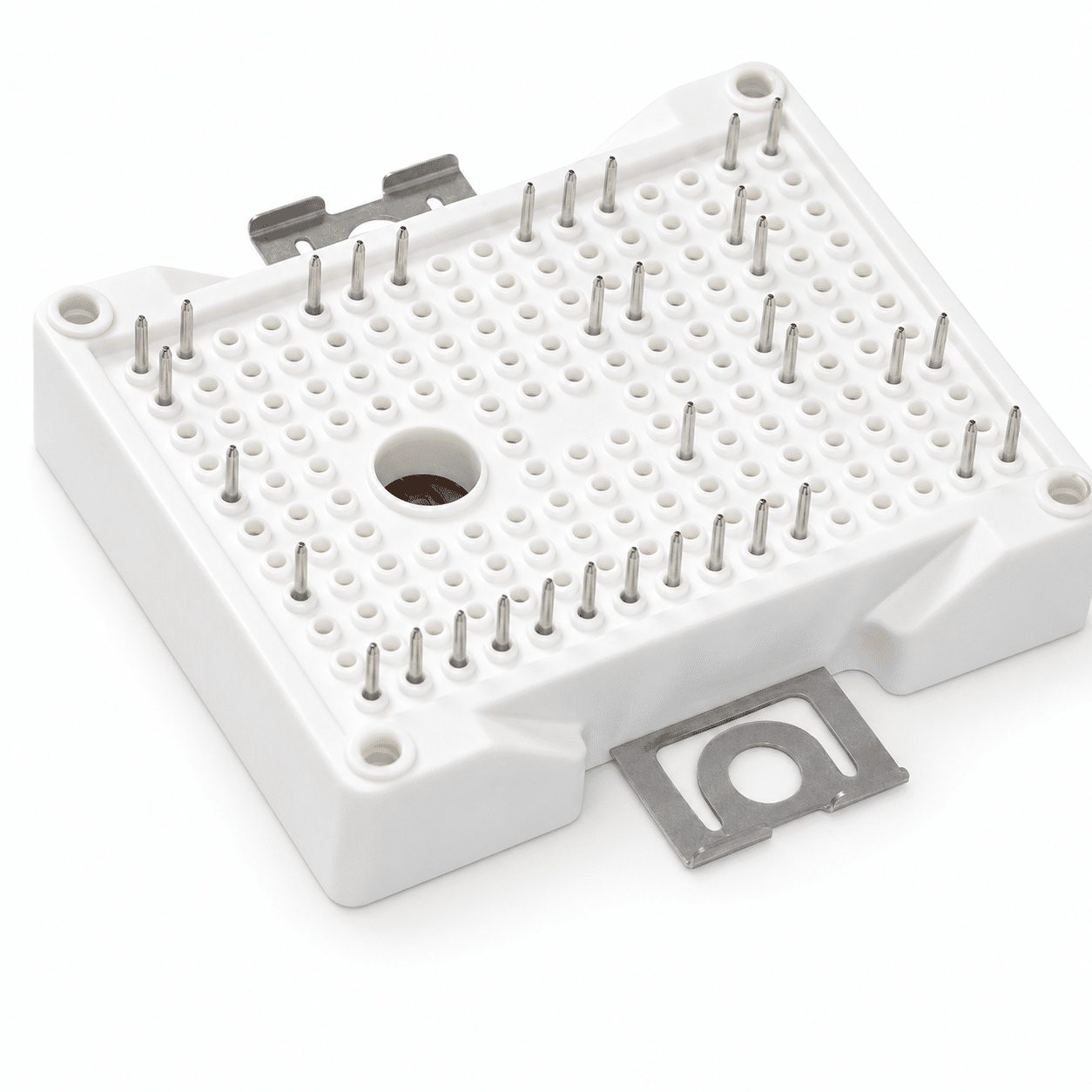

FP25R12W1T4 IGBT Module
1200V Blocking Voltage meets 25A Collector Current – The Professional EasyPIM™ 1B Matrix Choice for Compact Variable Speed Drives.
// Integrated Three-Phase Rectifier & Brake Chopper PressFIT Portfolio
The Highly Integrated PIM Layout Advantage
The FP25R12W1T4 represents a premier flagship single-module solution for high-density, space-constrained industrial setups demanding absolute integration efficiency and excellent thermal stability. Engineered by Infineon utilizing their advanced Trenchstop™ IGBT4 matrix core, this Power Integrated Module (PIM) combines a three-phase input rectifier, a brake chopper, and a space-saving three-phase inverter stage flawlessly. Housed in an industry-leading EasyPIM™ 1B package outline footprint, it secures pure, deterministic power telemetry loops and eliminates discrete structural space waste.
- 1200V Rugged breakdown threshold handling sudden primary power supply surges safely
- Integrated internal NTC thermistor executing continuous localized temperature loop reporting
- Innovative PressFIT assembly pin structure providing solderless, highly reliable motherboard tracking
Key Performance Advantages
All-In-One Integration
Combines rectifier, brake chopper, and inverter stages inside a single block, sharply dropping component tracking counts on your system mainboard.
Trenchstop™ IGBT4 Core
Features an advanced trench-gate structure that establishes low saturation voltage limits, optimizing overall system energy conversion parameters smoothly.
EasyPIM™ 1B Form
Housed in an incredibly dense layout framework, featuring low package height metrics and excellent thermal contact tracking via an integrated baseplate.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number (MPN) | FP25R12W1T4 |
| Product Category | High-Power PIM (Power Integrated Module) IGBT Discrete Solutions |
| Collector-Emitter Voltage | 1200 V Maximum Continuous Blocking Limit Bound |
| DC Collector Current | 25 A Sourcing Current Rating (at TC = 100°C Terminal Condition) |
| IGBT Technology Core | Advanced Trenchstop™ IGBT4 Generation Modulator Matrix Array |
| Saturation Voltage | Typical 1.85V VCE(sat) Conduction Barrier Limit Bound |
| Thermal Supervision | Integrated Internal NTC Temperature Sensing Component |
| Package / Case Form | EasyPIM™ 1B Housing (Lead-Free PressFIT Pin Layout) |
| Max Junction Temp | Extended Performance Window Up to +150°C [175°C Max Switching] |
Versatile Variable Speed Applications
- Compact Industrial Inverters: The premier standard for low-power general purpose variable speed motor drives and machinery controls.
- Servo Drive Systems: Unlocks deterministic multi-axis positioning automation feedback corridors for industrial packaging robotics.
- Commercial HVAC Control: Optimizes continuous energy frequency translation rails inside modern smart air compressor boards.
- Pneumatic Pump Systems: Heavy-duty electrical power switching stage driving liquid flow pumps smoothly across automation systems.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
