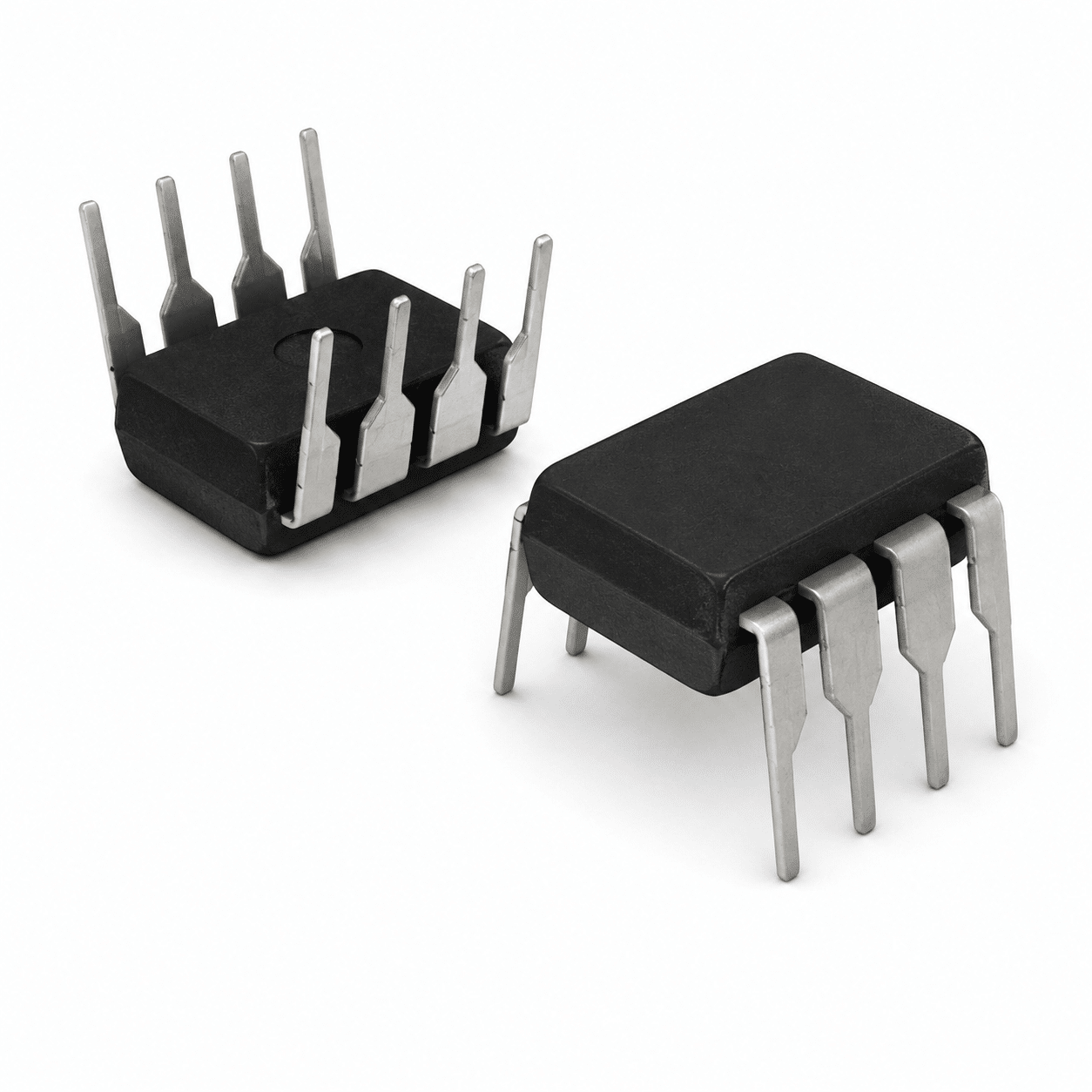

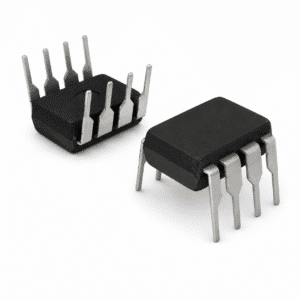

HCPL-3120-000E Gate Drive Optocoupler
2.5A Peak Output Current meets High CMR Noise Immunity – The Professional IGBT & MOSFET Driver Choice for Industrial Inverters.
The High-Isolation Gate Driving Advantage
The HCPL-3120-000E represents a premier flagship modular solution for space-constrained, high-power switching systems demanding absolute signal isolation and rugged gate drive capability. Engineered by Broadcom (Avago Technologies), this 2.5 Amp peak output current optocoupler drives motor control IGBTs and MOSFETs flawlessly without localized switching distortion. Housed in a standardized 8-pin dual-in-line package layout, it secures pure, deterministic signal transmission pathways and eliminates systemic feedback loops.
- 2.5A Maximum peak output current driving power transistors directly
- 15 kV/µs Minimum common-mode rejection (CMR) suppressing harsh transient noise
- Under-Voltage Lockout (UVLO) protection mechanism with hysteresis safeguards
Key Performance Advantages
2.5A Output Current
Provides robust drive current capabilities, allowing quick charging and discharging of IGBT gates to drastically optimize high-frequency switching efficiency.
15kV/µs High CMR
Blocks massive high-voltage common-mode transients completely, preventing faulty cross-conduction issues across aggressive industrial fieldboards.
Low Propagation Delay
Guarantees ultra-low 0.5 µs maximum propagation delay timings, allowing precise synchronous control inside automated motor drive setups.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Broadcom Limited / Avago Technologies |
| Part Number (MPN) | HCPL-3120-000E |
| Product Category | High-Speed Gate Drive Optocouplers (光电耦合器驱动芯片) |
| Peak Output Current | 2.5 Amps Maximum Continuous Sourcing/Sinking Array |
| Common Mode Rejection | 15 kV/µs Minimum CMR at VCM = 1500 V Constraints |
| Propagation Delay (Max) | 0.5 µs Across Entire Operating Range Spectrum |
| Core Supply Voltage | DC 15V to 30V Regulated Gate Rail Operation |
| Safety Isolation | UL1577 Recognized 3755 VRMS Certification Compliance |
| Package / Case Form | Standard 8-Pin DIP / DIP-8 Form (Lead-Free RoHS Tube Package) |
| Temperature Window | Extended Performance Industrial Range (-40°C to +100°C) |
Versatile Driver Applications
- Industrial Inverters: Delivers crisp gate-driving signals for multi-axis AC motor velocity controllers and industrial servo lines.
- Solar Power Converters: Provides deterministic optical isolation barriers inside high-efficiency PV string solar inverters.
- Uninterruptible Power (UPS): Heavy-duty power stage switching driver preventing crossover logic damage inside grid arrays.
- Switched-Mode Systems: Optimized driver component for high-power industrial SMPS charging stacks and induction cooktops.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
