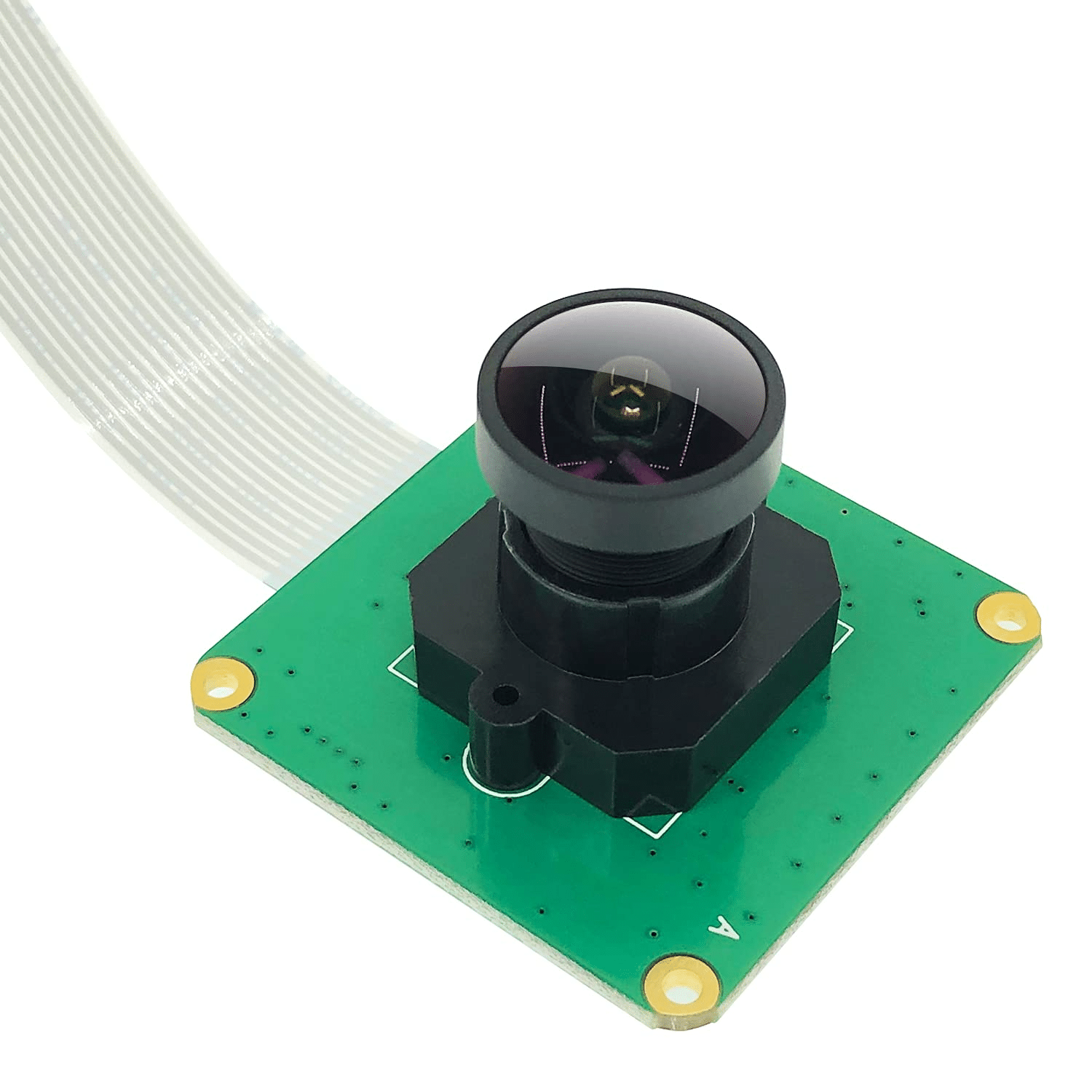

IMX219PQ CMOS Image Sensor
8.08 Megapixel Resolution meets MIPI CSI-2 Interface – The Professional Exmor R CMOS Digital Imaging Silicon Choice for High-Speed Mobile and Embedded Machine Vision Frameworks.
// Back-Illuminated Pixel Matrix 10-Bit RAW Data Stream Bare Die Portfolio
The High-Speed Back-Illuminated Imaging Advantage
The IMX219PQ represents a premier professional 1/4.0-inch 8.08 Megapixel CMOS active pixel type digital image sensor solution engineered for space-constrained, high-throughput hardware architectures demanding absolute optical signal processing efficiency and fast frame rate transmission profiles. Built on Sony’s legendary Exmor R back-illuminated silicon framework, this module processes high-fidelity visual capture streams flawlessly without thermal pixel noise hazards or clock transmission barriers. Operating through high-speed MIPI CSI-2 serial data lanes, it secures pure, deterministic digital image routing loops and completely cuts off hardware synchronization delays.
- High-resolution 8.08MP active matrix grid (3280 x 2464 effective pixel count nodes)
- Advanced 2-lane / 4-lane MIPI CSI-2 interface output delivering raw 10-bit/8-bit data streams safely
- Incredible fluid frame rates supporting up to 180 frames per second under cropped tracking loops cleanly
Key Performance Advantages
High-Speed Frame Rates
Captures full-resolution 8.08MP at 30fps, 1080p HD video at 60fps, and high-speed 720p tracking streams up to 120fps smoothly without latency bottlenecks.
Exmor R Sensitivity
Leverages a back-illuminated pixel structure to drastically increase low-light photon gathering, reducing noise artifacts under dim illumination safely.
Ultra-Compact Footprint
Designed as a premium raw silicon die system, integrating internal timing controllers and PLL units to maximize layout spatial savings smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Sony Semiconductor Solutions Corporation (Premium Sealed Allocation) |
| Part Number (MPN) | IMX219PQ (Exmor R Sensor Family Matrix) |
| Optical Format Size | 1/4.0-inch Active Diagonal Area Layout |
| Resolution Density | 8.08 Megapixels (3280 x 2464 Effective Pixel Matrix) |
| Pixel Size Dimensions | 1.12 µm × 1.12 µm Ultra-Fine Pixel Pitch Geometry |
| Data Interface Bus | MIPI CSI-2 Serial Link Interface (Configurable 2-Lane or 4-Lane Modes) |
| Output Format Modes | 10-bit Raw Bayer / 8-bit Raw Bayer Digital Stream Output |
| Control Interface | I2C Fast Mode Compliant Standard Serial Control Bus Link |
| Supply Voltages Nominal | Analog: 2.8V / Digital Core: 1.2V / Interface I/O: 1.8V Tri-Rail Layout |
| Component Package | Bare Silicon Die package (with Micro-Lens and Color Filter Arrays Integrated) |
Versatile Embedded Vision Applications
- Embedded Single Board Systems: Industry-standard sensor driving flagship Raspberry Pi Camera Module V2 hardware kits safely.
- Machine Vision Edge Hubs: Delivers deterministic object recognition, real-time edge processing, and automated barcode telemetry tracking smoothly.
- Smart Robotics & Drones: Handles demanding spatial orientation tracking, optical flow mapping, and localized depth calculation loops cleanly.
- AI Home Automation Units: Optimizes computational facial detection boundaries inside low-power camera installations and secure smart gates.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
