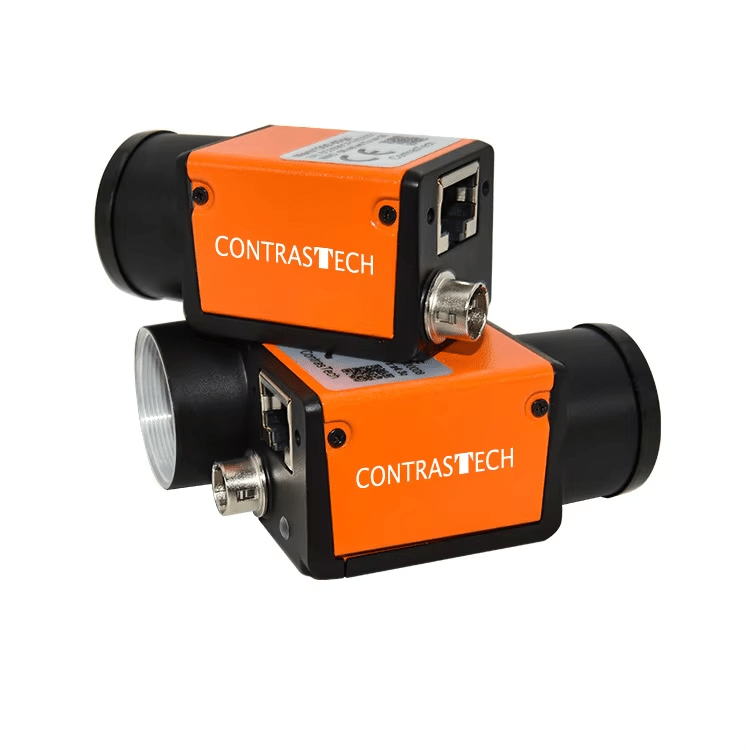

IMX250MZR Polarization Sensor
Four-Direction On-Chip Polarizer meets Pregius Global Shutter – The Professional 5.07MP Monochrome Polarsens CMOS Choice for Advanced Industrial Inspection and Glare Elimination.
// Polarsens Hardware Technology 0°/45°/90°/135° Wire-Grid High-Speed 226-pin LGA Portfolio
The Monolithic On-Chip Polarizer Machine Vision Advantage
The IMX250MZR represents a premier professional 2/3-inch 5.07 Megapixel polarization-sensitive monochrome active pixel type CMOS image sensor solution engineered for high-throughput industrial computing architectures demanding absolute surface stress mapping, scratch identification, and reflection removal. Built on Sony’s legendary Polarsens and Pregius Global Shutter silicon framework, this architecture integrates a multi-directional wire-grid polarizer (0°, 45°, 90°, 135°) directly onto the photodiode array, processing real-time polarized light vectoring flawlessly without mechanical filter wheel lagging hazards or rolling shutter distortion artifacts. Operating through high-speed Sub-LVDS data lanes, it secures pure, deterministic vision pipelines and completely cuts off hardware synchronization delays.
- Monolithic 4-angle polarization filter array configuration natively tracking Stokes parameters safely
- High-speed Pregius Global Shutter function capturing fast-moving manufacturing parts cleanly
- Massive 5.07MP active matrix grid (2464 x 2056 effective pixel nodes) optimized for micro-defect tracking smoothly
Key Performance Advantages
4-Way Wire-Grid Matrix
Deploys native on-chip nanowire arrays across every four pixels, calculating degree and angle of polarization (AoP/DoP) simultaneously under single-exposure loops cleanly.
Pregius Global Shutter
Exposes all pixels in perfect synchronization, completely neutralizing focal-plane rolling distortion when recording high-speed packaging tracks or rotating terminals safely.
High-Throughput Speed
Achieves remarkable readout metrics up to 163.4 frames per second via multi-channel Sub-LVDS pipelines, tracking dense sorting lanes flawlessly smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Sony Semiconductor Solutions Corporation (Premium Industrial Grade Line) |
| Part Number (MPN) | IMX250MZR-C (Polarsens Core Product Matrix) |
| Sensor Type | Monolithic Polarization Monochrome CMOS Sensor System |
| Optical Format Size | 2/3-inch (Approx. 11.1mm Diagonal Matrix Array Layout) |
| Resolution Density | 5.07 Megapixels (2464 x 2056 Effective Silicon Spatial Pixels) |
| Pixel Pitch Size | 3.45 µm × 3.45 µm Square Pixels providing High Dynamic Range |
| Polarizer Grid Layout | Nanowire Wire-Grid Layer (Four Angles structural array calibration: 0°, 45°, 90°, 135°) |
| Shutter Architecture | Pregius Global Shutter (Simultaneous Full Pixel Exposure Node) |
| Data Output Interface | High-Speed Sub-LVDS Serial Interface Link (Up to 163.4 fps readout speed parameters) |
| Package / Case Form | 226-pin LGA Package (Robust ceramic array layout for extreme thermals) |
Versatile Industrial Polarization Applications
- Glass & Acrylic Stress Mapping: Primary vision block calculating internal material stresses and polarization vector mapping safely.
- Reflective Surface Inspection: Delivers deterministic scratch, crack, and dent tracking on shiny automotive panels or metal sheets smoothly.
- ITS Low-Light Deflection: Cuts off dangerous dashboard reflections and windshield glare inside automated traffic camera setups cleanly.
- Pharmaceutical Packaging Control: Optimizes fluid fill tracking and clear blister package inspection loops with zero rolling shutter lag.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
