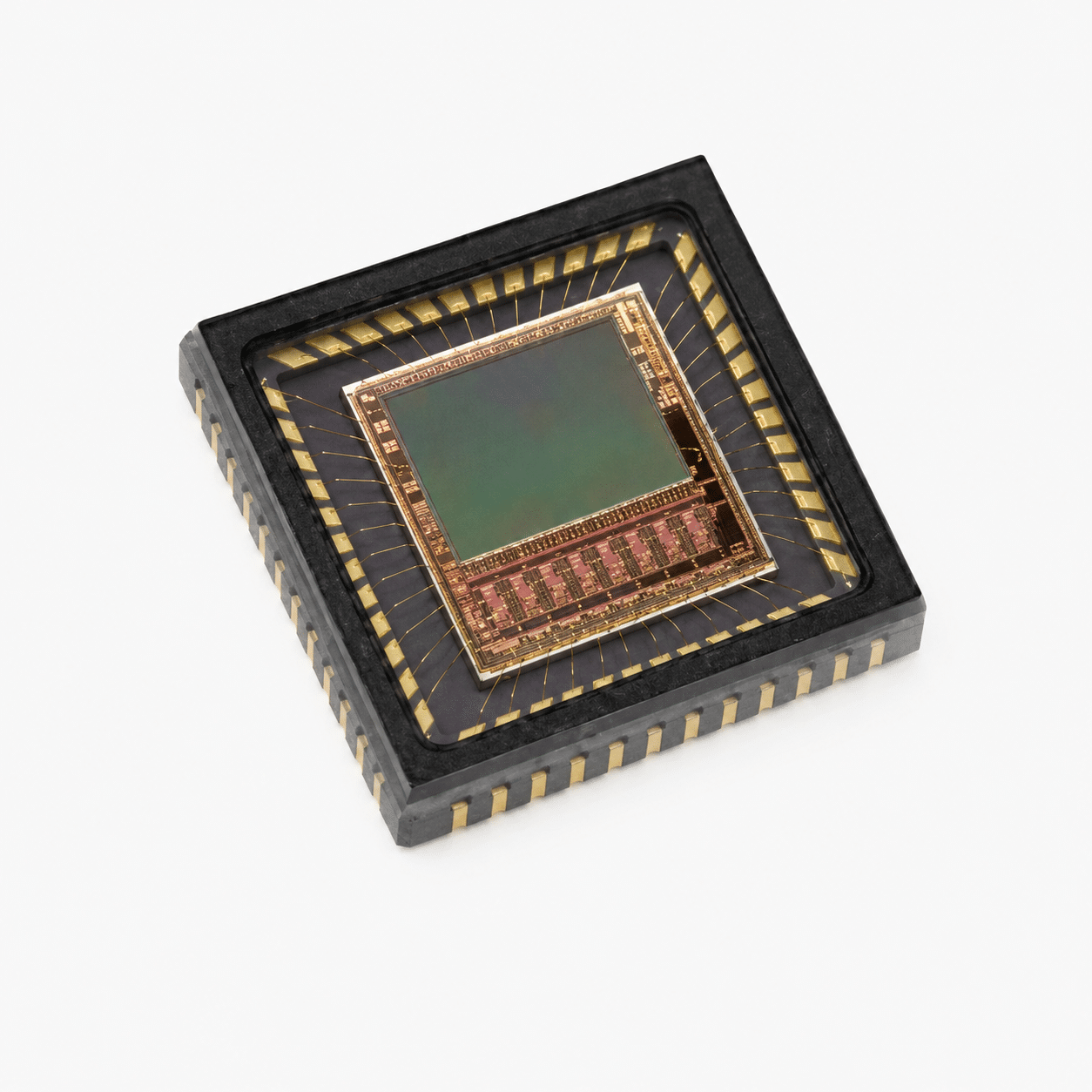

IMX335LQN CMOS Image Sensor
5.14 Megapixel Back-Illuminated Core meets STARVIS Sensitivity – The Professional 2K High-Definition Imaging Silicon Choice for Intelligent Security Surveillance and Automotive Dashcams.
// Back-Illuminated Pixel Matrix 10-Bit/12-Bit RAW Data Stream 60fps Portfolio
The Back-Illuminated High-Resolution Imaging Advantage
The IMX335LQN represents a premier professional 1/2.8-inch 5.14 Megapixel CMOS active pixel type digital image sensor solution engineered for space-constrained, high-throughput hardware architectures demanding absolute optical signal processing efficiency and elite 2K resolution profiles. Built on Sony’s legendary STARVIS back-illuminated stacked silicon framework, this module processes high-fidelity visual capture streams flawlessly under highly variable or dim illumination without thermal pixel noise hazards or clock transmission barriers. Operating through high-speed MIPI CSI-2 serial data lanes, it secures pure, deterministic digital image routing loops and completely cuts off hardware synchronization delays.
- High-resolution 5.14MP active matrix grid (2592 x 1944 effective pixel count nodes for 2K HD video)
- Advanced MIPI CSI-2 serial link interface output delivering raw 12-bit/10-bit data streams safely
- Incredible dynamic range and sensitivity supporting smooth frame rates up to 60 frames per second cleanly
Key Performance Advantages
60fps High-Speed 2K
Captures full-resolution 5.14MP images at 60fps, delivering ultra-crisp fast-moving object tracking streams smoothly without motion blur or latency bottlenecks.
Sony STARVIS Sensitivity
Leverages a back-illuminated structure to drastically increase photon gathering in both visible light and near-infrared spectrums, reducing noise safely.
True 12-Bit RAW Output
Outputs rich digital tonal dynamic ranges through high-precision 12-bit analog-to-digital converter blocks, maximizing post-processing fidelity smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Sony Semiconductor Solutions Corporation (Premium Sealed Allocation) |
| Part Number (MPN) | IMX335LQN (STARVIS Stacked Sensor Series) |
| Optical Format Size | 1/2.8-inch (Approx. 6.52mm Diagonal) Active Area Layout |
| Resolution Density | 5.14 Megapixels (2592 x 1944 Effective Pixel Matrix Grid) |
| Pixel Size Dimensions | 2.0 µm × 2.0 µm Square Pixel Technology for High Dynamic Range |
| Data Interface Bus | MIPI CSI-2 Serial Link Interface (Configurable 2-Lane / 4-Lane Modes) |
| Output Format Modes | 12-bit / 10-bit Raw Bayer Digital Stream Output |
| Control Interface | I2C Standard 2-Wire Serial Communication Bus Link |
| Supply Voltages Nominal | Analog: 2.9V / Digital Core: 1.2V / Interface I/O: 1.8V Tri-Rail Layout |
| Component Package | Bare Silicon Die package (with Micro-Lens and Color Filter Arrays Integrated) |
Versatile Starlight Vision Applications
- Automotive Dashcams & DVRs: Core choice for top-tier 2K driving recorders, providing clear license plate tracking under low-light night conditions safely.
- Intelligent Security IP Cameras: Delivers deterministic object classification, real-time facial recognition, and continuous day/night surveillance smoothly.
- Industrial Inspection Hubs: Handles demanding automation datasets, fast assembly line sorting, and automated robotics vision loops cleanly.
- Embedded AI Vision Nodes: Optimizes computational recognition parameters inside compact edge AI systems and biometric access control gates.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
