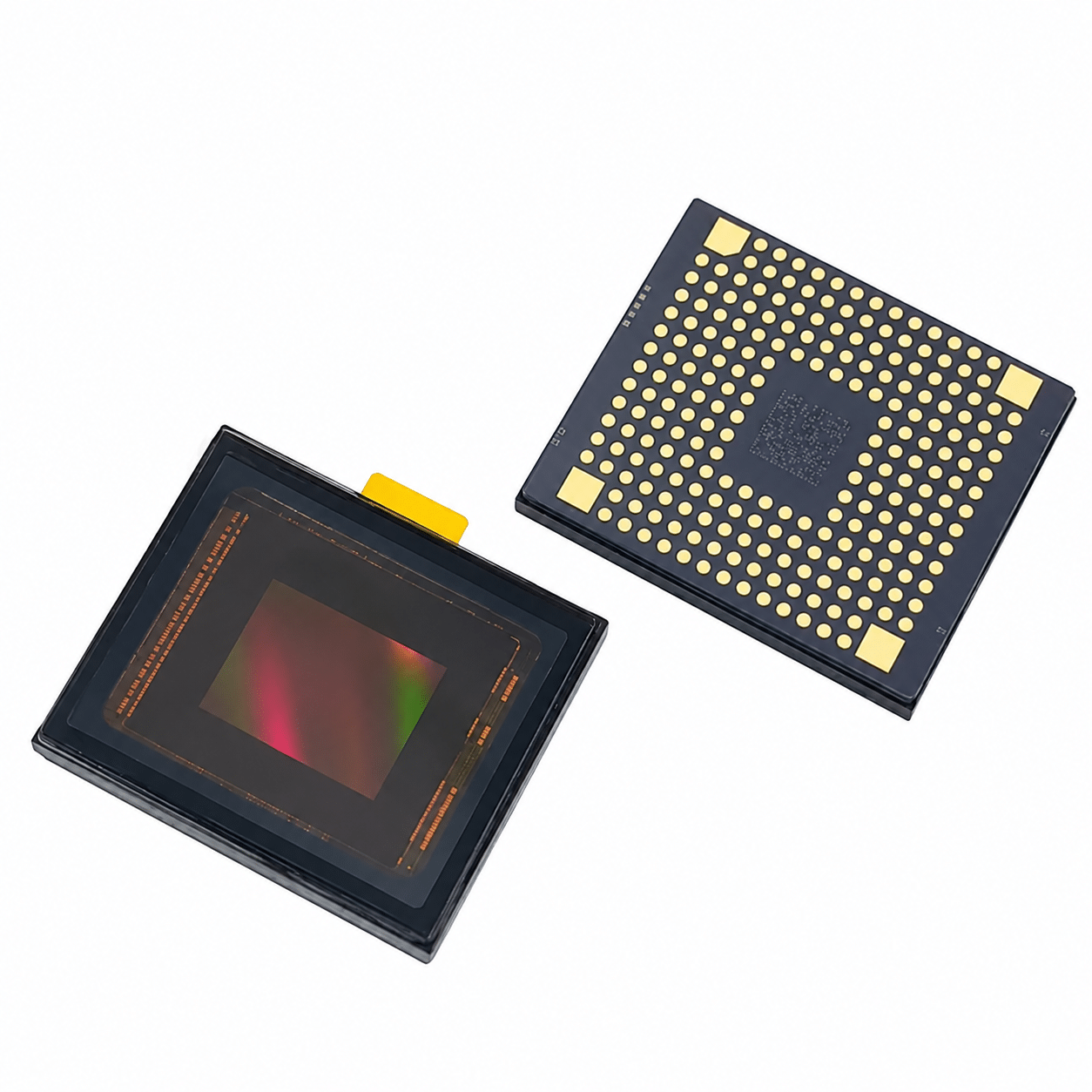

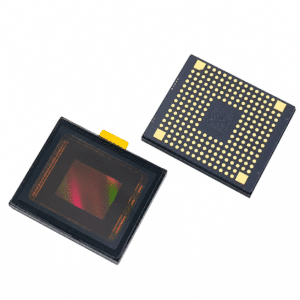

IMX415-AAQR CMOS Image Sensor
True 4K Ultra-HD Resolution meets STARVIS Starlight Sensitivity – The Professional 8.46MP Back-Illuminated CMOS Choice for Intelligent Security Surveillance and Next-Gen Dashcams.
// High-Sensitivity STARVIS Architecture 10-Bit/12-Bit RAW Data Stream 90fps Portfolio
The Absolute 4K Ultra-HD Starlight Imaging Advantage
The IMX415-AAQR represents a premier professional 1/2.8-inch 8.46 Megapixel CMOS active pixel type digital image sensor solution engineered for space-constrained, high-throughput hardware architectures demanding absolute optical signal processing efficiency and industry-leading 4K resolution. Built on Sony’s legendary STARVIS back-illuminated pixel technology framework, this specific module achieves the smallest pixel size in the 4K category while maintaining remarkable sensitivity and low-noise profiles under dim illumination, tracking clear visual streams flawlessly without thermal pixel noise hazards or clock transmission barriers. Operating through high-speed MIPI CSI-2 serial data lanes, it secures pure, deterministic digital image routing loops and completely cuts off hardware synchronization delays.
- True 4K Ultra-HD active matrix grid (8.46MP effective pixel count nodes for crisp, professional surveillance video)
- Advanced MIPI CSI-2 serial link interface output delivering raw 10-bit/12-bit data streams safely
- Incredible fluid frame rates supporting up to 90 frames per second at full resolution cleanly
Key Performance Advantages
90fps High-Speed 4K
Captures full-resolution 4K images up to 90fps, delivering ultra-crisp fast-moving object tracking streams smoothly without motion blur or latency bottlenecks.
Sony STARVIS Sensitivity
Maximizes photon gathering in both visible light and near-infrared spectrums, providing premium full-color video streaming under challenging starlight conditions safely.
True 12-Bit RAW Performance
Outputs rich digital tonal dynamic ranges through high-precision 12-bit analog-to-digital converter blocks, maximizing post-processing fidelity smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Sony Semiconductor Solutions Corporation (Premium Sealed Allocation) |
| Part Number (MPN) | IMX415-AAQR (STARVIS High-Density 4K Series) |
| Optical Format Size | 1/2.8-inch (Type 1/2.8, Approx. 6.43mm Diagonal) Active Layout |
| Resolution Density | 8.46 Megapixels (3864 x 2192 Effective Pixel Matrix Grid) |
| Pixel Size Dimensions | 1.45 µm × 1.45 µm Square Pixel Technology for Extreme Density |
| Data Interface Bus | MIPI CSI-2 Serial Link Interface (Configurable 2-Lane / 4-Lane Modes) |
| Output Format Modes | 12-bit / 10-bit Raw Bayer Digital Stream Output |
| Control Interface | I2C Standard 2-Wire Serial Communication Bus Link |
| Supply Voltages Nominal | Analog: 2.9V / Digital Core: 1.2V / Interface I/O: 1.8V Tri-Rail Layout |
| Component Package | 114-pin FBGA Package (Plastic Fine-Pitch Ball Grid Array Form Factor) |
Versatile Starlight 4K Vision Applications
- Intelligent Security IP Cameras: Core sensor choice for top-tier 4K Ultra-HD starlight night-vision dome and bullet network cameras safely.
- Premium Automotive Dashcams: Delivers deterministic 4K license plate recognition and lane tracking under challenging dark environments smoothly.
- Machine Vision Edge Hubs: Handles demanding robotic navigation, factory automated inspection, and high-resolution sorting loops cleanly.
- Intelligent Traffic Systems (ITS): Optimizes computational vehicle classification parameters inside high-speed road surveillance gates.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
