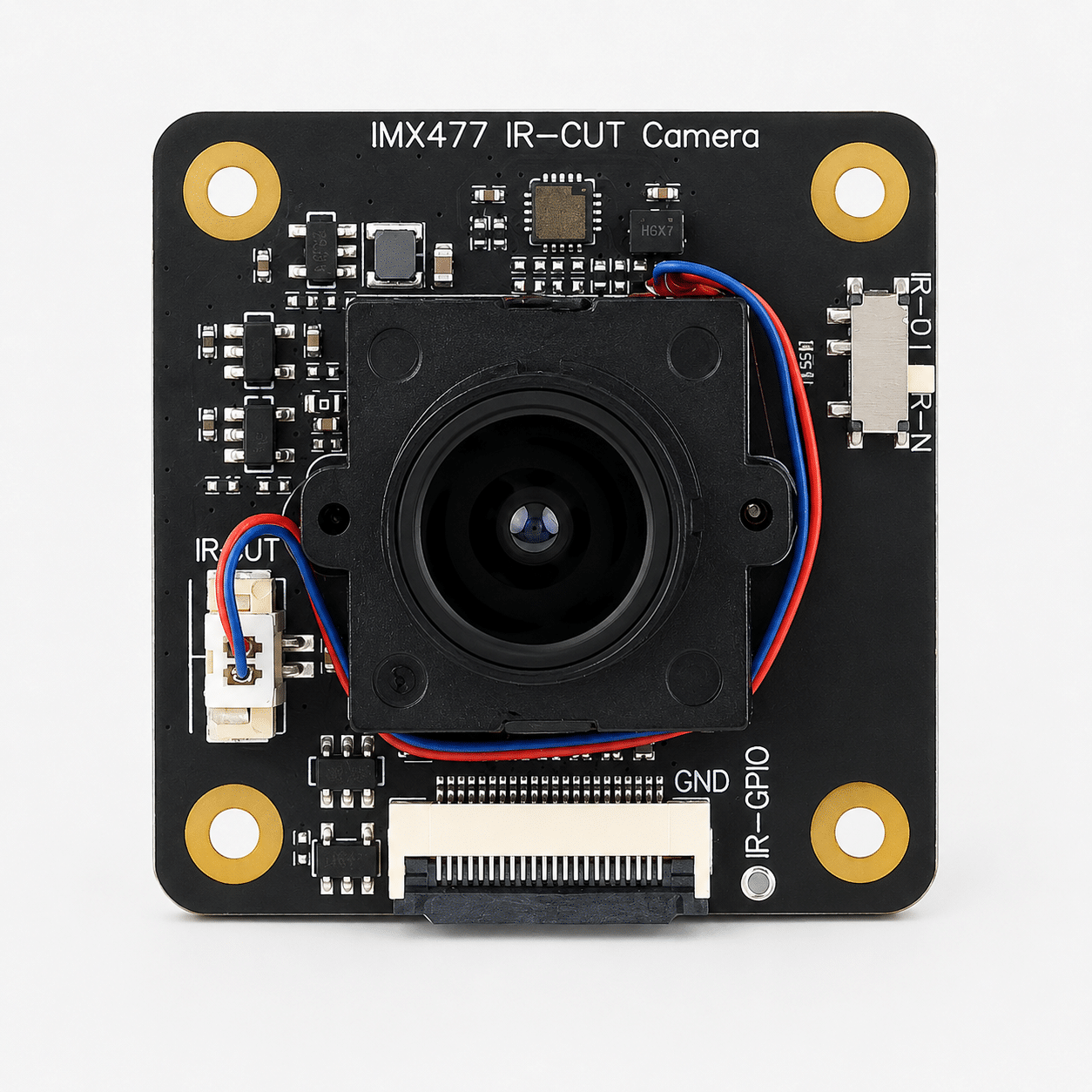

IMX477MQR CMOS Image Sensor
12.30 Megapixel High Resolution meets MIPI CSI-2 Interface – The Professional Exmor RS Back-Illuminated CMOS Choice for Premium Intelligent Vision and Industrial Embedded Computing.
// High-Sensitivity Column-Parallel ADC 12-Bit RAW Data Stream Bare Die Portfolio
The Elite High-Resolution Back-Illuminated Imaging Advantage
The IMX477MQR represents a premier professional 1/2.3-inch 12.30 Megapixel CMOS active pixel type digital image sensor solution engineered for space-constrained, high-throughput hardware architectures demanding absolute optical signal processing efficiency and ultra-precise resolution profiles. Built on Sony’s advanced Exmor RS back-illuminated stacked silicon framework, this module processes high-fidelity visual capture streams flawlessly without thermal pixel noise hazards or clock transmission barriers. Operating through high-speed MIPI CSI-2 serial data lanes with on-chip dual sensor synchronization, it secures pure, deterministic digital image routing loops and completely cuts off hardware synchronization delays.
- Flagship-grade 12.30MP active matrix grid (4056 x 3040 effective pixel count nodes)
- Advanced 2-lane / 4-lane MIPI CSI-2 interface output delivering raw 12-bit/10-bit data streams safely
- On-chip synchronization functionality driving multi-camera stereoscopic depth vision arrays cleanly
Key Performance Advantages
Fluid Frame Rates
Captures full-resolution 12.3MP at 60fps, 4K multimedia at 60fps, and high-speed high-definition 1080p tracking streams up to 240fps smoothly without latency bottlenecks.
Exmor RS Sensitivity
Leverages a stacked back-illuminated structure to drastically increase low-light photon gathering, reducing noise artifacts under dim illumination safely.
True 12-Bit RAW
Outputs rich digital tonal dynamic ranges through high-precision 12-bit analog-to-digital converter blocks, maximizing post-processing fidelity smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Sony Semiconductor Solutions Corporation (Premium Sealed Allocation) |
| Part Number (MPN) | IMX477MQR (Exmor RS Stacked Sensor Series) |
| Optical Format Size | 1/2.3-inch (7.857mm Diagonal) Active Matrix Layout |
| Resolution Density | 12.30 Megapixels (4056 x 3040 Effective Pixel Matrix) |
| Pixel Size Dimensions | 1.55 µm × 1.55 µm Large Pixel Geometry for Light Capturing |
| Data Interface Bus | MIPI CSI-2 Serial Link Interface (Configurable 2-Lane or 4-Lane Modes) |
| Output Format Modes | 12-bit / 10-bit / 8-bit Raw Bayer Digital Stream Output |
| Control Interface | CCI Standard (I2C Fast Mode Plus Compliant Serial Link) |
| Supply Voltages Nominal | Analog: 2.8V / Digital Core: 1.05V / Interface I/O: 1.8V Tri-Rail Layout |
| Component Package | Bare Silicon Die package (with Micro-Lens and Color Filter Arrays Integrated) |
Versatile Embedded Vision Applications
- High-End Embedded Development: Industry-standard component driving flagship Raspberry Pi High Quality (HQ) Camera kits safely.
- Machine Vision Edge Hubs: Delivers deterministic object classification, real-time industrial sorting, and automated tracking smoothly.
- Smart Robotics & Drones: Handles demanding spatial navigation, high-resolution mapping, and dual-camera stereoscopic depth loops cleanly.
- Intelligent Security Systems: Optimizes computational face recognition and high-fidelity monitoring under highly variable facility lighting.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
