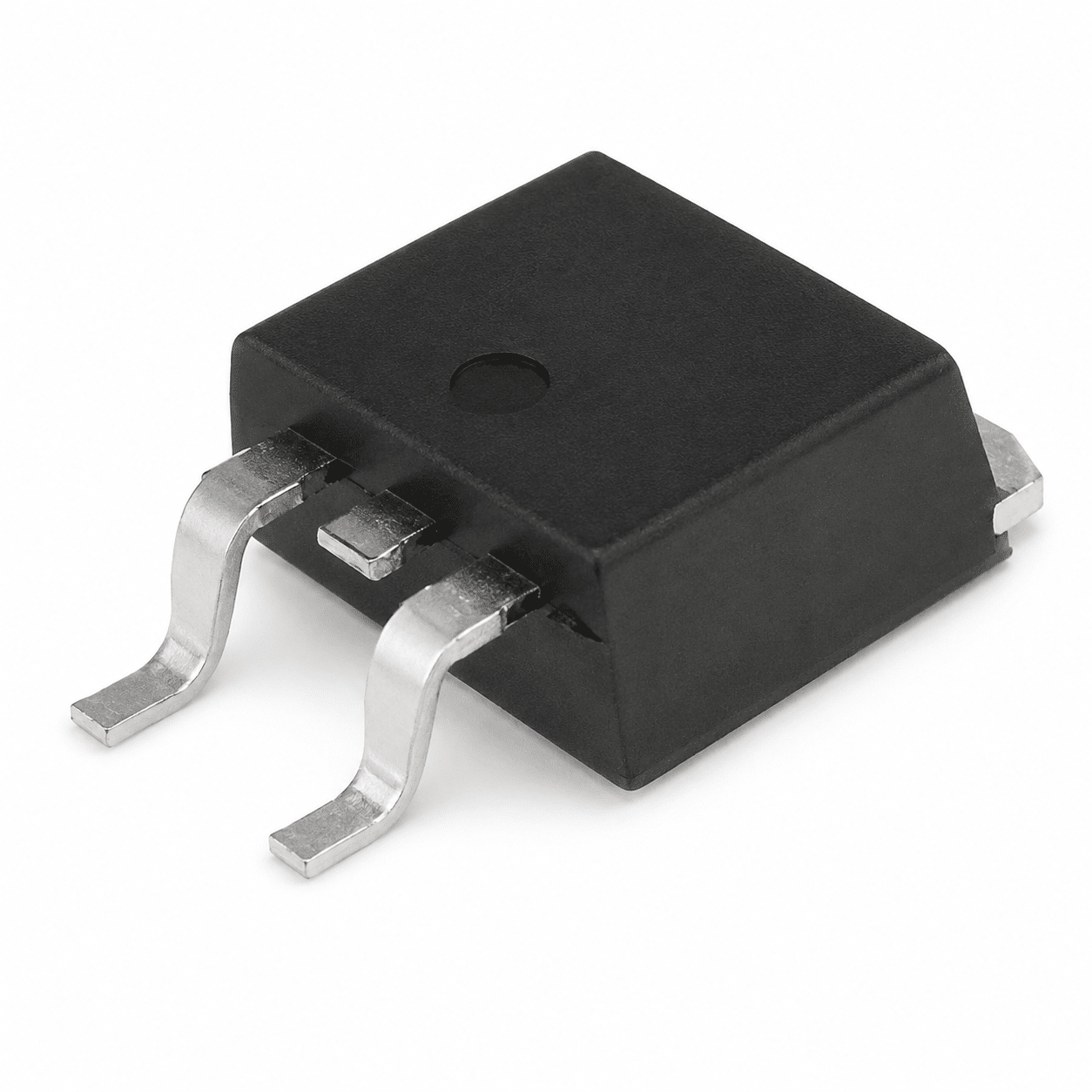

ISL9V3040S3ST EcoSPARK® IGBT
400mJ High Ignition Energy meets 400V Breakdown – The Professional Automotive Ignition IGBT Choice for Electronic Engine Control Systems.
// High-Efficiency EcoSPARK Core Automotive Switching D2PAK TO-263 Portfolio
The Automotive Ignition Optimization Advantage
The ISL9V3040S3ST represents a premier professional specialized N-channel IGBT power transistor solution engineered for space-constrained, high-reliability automotive ignition architectures demanding absolute coil current switching execution and integrated voltage clamp protection profiles. Developed inside ON Semiconductor’s advanced EcoSPARK technology silicon framework, this module processes heavy self-clamped inductive switching (SCIS) operations up to 400mJ energy levels flawlessly without performance degradation hazards. Housed in a standard surface-mount TO-263 (D2PAK) package footprint, it secures pure, deterministic high-voltage drive tracking execution and completely cuts off systemic thermal switching bottlenecks.
- Robust 400mJ Self-Clamped Inductive Energy capability loop minimizing active component counts
- Integrated on-chip gate-to-emitter ESD protection and gate-to-collector voltage tracking clamps safely
- Low saturation voltage (VCE(sat)) metric balancing overall electrical efficiency parameters
Key Performance Advantages
400mJ SCIS Rating
Withstands heavy inductive kickbacks directly during ignition cylinder firing cycles, ensuring robust, repeatable plasma arc creation cleanly.
Monolithic Clamping
Integrates active internal Zener diode networks that restrict voltage transients within strict limits, suppressing harmful power spikes safely.
TO-263 Surface Mount
Housed inside an industry-standard heavy-duty D2PAK package with a large metal tab, maximizing automated PCB assembly heat transfer efficiently.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | ON Semiconductor / Fairchild Semiconductor Product Line |
| Part Number (MPN) | ISL9V3040S3ST (EcoSPARK® Family Matrix) |
| Transistor Core Type | N-Channel Intelligent Internal Clamped Ignition IGBT System |
| Collector-Emitter Voltage | 400 VDC Maximum Active Zener Dynamic Clamping Breakdown Limit |
| Continuous Collector Current | 21A Continuous Rating at TC = 25°C Symmetrical Operating Sizing |
| Inductive Switching Energy | 400 mJ Self-Clamped Inductive Energy Matrix (SCIS Value Node) |
| Gate-Emitter ESD Rating | >15 kV Human Body Model ESD Structural Protection Loop Standard |
| Package / Case Form | TO-263 package (D2PAK Plastic 3-Lead Surface Mount Frame Layout) |
| Packaging Profile | Tape and Reel Delivery Format for Automated High-Speed SMT Placement |
| Component Status | Production Quality Grade Active Commercial Automotive Hardware Portfolio |
Versatile Automotive & Switching Applications
- Automotive Ignition Coils: Primary power switching block driving electronic engine distributorless ignition coils safely.
- Internal Combustion Control: Delivers deterministic coil charging and high-voltage discharging inside engine control units (ECUs) smoothly.
- High-Voltage Solenoid Drivers: Handles heavy inductive switching profiles for industrial gas injectors and fluid actuators cleanly.
- Pulse Power Modulators: Optimizes high-energy localized discharging loops inside specialized capacitor trigger frameworks.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
