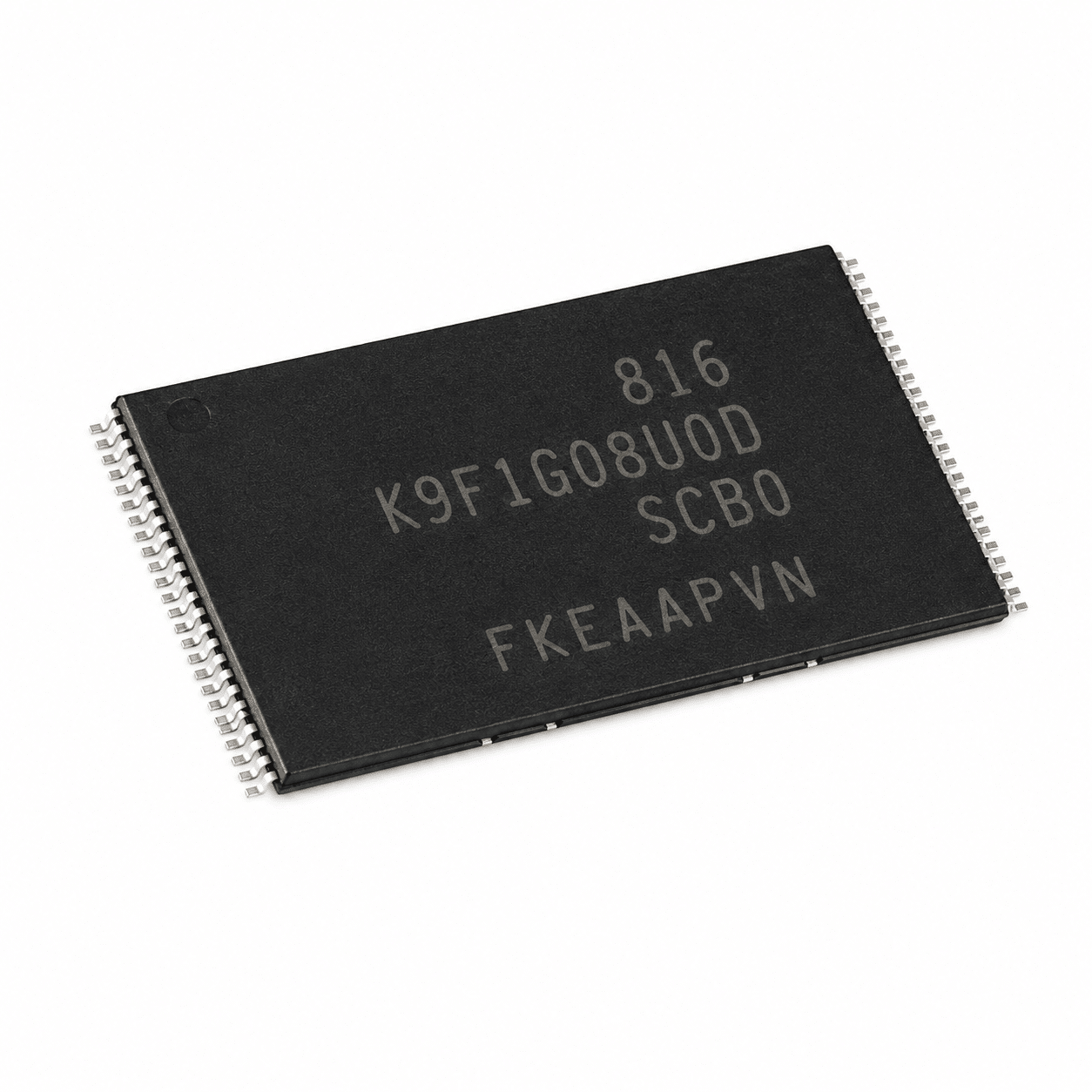

K9F1G08U0D-FIB0 NAND Flash
1Gbit High-Reliability SLC meets 3.3V Power Rail – The Professional SLC NAND Flash Memory Choice for Industrial Embedded Systems and Premium Network Equipment.
The Industrial Grade High-Endurance Storage Advantage
The K9F1G08U0D-FIB0 represents a premier professional 1Gbit (128M x 8) SLC NAND Flash non-volatile mass storage solution engineered for deployment-critical, harsh industrial environments demanding absolute data retention efficiency and superior erase/write endurance profiles. Powered by Samsung’s field-proven Single-Level Cell (SLC) technology framework, this module processes high-frequency block allocation and write cycles flawlessly without data corruption hazards or cell degradation vulnerabilities. Housed in a standard 48-pin TSOP I package layout, it secures pure, deterministic code execution safety loops and completely cuts off hardware memory transmission barriers.
- Highly reliable SLC architecture offering up to 100,000 erase cycles for extreme service lifetimes
- Standard 8-bit multiplexed command/address/data bus layout minimizing pin counts safely
- Fast random access time parameters optimizing low-latency device booting sequences cleanly
Key Performance Advantages
SLC Peak Reliability
Stores 1 bit per cell to provide maximized noise margins and minimal bit error rates, ensuring critical data stays intact over decades safely.
3.3V Industry Rail
Integrates smoothly into mainstream 3.3V electrical operating rails without requiring specialized voltage converters or additional circuitry cleanly.
48-TSOP Package
Utilizes a standard thin small-outline leaded footprint, facilitating easy visual solder joint inspections and robust manual rework processes smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Samsung Semiconductor (Original Factory Clean Allocation) |
| Part Number (MPN) | K9F1G08U0D-FIB0 (Samsung NAND Family Line) |
| Memory Technology | SLC NAND Flash (Single-Level Cell Non-Volatile Solid State Array) |
| Density Capacity | 1 Gigabit / 128 Megabytes (1Gb Architecture Matrix) |
| I/O Bus Width | x8 Bits Multiplexed Hardware Interface Data Bus |
| Operating Voltage Supply | 2.7V to 3.6V Range (3.3V Typ. Standard Logic Calibration) |
| Page/Block Structural Layout | (2K + 64) Bytes Page Size Matrix / (128K + 4K) Bytes Block Structure |
| Package / Case Form | 48-TSOP package (48-Pin Thin Small Outline Package Type I Framework) |
| Lead Profile | Pb-Free (RoHS Compliant Eco-Friendly Terminations Matrix) |
| Component Status | Legacy Active Grade Industrial Supply Component Portfolio |
Versatile Leaded Industrial Applications
- Industrial Automation Controllers: Core non-volatile flash storage block holding vital PLC program codes and manufacturing configs safely.
- Networking Equipment Router Blocks: Delivers deterministic internal OS storage and system boot code execution zones inside switches smoothly.
- Embedded Computing Sub-Systems: Handles demanding local telemetry parameters, smart meters, and heavy aerospace instrumentation arrays cleanly.
- Automotive Diagnostics Modules: Optimizes long-term storage robustness and data safety paths under severe ambient vibration nodes.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
