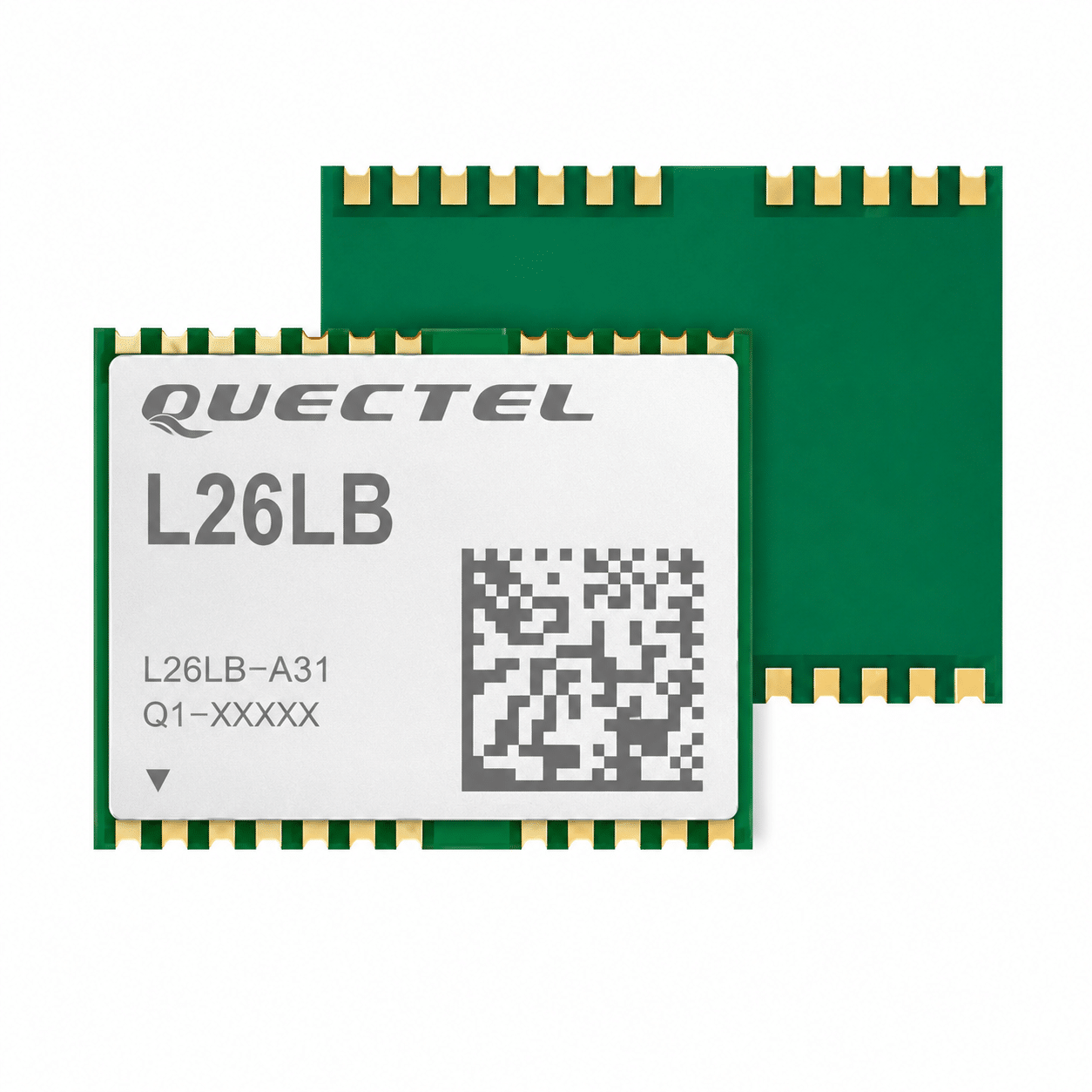

Quectel L26-LB GNSS Module
Multi-Constellation Navigation meets Ultra-Compact LCC – The Premier High-Precision GNSS Positioning Silicon Choice.
// Concurrent GPS/GLONASS/Galileo/BDS Tracking High-Reliability LCC Portfolio
The High-Precision Multi-Constellation Navigation Advantage
The Quectel L26-LB represents a premier professional multi-constellation GNSS positioning solution engineered for space-constrained, rugged hardware architectures demanding absolute coordinate accuracy and fast time-to-first-fix (TTFF) telemetry profiles. Developed inside Quectel’s advanced tracking architecture framework, this module processes concurrent GPS, GLONASS, Galileo, and BDS satellite signal matrix streams flawlessly without data dropouts. Housed in an ultra-compact, low-profile LCC package footprint, it secures pure, deterministic location routing data pipelines and completely cuts off systemic board-level tracking hazards.
- Multi-constellation design covering GPS, GLONASS, Galileo, and BeiDou for maximized satellite visibility
- Integrated low-noise amplifier (LNA) delivering enhanced signal sensitivity and rapid tracking acquisition smoothly
- Advanced EASY™ self-generated orbit prediction technology optimizing TTFF boundaries safely under harsh urban canyons
Key Performance Advantages
Concurrent Reception
Tracks multiple satellite networks simultaneously, drastically increasing coordinate positioning density and reliability in weak signal zones.
Ultra-Fast Fix (TTFF)
Leverages advanced AGNSS orbit prediction logic and a built-in LNA node, achieving instant warm-start positioning fixes cleanly.
Compact LCC Footprint
Housed in an industry-standard LCC package layout, maximizing space utilization parameters on high-density industrial mainboards.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Quectel Wireless Solutions |
| Part Number (MPN) | L26-LB (L26 Core Navigation Series Configuration) |
| Product Category | High-Performance Multi-Constellation GNSS Receiver Modules |
| Satellite Tracking Systems | Concurrent GPS L1 C/A, GLONASS L1OF, Galileo E1, and BDS B1 Bands Routing |
| Sensitivity Nodes | Tracking: -167dBm / Acquisition: -149dBm / Reacquisition: -161dBm |
| Position Accuracy | Autonomous: < 2.5m CEP High-Precision Matrix Sizing Parameters |
| Interface Protocols | UART Serial Channel Ports (NMEA 0183 Communication Standard protocol alignment) |
| Package / Case Form | LCC Package Form Factor (Standard Surface Mount 16.0mm × 12.2mm × 2.4mm Dimensions) |
| Temperature Window | Industrial extended operating threshold bounds (-40°C to +85°C) |
| Component Status | Production Quality Grade Active Commercial Inventory Profile |
Versatile GNSS Tracking Applications
- Automotive Fleet Telematics: Primary positioning core driving intelligent transit tracking networks, vehicle recorders, and terminal logging cards safely.
- Industrial Asset Trackers: Delivers deterministic coordinate loops and precision mapping datasets required for rugged container shipping units smoothly.
- Smart Security & Drones: Powers commercial UAV navigation modules and remote camera tracking arrays requiring stable location feeds cleanly.
- Handheld Portable Devices: Optimizes power-constrained mobile field telemetry computers needing consistent multi-constellation acquisition capabilities.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
