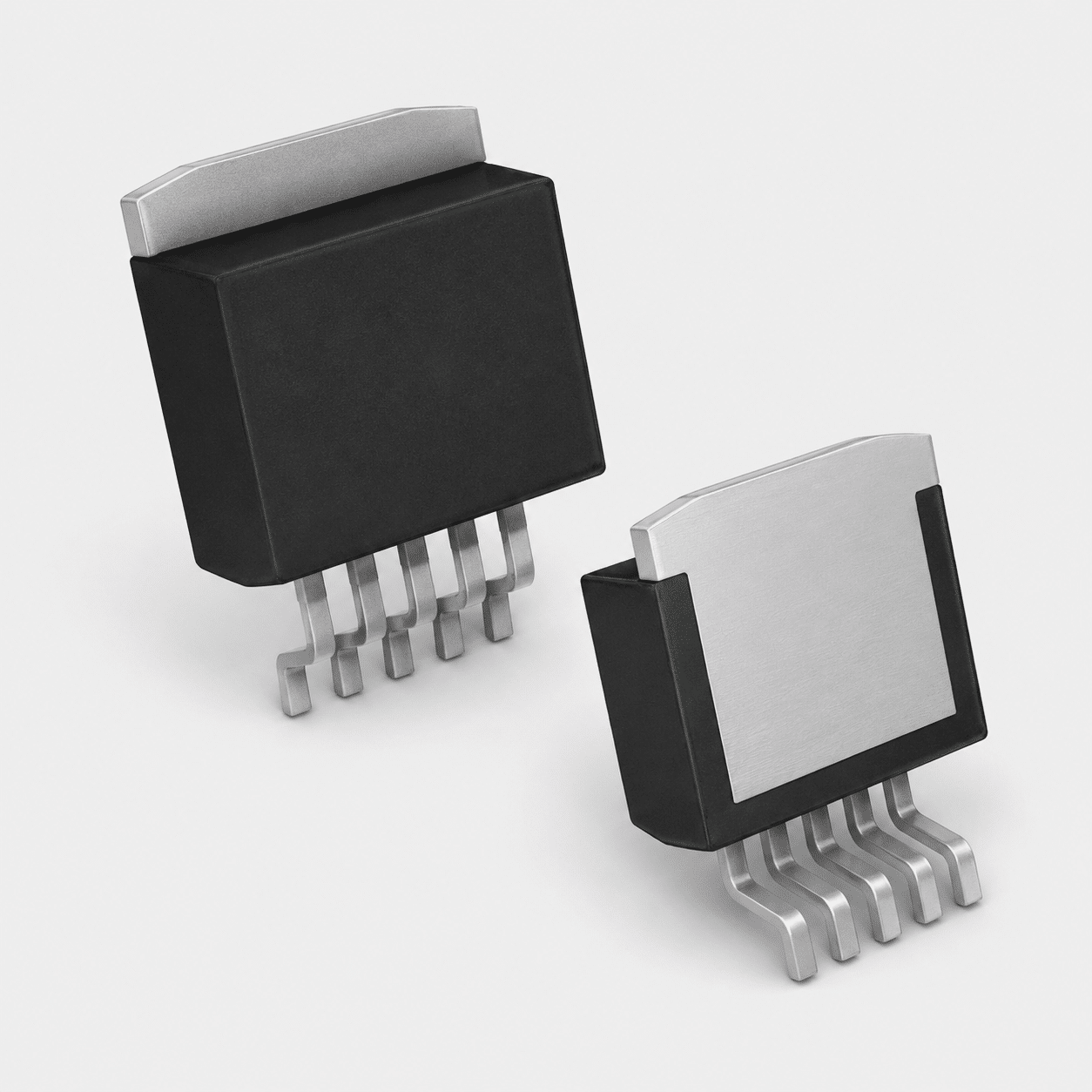

LM2596S-5.0 Buck Regulator
3A Continuous Output meets 5.0V Fixed Precision – The Industry-Standard SIMPLE SWITCHER® Power Silicon Choice for Industrial Control Mainboards and Reliable Step-Down Modules.
// 150kHz Fixed Frequency Built-in 3A Power Switch TO-263-5 DDPAK Portfolio
The Time-Tested Non-Isolated Step-Down Advantage
The LM2596S-5.0 represents a premier professional TO-263 (DDPAK) packaged monolithic PWM step-down buck DC-DC converter solution engineered for space-constrained, high-throughput hardware architectures demanding absolute power conversion efficiency and minimum external component counts. Built on Texas Instruments’ legendary SIMPLE SWITCHER® technology framework operating at a deterministic 150 kHz frequency node, this module processes high-current load lines up to 3A continuous flawlessly without excessive thermal runaway hazards or systemic performance lagging. Housed in an industry-standard 5-pin surface mount layout, it secures pure, deterministic power routing loops and completely cuts off circuit layout overhead bottlenecks.
- Guaranteed 3A continuous load output current capability under diverse environmental gradients cleanly
- Fixed 5.0V precision output loop eliminating external feedback resistor calibration networks safely
- Requires only 4 external passive parts to build a complete high-efficiency switching power station smoothly
Key Performance Advantages
3A Symmetrical Drive
Maintains excellent line and load regulation loops, continuously driving heavy 5V logic networks and relay boards safely under industrial parameters.
Full Thermal Safeguards
Integrates two-stage thermal shutdown limits and cycle-by-cycle current limit thresholds, shielding downstream circuitry against accidental shorts safely.
TO-263 Surface Mount
Housed inside a standard DDPAK surface-mount enclosure featuring a large backside heat-sink tab, optimizing board real estate scaling smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Texas Instruments (Premium Original Sourcing Allocation) |
| Part Number (MPN) | LM2596S-5.0 / LM2596S-5.0/NOPB |
| Function Topology | Non-Isolated Buck Step-Down PWM Switching Regulator |
| Output Voltage Type | Fixed Positive Voltage Output Channel Matrix |
| Nominal Output Rating | 5.0 VDC Fixed Output Threshold with ±4% Max Deviation |
| Input Voltage Operation | 7.0 VDC to 40 VDC Continuous Input Operating Rail Range |
| Output Current Rating | 3.0 Amperes Continuous Current Output Capacity |
| Switching Frequency | 150 kHz Fixed Internal Clock Oscillation Frequency Mode |
| Package / Case Form | TO-263-5 (DDPAK) Package (Plastic 5-Lead surface mount structure) |
| Standby Shutdown Current | 80 µA Typical Low Power Sleep State (via ON/OFF Control Pin Node) |
Versatile Power System Applications
- High-Efficiency Buck Regulators: Standard pre-regulator down-stepping 12V/24V power buses cleanly into stable 5V control rails safely.
- Industrial Automation Hubs: Delivers deterministic power pipelines needed inside PLC controllers, sensory array nodes, and LCD modules smoothly.
- Automotive Electronics Hardware: Handles demanding vehicular input variations, powering GPS tracking setups and diagnostic meters cleanly.
- Distributed Power Infrastructure: Optimizes space metrics and eliminates linear power supply heating bugs inside consumer equipment.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
