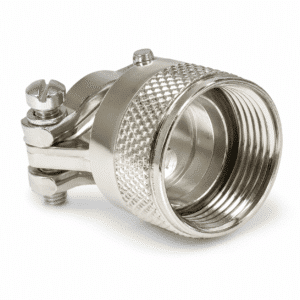

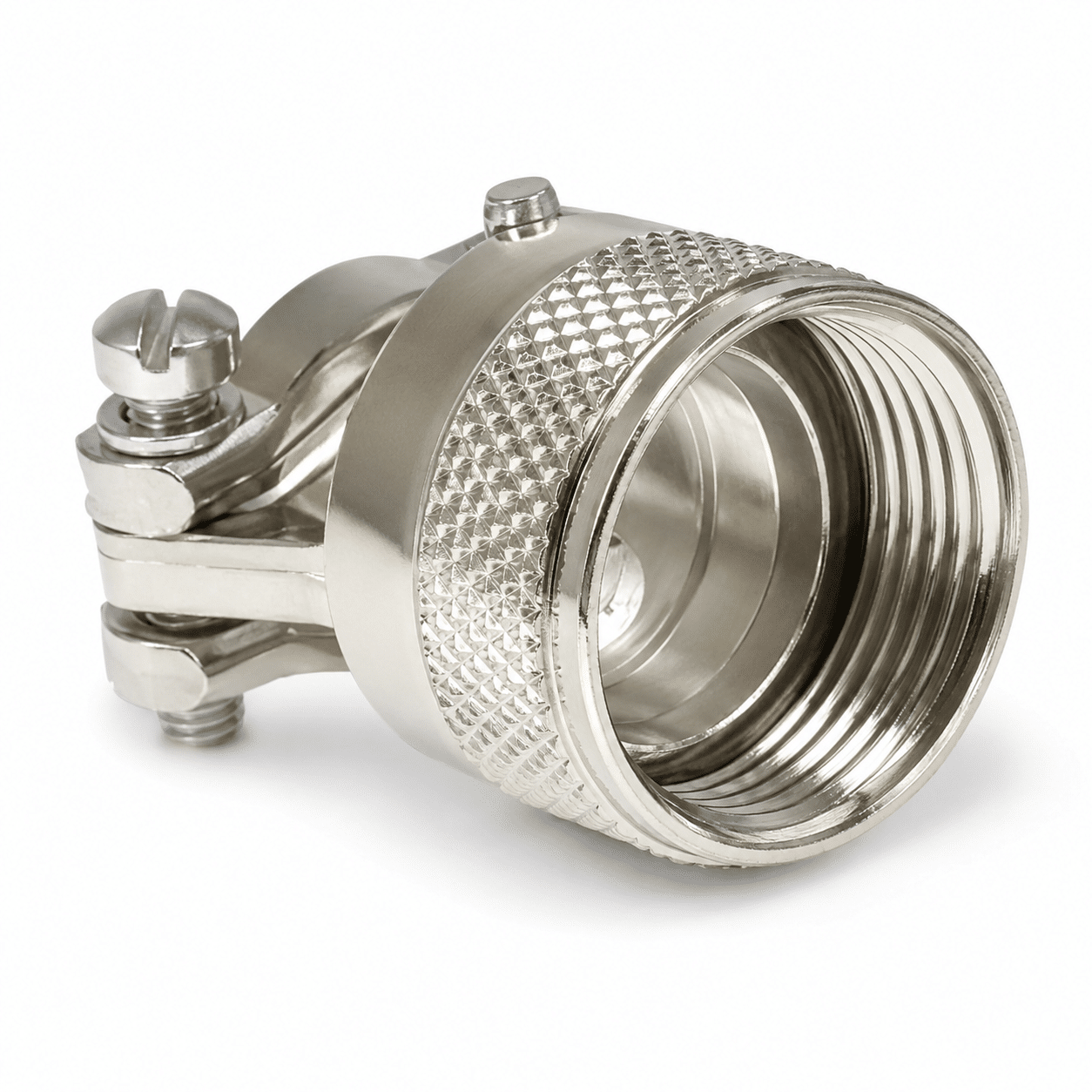

M85049/38-11W Connector Backshell
AS85049 Standard Compliance meets Rigid Strain Relief – The Professional Military Circular Connector Hardware Choice for Ruggedized Harness Protection.
// Straight Profile Shell Size 11 Olive Drab Cadmium Portfolio
The Mil-Spec Harness Protection Advantage
The M85049/38-11W represents an elite military-grade benchmark solution for cable strain relief and localized mechanical anchoring on circular connectors. Engineered by Amphenol Pcd to satisfy rigid AS85049 specification parameters, this straight profile backshell clamps seamlessly onto size-11 connector accessories. Built from premium high-strength aluminum alloy and coated with a heavy-duty olive drab cadmium finish, it ensures uncompromised electrical grounding integrity and deterministic cable routing control under relentless high-vibration exposure.
- Straight configuration backshell offering space-saving, linear wiring entries
- Heavy-duty dual-clamp cable tie mechanisms preventing wire-pull terminal damage
- Full compatibility with MIL-DTL-38999 Series I & II circular connection hardware
Key Performance Advantages
Corrosion Resistance
Olive drab cadmium over nickel plating withstands aggressive salt spray corrosion metrics, forming an ultra-stable layer in coastal and battlefield deployments.
Robust Strain Relief
Dual-screw mechanical clamping blocks eliminate physical tension transmission straight to individual contact solder pots, protecting logic links.
Full EMI Continuity
Constructed entirely from premium-grade aluminum alloy to secure excellent ground continuity metrics, establishing solid shielding matrices under heavy EMI.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Amphenol Pcd (Air LB Division) |
| Part Number (MPN) | M85049/38-11W |
| Standard Compliance | SAE AS85049 Specification (Category: Strain Relief Backshell) |
| Profile Orientation | Straight (180-Degree Linear Entry) |
| Shell Size Designation | Shell Size 11 (Compatible with Mil-Spec Size Code B Shells) |
| Shell Material Base | High-Strength Structural Aluminum Alloy |
| Finish Plating (Code W) | Olive Drab Cadmium over Electroless Nickel Base Matrix |
| Environmental Class | Non-Environmental (Open Clamping Frame for Strain Relief Focus) |
| Mating Compatibility | MIL-DTL-38999 Series I & Series II Circular Connectors |
| Operating Window | Severe Industrial / Military Operational Range (-65°C to +175°C) |
Versatile Rugged Applications
- Aerospace Avionics Bays: Secures critical communication and power transmission cables in cockpit controls and avionics routing matrices.
- Military Tactical Vehicles: Heavy-duty ground vehicle power distribution hubs subject to extreme shocks and vibration profiles.
- Defense Telemetry Systems: Reliable radar instrumentation setups, data capture modules, and field communication terminals.
- Marine Subsystem Assemblies: Naval dashboard layouts and missile control links demanding highly resilient mechanical clamping.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
