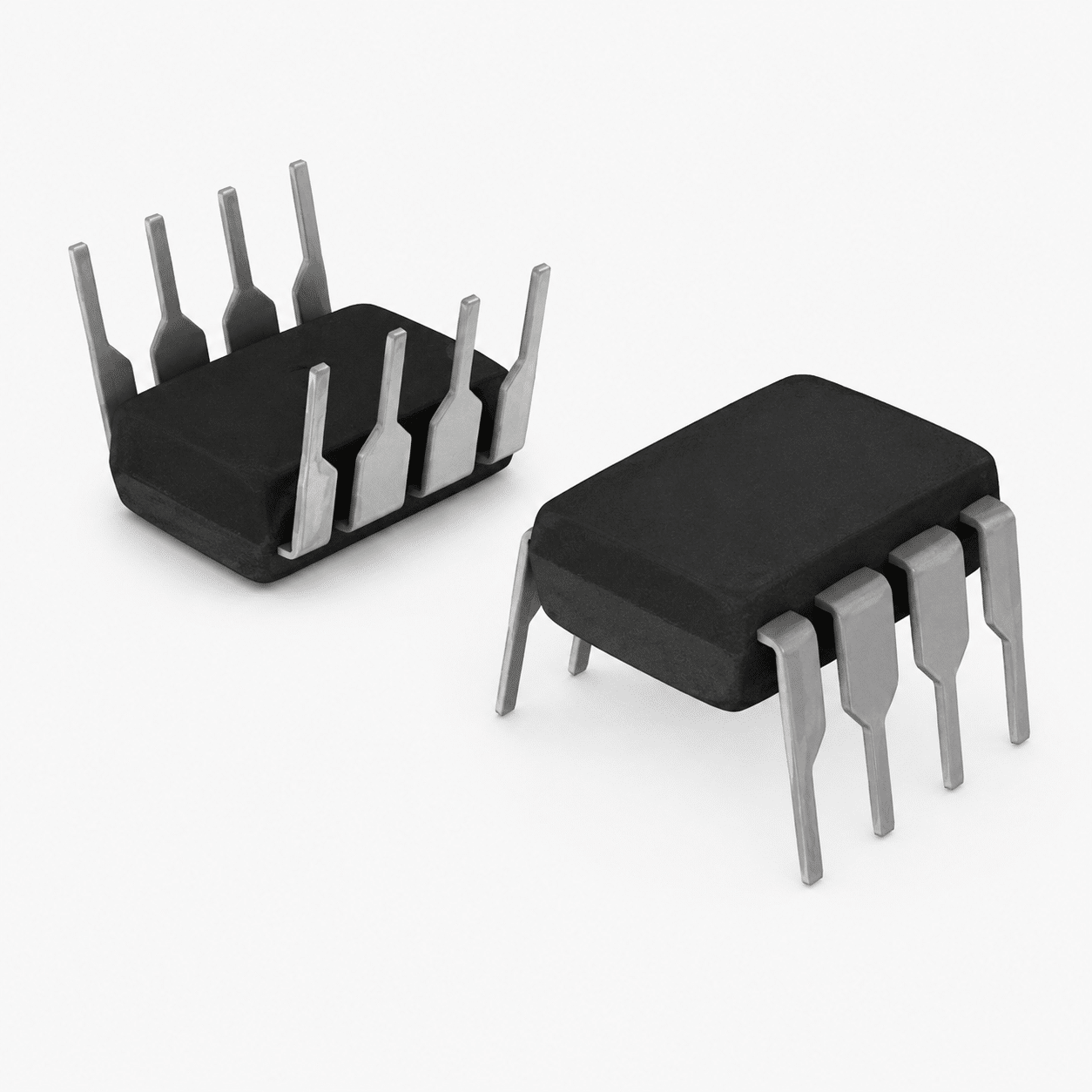

MAX485CPA+ RS-485 Transceiver
Half-Duplex Architecture meets Low Power Design – The Professional Through-Hole PDIP-8 Transceiver Choice for Rugged Fieldbus Networks.
// High-Speed 2.5Mbps Differential Data Bus System Core Portfolio
The Industrial Fieldbus Connectivity Advantage
The MAX485CPA+ represents the ultimate industry-standard benchmark for high-performance serial communication networks demanding absolute noise immunity and multi-drop transceiver capabilities. Engineered by Maxim Integrated, this half-duplex RS-485/RS-422 transceiver features an advanced differential driver and receiver layout that minimizes EMI and reduces localized reflections. Operating seamlessly from a single +5V supply rail, it establishes deterministic data transit corridors across lengthy twisted-pair fieldbus systems inside a traditional 8-pin plastic DIP footprint.
- Single half-duplex bi-directional channel architecture optimizing line resource routing
- Advanced fail-safe receiver design securing known logic states under open circuits
- Through-hole wave solder leg anchors providing superior mechanical retention for field mainboards
Key Performance Advantages
2.5Mbps High Speed
Supports error-free serial data transfer rates up to 2.5 Mbps, fully fulfilling dynamic processing needs inside automated PLC backplanes.
Ultra-Low Active Current
Draws only 300 µA typical supply current, sharply decreasing structural power overhead and thermal dissipation markers across multi-node setups.
Through-Hole PDIP-8
Housed in a rugged dual-in-line plastic package, enabling effortless prototyping socket integration and absolute wave soldering connection durability.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Maxim Integrated / Analog Devices |
| Part Number (MPN) | MAX485CPA+ (Plus “+” denotes lead-free/RoHS compliance) |
| Product Category | RS-485 / RS-422 Line Driver & Receiver Integrated Circuits |
| Communication Mode | Half-Duplex Bidirectional Architecture |
| Max Data Rate | 2.5 Mbps High-Speed Transmission Capability |
| Core Supply Voltage | DC +4.75V to +5.25V (+5V Nominal Single Supply Rail) |
| Driver / Receiver Count | 1 Transmitter and 1 Receiver Module Array |
| Package / Case Form | PDIP-8 / P8 Package (0.300″, Plastic Dual In-Line Thru-Hole Layout) |
| Common Mode Bus Range | -7V to +12V Strict Fieldbus Protection Window |
| Temperature Spectrum | 0°C to +70°C Commercial Operational Spectrum Compliance |
Versatile Networking Applications
- Industrial Control Networks: Core differential interface logic linking automated PLCs, distributed CNC arrays, and Modbus networks.
- Building Automation Systems: Manages localized telemetry lines for smart HVAC units, lighting control hubs, and security mainboards.
- Smart Edge Terminal Gateways: Bridges MCU logic pins directly to long-distance external industrial communication matrices securely.
- EMI-Sensitive Localized Buses: Acts as an intermediate differential buffer protecting hardware from high electromagnetic cross-talk risk nodes.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
