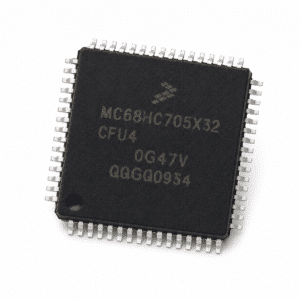

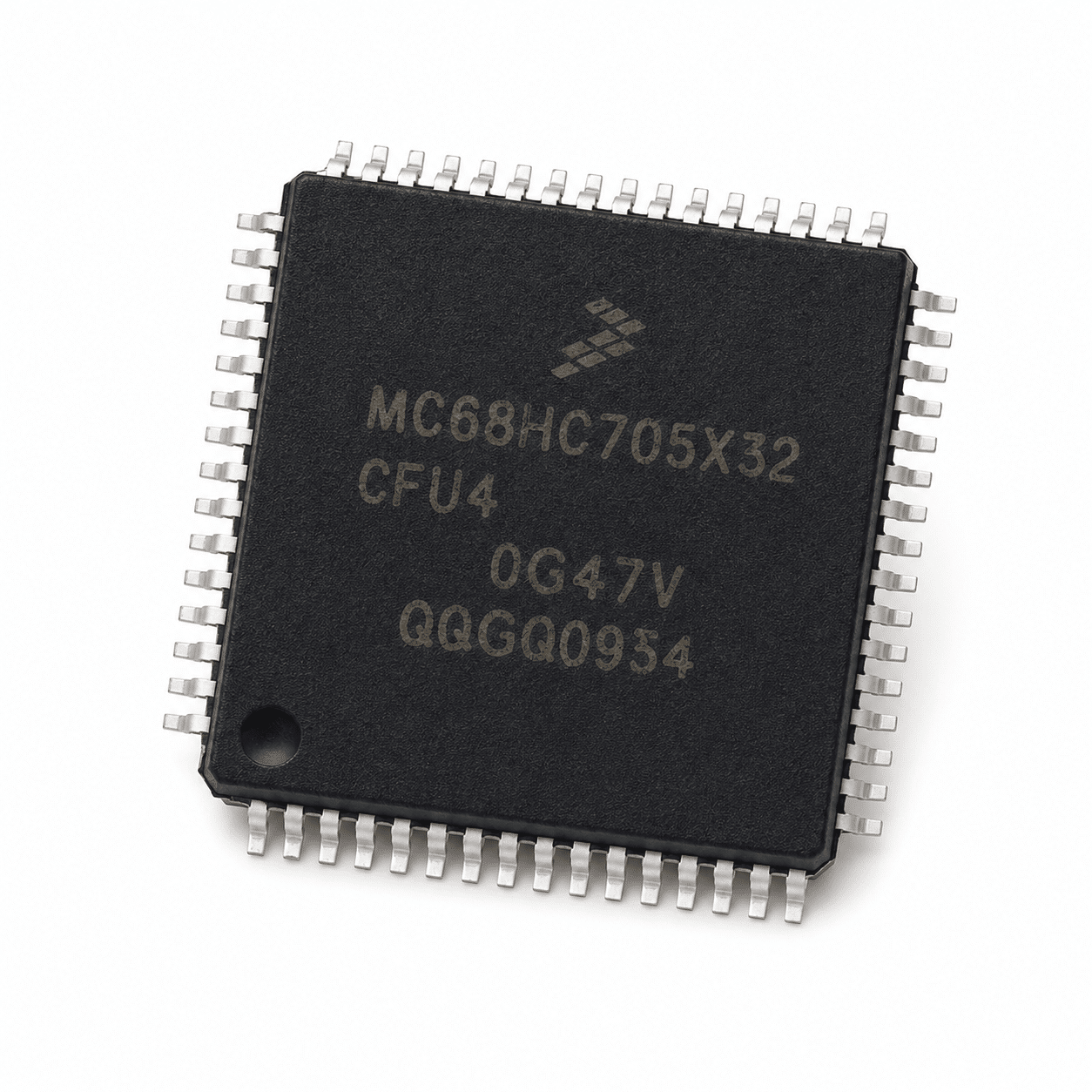

MC68HC705X32CFU4 8-Bit Microcontroller
On-Chip CAN Interface meets Rugged 8-Bit Logic – The Professional HC05 Core Embedded MCU Choice for Automotive Networks & Industrial Systems.
// High-Reliability Controller Area Network (CAN) Technology
The HC05 Industrial Core Advantage
The MC68HC705X32CFU4 stands as a benchmark for high-reliability embedded control processing. Originally architected under Motorola’s legendary semiconductor lineages and continuously provisioned through NXP Semiconductors, this 8-bit MCU integrates a dedicated on-chip Controller Area Network (CAN) communication controller. It is specifically built to deliver deterministic, fault-tolerant logic control operations within high-vibration automotive engine nodes, specialized factory equipment, and high-EMI instrumentation grids.
- 32 Kbytes On-Chip Memory Array for robust software code execution
- Integrated Hardware CAN Module for real-time serial multiplexing
- Advanced programmable timer systems and independent computer operating properly (COP) watchdog
Key Performance Advantages
Native CAN Subsystem
Features a built-in hardware CAN bus link node that minimizes central processor interface polling delays and completely eliminates complex multi-chip logic layouts.
32KB Program Matrix
Houses a generous 32K memory allocation pool alongside 528 bytes of high-speed SRAM, safely scaling system-level operational registers without memory choking.
Deterministic Security
Equipped with a dedicated internal COP system and hardware window timer matrices, protecting embedded code runtimes from critical power drop brownouts.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | NXP Semiconductors (Originally Motorola Semiconductor) |
| Part Number (MPN) | MC68HC705X32CFU4 |
| Core Processor | HC05 High-Reliability 8-Bit Architecture |
| On-Chip Memory | 32 Kbytes (32 KB) Non-Volatile Memory Allocation |
| Internal System RAM | 528 Bytes High-Speed SRAM Interface |
| Serial Communication | Integrated Controller Area Network (CAN) Bus Interface |
| Clock Frequency | 4.0 MHz Internal Operational Timing Limits |
| Package / Case Form | QFP-64 / PQFP-64 (Plastic Quad Flat Package, FU Designation) |
| Operating Voltage Range | Standard CMOS Operating Rail Constraints |
| Operating Temperature | -40°C to +85°C Industrial-Grade Specification Compliance |
Versatile Embedded Applications
- Automotive Body Control: Manages localized sensor arrays, instrumentation cluster sub-buses, and comfort networks.
- Industrial CAN Systems: Serves as a deterministic communication node in legacy manufacturing lines and machinery loops.
- Heavy-Duty Equipment: Processes physical telemetry logs inside agricultural vehicles or material handlers seamlessly.
- Legacy Maintenance Channels: Acts as a direct drop-in replacement path for classic Motorola microboards.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
