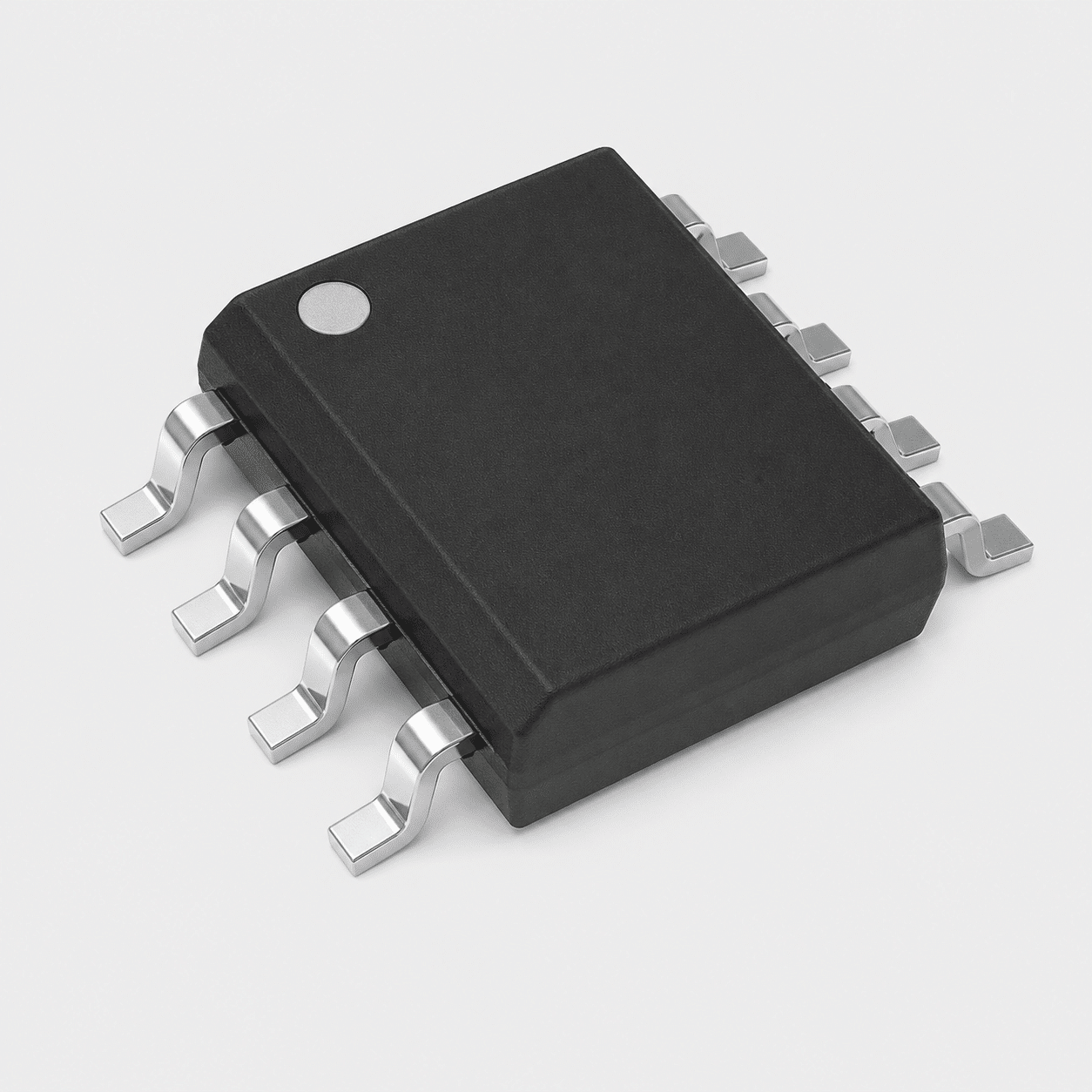

NE5532DR Operational Amplifier
5 nV/√Hz Ultra-Low Noise meets 10MHz Bandwidth – The Legendary Dual-Channel High-Fidelity Audio Silicon Choice for Professional Mixing Consoles, Preamplifiers, and High-End Audio Equipment.
// Large Output Voltage Swing Unity-Gain Compensated 8-Pin SOIC Portfolio
The Absolute Acoustic Fidelity Signal Conditioning Advantage
The NE5532DR represents a premier professional 8-pin SOIC packaged dual-channel high-performance operational amplifier solution engineered for space-constrained, high-throughput hardware architectures demanding absolute signal processing efficiency and ultra-low noise distortion profiles. Natively optimized for high-fidelity audio frequencies, this internally compensated module processes small-signal acoustic waveforms flawlessly without harmonic degradation, component inter-modulation risks, or clock transmission barriers. Operating across wide dual power rails up to ±22V, it secures pure, deterministic analog routing loops and completely cuts off hardware synchronization delays or signal clipping limitations under maximum output driving conditions.
- Elite equivalent input noise voltage specs (5 nV / √Hz typical) securing pure acoustic processing loops cleanly
- High small-signal bandwidth of 10 MHz alongside an 9 V/µs high slew rate tracking fast audio transients safely
- Robust internal driving stage capable of delivering high output currents to drive 600-Ohm loads smoothly
Key Performance Advantages
Ultra-Low Noise Floor
Keeps total harmonic distortion and noise floor metrics to an absolute minimum, ensuring crystal-clear audio signal amplification safely.
High Slew Rate Capability
Delivers an excellent 9 V/µs slew response, preserving high-frequency dynamics and removing transient audio response limits cleanly.
Compact 8-SOIC Outline
Housed inside a compact surface-mount layout frame, maximizing board real estate layout choices on high-density analog stages smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Texas Instruments (Premium Original Factory Sealed Sourcing) |
| Part Number (MPN) | NE5532DR (NE5532 Standard Series Matrix) |
| Amplifier Type | High-Performance Low-Noise Dual Operational Amplifier |
| Channel Density | 2 Independent Channels (Symmetrical Dual Package Framework) |
| Gain Bandwidth Product | 10 MHz (Typical Internal Processing Operational Velocity) |
| Slew Rate Metrics | 9 V/µs Typical Output Transient Response Tracking Speed |
| Input Noise Voltage Density | 5 nV/√Hz Typical at f = 1 kHz Audio Reference Nodes |
| Supply Voltage Range | ±3.0V to ±22V Dual Rails Range (or 6.0V to 44V Balanced Single Supply Rail) |
| Package / Case Form | SOIC-8 Package (8-pin Surface Mount Small Outline Enclosure 3.90mm Width) |
| Component Status | Production Quality Grade Active Commercial Analog Hardware Sourcing Portfolio |
Versatile High-Fidelity Acoustic Applications
- Professional Studio Consoles: Standard gain stage choice filtering mixer channels and audio line-in nodes cleanly and safely.
- High-End Audio Preamps: Delivers deterministic low-noise preprocessing pipelines needed inside audiophile DAC systems smoothly.
- Active Filter Networks: Handles demanding analog crossover filters and audio equalizers without injecting harmonic distortion cleanly.
- Industrial Signal Analyzers: Optimizes analog input amplification loops inside high-stability laboratory measurement kits.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
