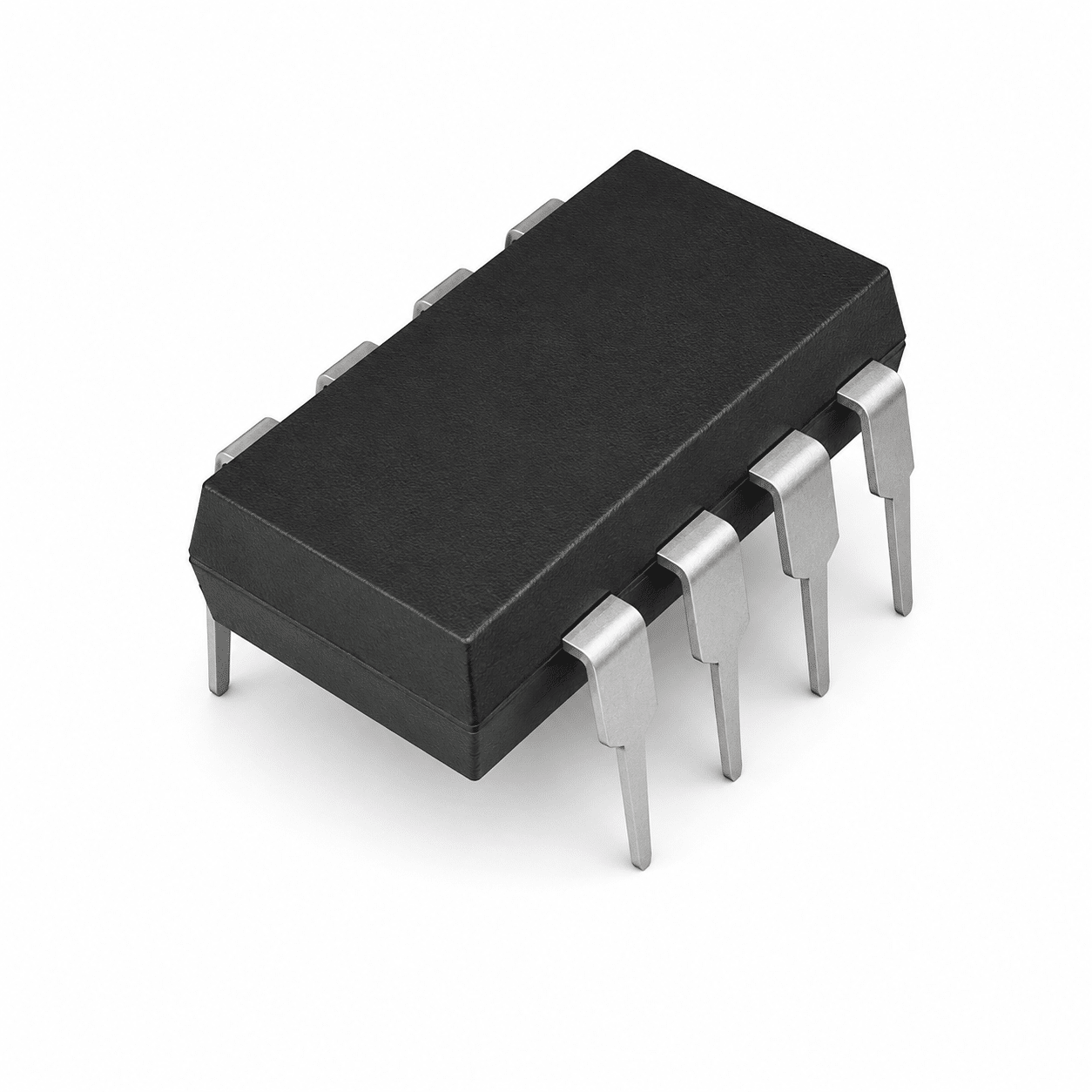

OP07CP Precision Operational Amplifier
Ultra-Low Offset Voltage meets Exceptional Long-Term Stability – The Professional High-Precision Low-Drift Op Amp Choice for Microvolt Signal Amplification.
// High-Gain Low-Noise 8-Lead Plastic DIP System Core Portfolio
The Precision Linear Amplification Advantage
The OP07CP represents a premier classic benchmark for low-frequency mixed-signal conditioning applications demanding absolute voltage precision and minimal drift thresholds. Engineered by Analog Devices, this operational amplifier achieves an incredibly low input offset voltage of 75 µV maximum, completely rendering external zeroing calibration redundant. Housed in a traditional through-hole 8-lead PDIP layout framework, it secures deterministic analog routing pathways and excellent open-loop gain linearity for elite medical and industrial test mainplates.
- Ultra-low input offset voltage (75 µV max) preserving micro-scale input signals
- Outstanding offset voltage drift stability (1.3 µV/°C max) eliminating thermal drift errors
- Wide input voltage envelope matrix paired with high common-mode rejection (CMRR 106 dB min)
Key Performance Advantages
Low Offset & Drift
Caps input offset at 75 µV, delivering excellent long-term runtime stability and bypassing complex localized hardware zeroing trimpot nets.
High Open-Loop Gain
Boasts an expansive 200 V/mV minimum open-loop gain profile, securing ultimate feedback loop precision in scientific weight scaling platforms.
Through-Hole PDIP-8
Housed in a rugged dual-in-line plastic package, enabling effortless prototyping sockets integration and robust wave soldering strength components.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Part Number (MPN) | OP07CP (Lead-Free Compliant) |
| Amplifier Type | Ultra-Low Offset High-Precision Operational Amplifier Series |
| Number of Channels | 1 Single Channel Hub |
| Input Offset Voltage (Max) | 75 µV (Micro-Volts Ultra-Low Constraint) |
| Input Bias Current (Max) | 3.8 nA Typical / Low Leakage Input Stages |
| Common Mode Rejection | 110 dB Typical CMRR / 106 dB Minimum Rating |
| Core Supply Rails | ±3V to ±18V Dual Symmetric Power Constraints |
| Package / Case Form | PDIP-8 / N-8 Package (Plastic Dual In-Line Standard Thru-Hole Layout) |
| Temperature Window | 0°C to +70°C Standard Commercial Operating Spectrum |
Versatile Precision Applications
- Strain Gage Amplification: Core analog tracking layout for precision electronic scales and weight transducers.
- Thermocouple Sensors: High-stability temperature logging modules secure from environmental ambient drifts.
- Precision Current Shunt Logs: Low-offset voltage drop calculation metrics inside industrial power modules.
- Stable Analog Integrators: Bypasses accumulation drift dependencies inside high-end instrumentation active filters.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
HIGH-PRECISION OPERATIONAL AMPLIFIER SOLUTIONS // DIRECT SOURCE ARCHITECTURE
