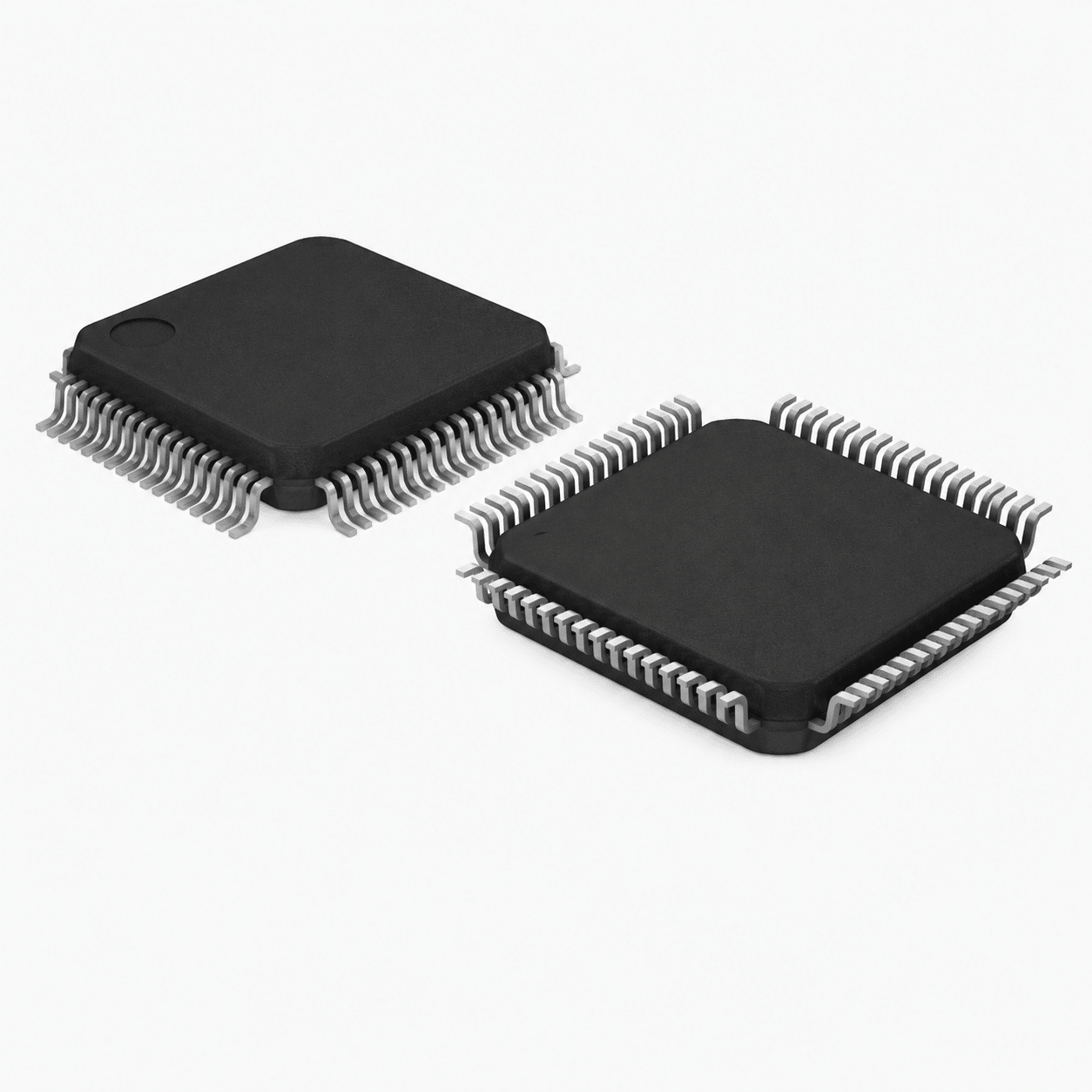

R5F100LEAFB#V0 RL78/G13 MCU
Ultra-Low Power Draw meets 32MHz Processing – The Professional 16-Bit Microcontroller Choice for Industrial Sensors and Consumer Electronics.
// High-Efficiency RL78 Core Low-Voltage Operation 64-Pin LQFP Portfolio
The High-Efficiency Eco-Friendly MCU Advantage
The R5F100LEAFB#V0 represents a premier professional 16-bit embedded microcontroller solution engineered for space-constrained, power-critical hardware architectures demanding absolute energy savings and versatile peripheral integration profiles. Built on Renesas’s advanced RL78/G13 core silicon framework operating up to 32MHz, this system processes specialized automation instrumentation, smart sensor algorithms, and localized terminal control loops flawlessly without code execution latency hazards. Housed in a standard 64-pin LQFP package footprint, it secures pure, deterministic software tracking execution loops and completely cuts off energy waste bottlenecks.
- Optimized 64 Kilobytes of onboard flash storage coupled with 4 Kilobytes of high-stability RAM
- Breakthrough low power consumption metrics at 66 µA/MHz during active operational routines safely
- Comprehensive interface matrix including hardware-assisted I2C, SPI, and UART tracking channels
Key Performance Advantages
Ultra-Low Current Consumption
Achieves industry-leading power reduction states under STOP/HALT configurations, significantly extending target battery lifespan in wireless telemetry nodes cleanly.
Built-in Safety Hardware
Integrates specialized flash memory CRC, RAM parity checks, and clock monitoring functions supporting strict home appliance safety criteria parameters safely.
64-Pin LQFP Layout
Housed inside a compact low-profile fine-pitch matrix configuration, balancing expansive I/O routing requirements with dense PCB spatial constraints smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Part Number (MPN) | R5F100LEAFB#V0 |
| Core Processor Type | 16-Bit RL78 Core System (High-Efficiency CISC Architecture) |
| Max Clock Frequency | 32 MHz Max Operating System Frequency Node |
| Program Memory Size | 64 Kilobytes (64KB Code Flash Memory Array) |
| SRAM / Data Flash | 4KB RAM Core + 4KB Dedicated Data Flash (supporting 100,000 erase cycles) |
| Converter Interfaces | Multi-Channel 10-bit High-Accuracy Analog-to-Digital Converter (ADC) Matrix |
| Voltage Range Supply | 1.6 VDC to 5.5 VDC Wide Nominal Operating Input Rails |
| Package / Case Form | LFQFP-64 package (64-Pin Low-Profile Quad Flat Pack Layout 10mm x 10mm) |
| Component Status | Production Quality Grade Active Commercial Hardware Portfolio |
Versatile Low-Power Applications
- Smart Utility Sensors: Core computing block driving portable flow meters, environmental data loggers, and localized field transmitters safely.
- Industrial Instruments: Handles real-time system diagnostic routines and analog sensor signal scaling components smoothly.
- Household Appliances: Delivers deterministic internal safety loops required for white goods control mainboards and user interface panels cleanly.
- Smart Building Endpoints: Optimizes long-term standby power parameters inside smart smoke sensors, thermostats, and security locks.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
