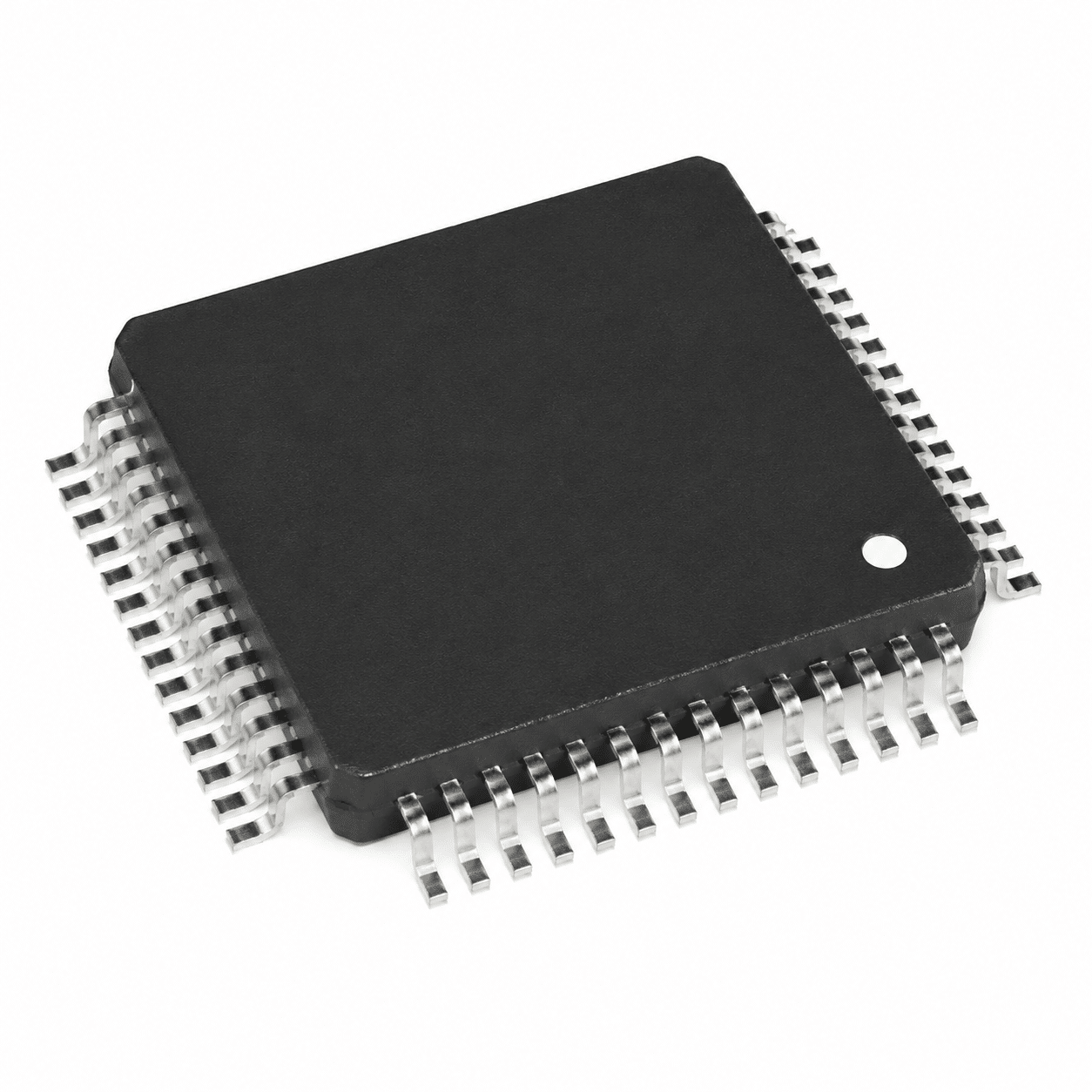

R5F5631ECDFM#V0 RX631 MCU
2MB Mass Flash meets 100MHz Clock Rate – The Professional 32-Bit Microcontroller Choice for Smart Metering, Security Systems, and IoT Gateways.
// High-Efficiency RX610 Core Integrated USB 2.0 64-Pin LFQFP Portfolio
The High-Density Advanced Communication MCU Advantage
The R5F5631ECDFM#V0 represents a premier professional 32-bit embedded microcontroller solution engineered for space-constrained industrial processing units demanding absolute execution efficiency and rich on-chip connectivity profiles. Built on Renesas’s advanced RX core silicon architecture operating up to 100MHz, this module processes complex automation calculation loops, localized terminal control protocols, and real-time sensor processing flawlessly. Housed in a standard 64-pin LFQFP package footprint, it secures pure, deterministic software tracking execution and completely cuts off systemic hardware processing latency hazards.
- Massive 2 Megabytes of onboard program flash storage coupled with 128 Kilobytes of high-stability SRAM
- Integrated hardware connectivity controllers including USB 2.0 Full-Speed, CAN interface, and multi-channel serial lines
- Advanced low-power technology framework optimizing thermal thresholds for continuous field deployment safely
Key Performance Advantages
100MHz RX Core Performance
Integrates an advanced floating-point unit (FPU) and multi-stage pipeline, delivering robust real-time computational throughput cleanly.
2MB Flash Capacity
Supplies vast, reliable on-chip memory density, allowing ample space for complex storage-heavy communication protocols and firmware data sets safely.
Integrated USB & Peripherals
Features built-in USB 2.0 modules and multi-channel serial communication interfaces, minimizing the required PCB component layouts efficiently.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Part Number (MPN) | R5F5631ECDFM#V0 (RX631 Group Matrix) |
| Core Processor Type | 32-Bit RX Core System (with Enhanced FPU and High-Throughput DSP Engine) |
| Max Speed Frequency | 100 MHz Maximum Continuous Operating Cycle Speed Parameters |
| Program Memory Size | 2 Megabytes (2MB Dense Code Flash Array organized for Secure Field Deployment) |
| SRAM / Data Flash | 128KB High-Stability System RAM + 32KB Dedicated Data Flash Matrix |
| Connectivity Portals | USB 2.0 Full-Speed Module, CAN Interface, SCI, SPI, I2C Channels Standard |
| Converter Interfaces | Multi-Channel High-Accuracy 10-bit/12-bit Analog-to-Digital Converter (ADC) Matrix |
| Voltage Range Supply | 2.7 VDC to 3.6 VDC Standard Nominal Power Rail Calibration |
| Package / Case Form | LFQFP-64 package (64-Pin Low-Profile Quad Flat Pack Layout 10mm x 10mm Sizing) |
Versatile Embedded IoT Applications
- Smart Infrastructure Metering: Core processing block driving electricity, gas, and digital flow tracking parameters safely.
- Industrial Gateway Nodes: High-bandwidth communication controller executing protocol conversions and field data transfers cleanly.
- Building Security Panels: Handles multi-channel sensor monitoring, interface relays, and local logging setups smoothly.
- Medical Equipment Displays: Provides deterministic computing matrices needed for portable diagnostics panels and telemetry monitors.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
