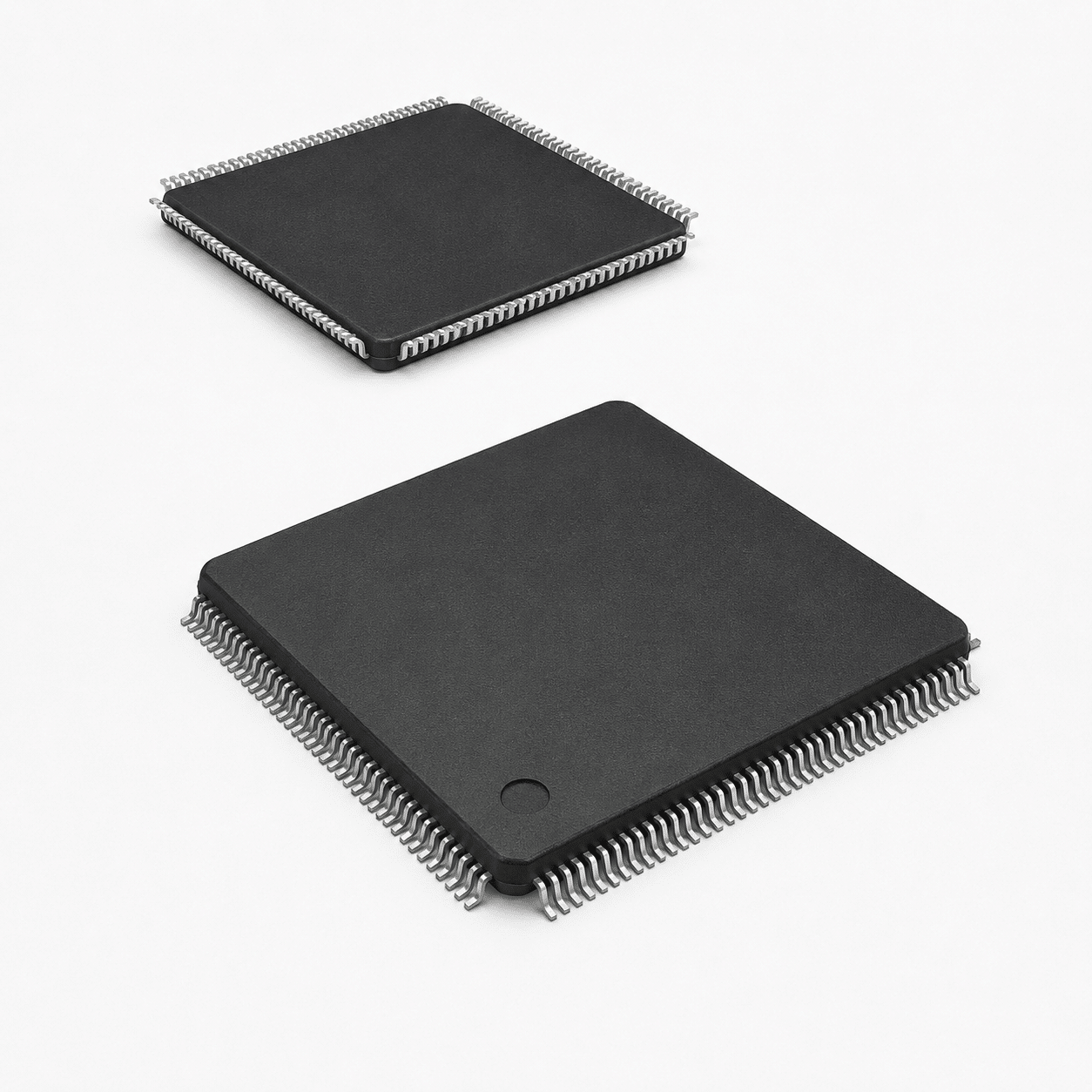

R5F564MLCDFC#V1 RX64M MCU
4MB Mass Flash meets 120MHz Clock Rate – The Professional 32-Bit Microcontroller Choice for Industrial Automation and Ethernet Gateways.
// High-Efficiency RXv2 Core Embedded Ethernet MAC 176-Pin LFQFP Portfolio
The High-Performance Industrial Controller Advantage
The R5F564MLCDFC#V1 represents a premier flagship 32-bit embedded microcontroller solution engineered for dense, space-constrained industrial processing units demanding absolute execution efficiency and comprehensive network communication profiles. Built on Renesas’s advanced RXv2 core silicon architecture operating up to 120MHz, this module processes complex automation calculation loops, floating-point arithmetic, and high-density industrial control protocols flawlessly. Housed in a standard 176-pin LFQFP package footprint, it secures pure, deterministic software tracking execution and completely cuts off systemic hardware processing latency hazards.
- Massive 4 Megabytes of onboard flash storage coupled with 512 Kilobytes of zero-wait SRAM
- Integrated hardware acceleration modules including an Ethernet MAC, USB 2.0 Full-Speed, and dual CAN networks
- Advanced cryptographic hardware engine providing robust data protection metrics safely
Key Performance Advantages
120MHz RXv2 Core
Integrates an advanced FPU and DSP instruction pipe, delivering ultra-fast parallel computing capabilities to handle massive real-time mathematical operations smoothly.
4MB Flash / 512KB SRAM
Supplies vast, reliable on-chip memory density, allowing ample space for storage-heavy OS kernels, Ethernet protocol stacks, and localized firmware data sets safely.
Integrated Ethernet MAC
Features built-in IEEE 802.3 compliant network connectivity channels, shrinking required external transceiver layouts while securing ultra-stable cloud syncs.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Part Number (MPN) | R5F564MLCDFC#V1 |
| Core Processor Type | 32-Bit RXv2 Flagship Core System (with Enhanced FPU and DSP Execution Modules) |
| Max Speed Frequency | 120 MHz Maximum Continuous Operating Cycle Speed Parameters |
| Program Memory Size | 4 Megabytes (4MB Dense Flash Array organized with Dual-Bank Safe Swap functions) |
| SRAM Capacity Matrix | 512 Kilobytes (512KB High-Stability Data Ram Core Subsystem) |
| Connectivity Portals | Ethernet MAC, USB 2.0 Host/Function/OTG, CAN Bus Interface, SCI, SPI, I2C Channels |
| Peripherals Framework | Multi-Channel 12-bit A/D Converters, 12-bit D/A, Hardware Cryptographic Engine, Real-Time Clock (RTC) |
| Voltage Range Supply | 2.7 VDC to 3.6 VDC Standard Nominal Power Rail Calibration |
| Package / Case Form | LFQFP-176 package (176-Ball Lead-Free Plastic Fine-Pitch Grid Layout) |
Versatile Industrial Automation Applications
- Programmable Logic Controllers (PLC): Core controller silicon running multi-channel automated tracking loops and loop calculation matrices safely.
- Industrial Ethernet Gateways: High-bandwidth data routing corridors driving protocol conversions and industrial network nodes smoothly.
- Inverter & Servo Drive Units: Delivers deterministic real-time pulse modulation needed for heavy high-speed motor steering components.
- Smart Building Infrastructure: Secures consistent non-volatile data exchange capabilities inside central climate control panels and security modules.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
HIGH-PERFORMANCE RX64M 32-BIT MCU SOLUTIONS // DIRECT SOURCE ARCHITECTURE
