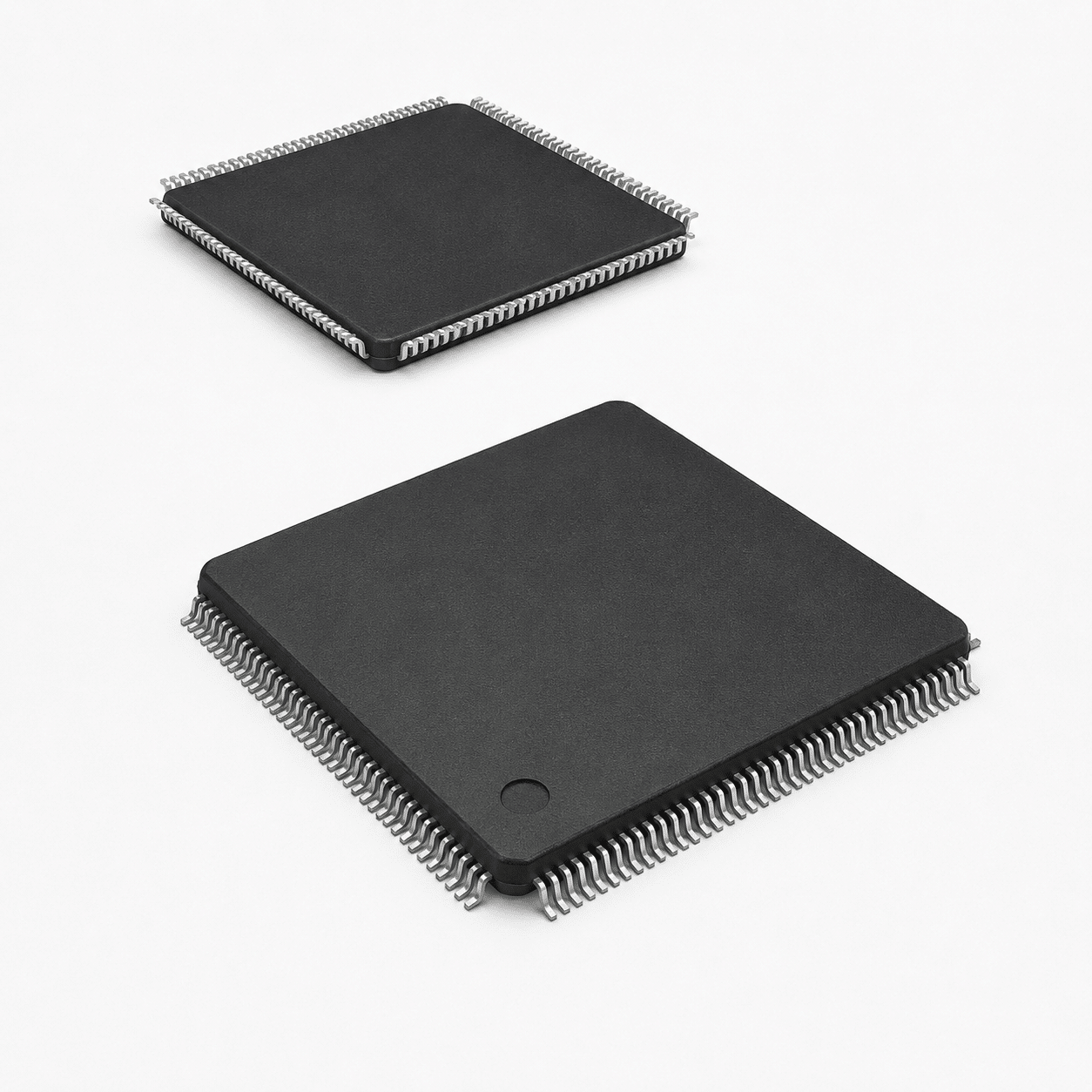

R7F7010233AFP#AA2 RH850/F1L
Automotive-Grade Safety meets 32-Bit RH850 Core – The Professional Car-Body MCU Microcontroller Choice for BCM and Gateway Modules.
// High-Efficiency Automotive Network CAN-FD Interface 144-Pin LQFP Portfolio
The Automotive Rugged Security MCU Advantage
The R7F7010233AFP#AA2 represents a premier flagship 32-bit automotive-grade microcontroller solution engineered for high-density, severe-duty body control frameworks demanding absolute functional safety and real-time networking capabilities. Built on Renesas’s legendary RH850/F1L silicon architecture, this system processes multi-channel CAN interface routing, advanced lighting timers, and localized vehicle data exchange flawlessly without data loss hazards. Housed in a standard 144-pin LQFP package configuration, it secures pure, deterministic software execution tracking loops and completely eliminates systemic hardware processing latency bottlenecks.
- High-performance 32-bit RH850 automotive core architecture optimizing power-consumption draw
- Integrated hardware network controllers including CAN-FD, LIN, and high-speed clock arrays safely
- Full AEC-Q100 qualification compliance ensuring extreme robustness under volatile vehicle environments
Key Performance Advantages
AEC-Q100 Qualified
Engineered to pass absolute automotive reliability protocols, ensuring flawless chip operation under massive heat spikes and intense mechanical road vibrations cleanly.
Multi-Channel CAN-FD
Integrates embedded automotive bus transceivers, scaling secure dynamic packet data streaming smoothly across multi-layer primary gateway nodes.
144-Pin LQFP Form
Housed inside a low-profile plastic pin grid outline format, optimizing layout board space and mechanical trace integration on target automotive PCBs.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Part Number (MPN) | R7F7010233AFP#AA2 |
| Core Architecture | 32-Bit RH850 Vehicle Core Core Microcontroller Module Engine (RH850/F1L Series) |
| Memory Infrastructure | High-Density On-Chip Embedded Program Flash with Data Flash Allocation Block |
| Automotive Bus Links | Multi-Channel CAN-FD Controller, LIN Interface, and Serial Communication Interfaces |
| Functional Safety Grade | ISO 26262 ASIL Support Architecture with Hardware Security Cryptographic Module |
| Converter Matrix | Multi-Channel High-Speed 10-bit/12-bit Analog-to-Digital Converter (ADC) Units |
| Package / Case Form | LQFP-144 package (144-Pin Low-Profile Fine-Pitch Quad Flat Pack Layout) |
| Quality Reliability | AEC-Q100 Fully Compliant Grade Active Automotive Component Profile |
Versatile Automotive Embedded Applications
- Body Control Modules (BCM): Primary electronic hardware brain managing vehicular power distribution, climate doors, and lighting tracks safely.
- Central Gateway Systems: High-reliability network routing corridors linking discrete vehicle communication domains (CAN/LIN networks) smoothly.
- Smart HVAC Controllers: Delivers deterministic real-time data processing needed for modern multi-zone car cabin climate adjustment matrices.
- Car Lighting Architectures: Secures consistent pulse generation capabilities inside adaptive high-end exterior LED matrix headlight control panels.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
