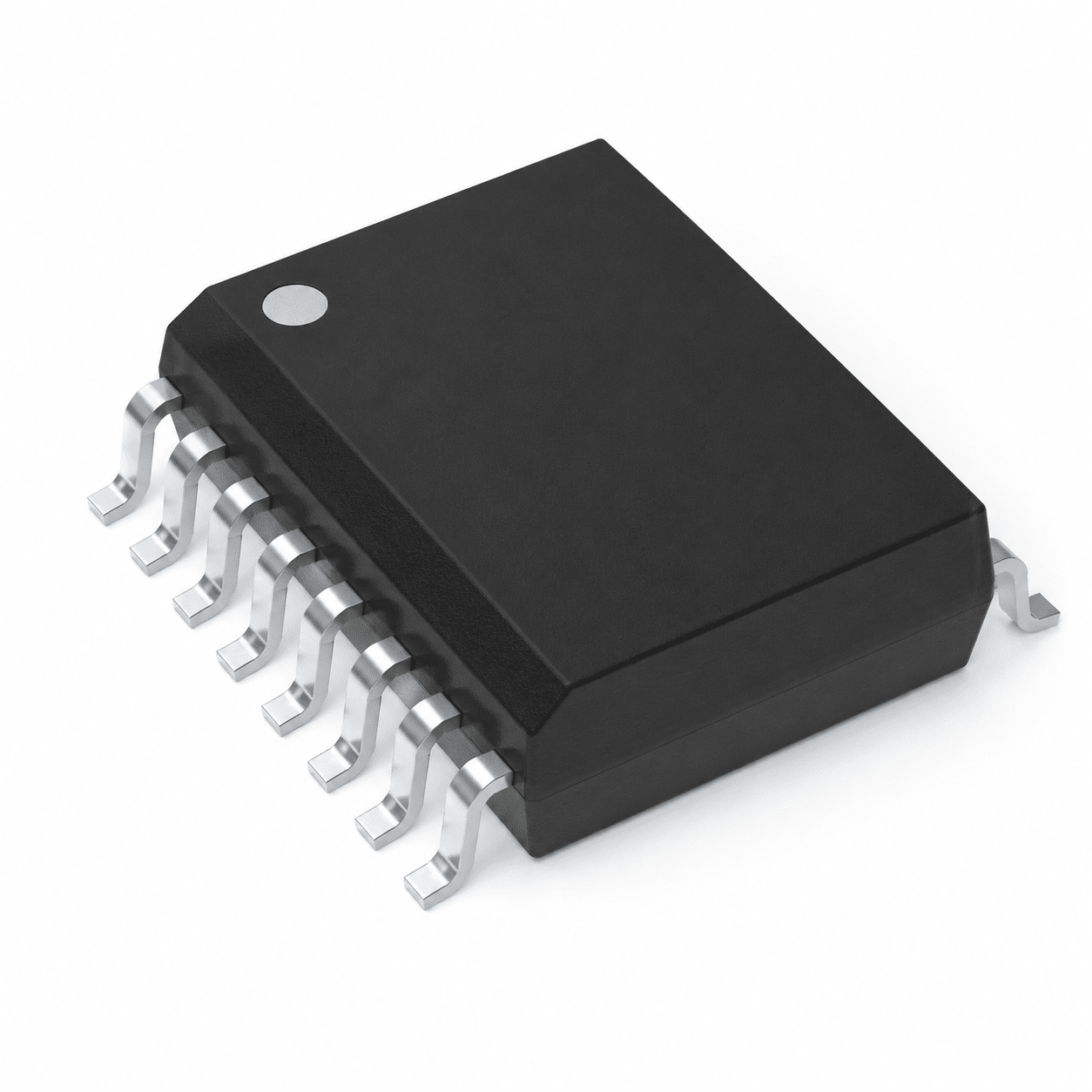

S25FL128SAGMFI011 NOR Flash
128Mb Density meets 133MHz Quad-SPI – The Professional MirrorBit™ Flash Memory Choice for Automotive Embedded Systems.
// High-Reliability 3.0V Density Core 16-Pin SOIC 300-mil Portfolio
The High-Reliability Code Storage Advantage
The S25FL128SAGMFI011 represents a premier flagship single-chip storage solution for high-density, automotive-grade layout configurations demanding absolute data retention integrity and ultra-fast boot performance. Engineered by Spansion (Infineon Technologies) utilizing their breakthrough MirrorBit™ non-volatile silicon architecture, this SPI NOR Flash memory processes multi-bit logic cells flawlessly. Housed in a standardized 16-pin SOIC package footprint, it secures pure, deterministic code telemetry loops and completely removes systemic data corruption hazards.
- 128 Megabit density array matrix handling substantial application firmware loads safely
- Advanced Quad-SPI protocol executing rapid data throughput up to 80 Megabytes per second
- Patented MirrorBit™ core mechanism delivering superior cell uniformity and long lifecycle endurance
Key Performance Advantages
133MHz Quad-SPI Speed
Supports high-speed Read operations up to 133MHz in Quad-I/O mode, fully unlocking the data bandwidth potential for instant-on embedded setups.
MirrorBit™ Silicon Technology
Features an advanced multi-bit-per-cell architecture that secures excellent cost-per-bit advantages while maintaining rigorous industrial data retention targets.
Rugged SOIC-16 Form
Packaged in a standard 300-mil 16-pin SOIC outline, offering high pin-reliability and strong thermal dissipation benchmarks on multi-layer PCBs.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Infineon Technologies / Cypress Semiconductor |
| Part Number (MPN) | S25FL128SAGMFI011 |
| Memory Category | High-Performance SPI NOR Flash Non-Volatile Memory Discrete Series |
| Storage Density | 128 Megabit (128 Mb Array Configured as 16 Megabytes) |
| Interface Type | SPI (Serial Peripheral Interface) with Dual and Quad I/O Modes |
| Max Clock Frequency | 133 MHz Standard Continuous Clock Timing Matrix |
| Core Supply Voltage | 2.7V to 3.6V Single Nominal Operating Power Rail |
| Silicon Architecture | Patented 65nm MirrorBit™ Flash Core Modulator Subsystem |
| Package / Case Form | SOIC-16 Package (300-mil Width Plastic Small Outline Layout) |
| Temperature Window | Extended Performance Industrial Spectrum (-40°C to +85°C) |
Versatile Embedded Applications
- Automotive Electronics: Advanced driver-assistance systems (ADAS), high-definition instrument clusters, and infotainment core units.
- Industrial Controller Boards: Reliable non-volatile code logging corridors for rugged PLCs, factory robotics, and human-machine interfaces (HMI).
- Telecommunication Hardware: Holds primary firmware boot images inside enterprise routers, optical network terminals, and base stations.
- Smart Electronic Meters: Secure program storage node loop protecting multi-phase data logging grids against sudden field power loss traps.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
