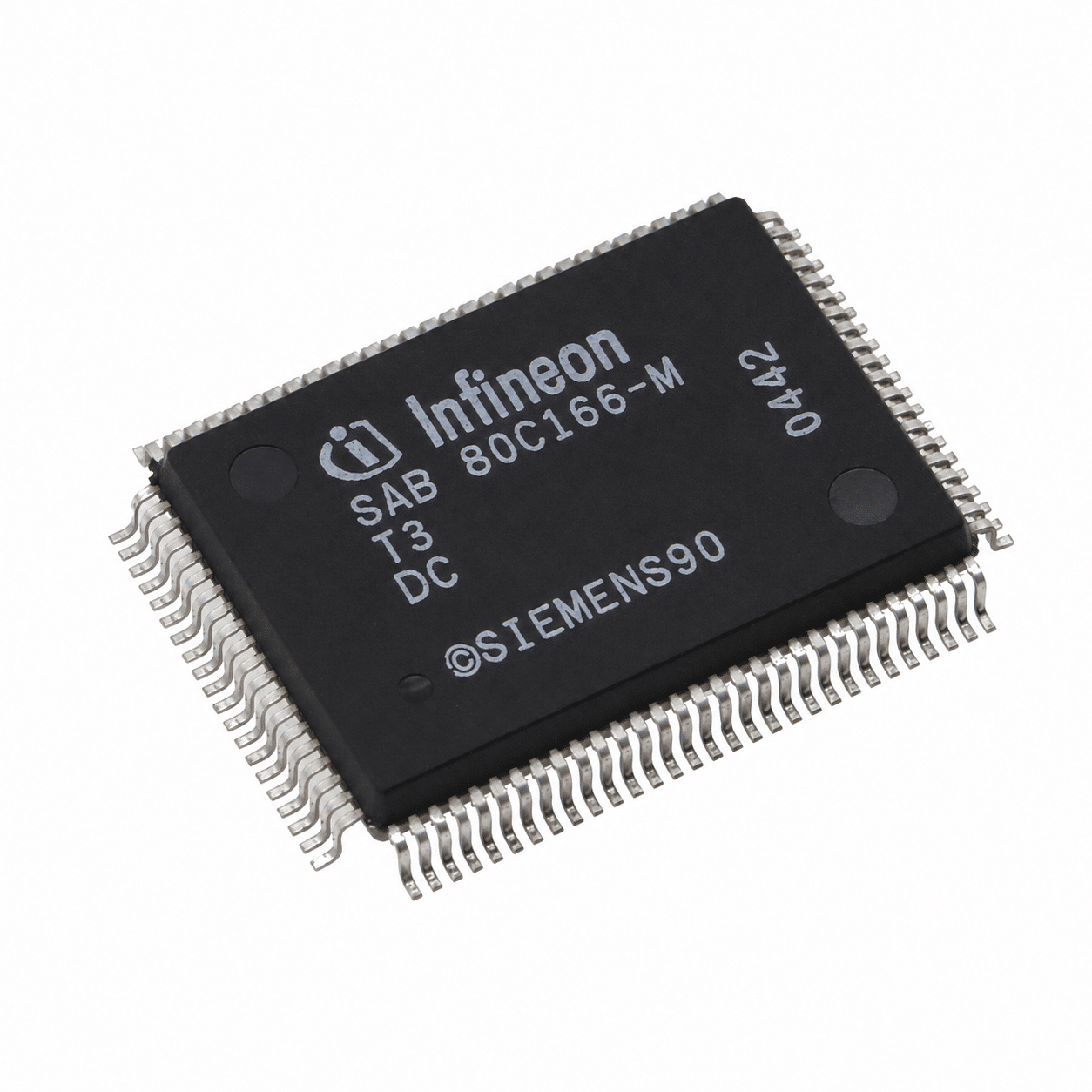

SAB80C166-M-T3 16-Bit Microcontroller IC
Real-Time Determinism meets High-Speed Processing – The Professional 16-Bit CMOS MCU Choice for Complex Automotive & Industrial Embedded Engineering.
// High-Reliability C166 Architecture Portfolio
The 16-Bit Real-Time Architecture
The SAB80C166-M-T3 delivers optimized real-time processing capabilities through a highly efficient 16-bit core pipeline. Designed by Infineon to bridge the gap between standard microcontrollers and digital signal processors, it minimizes interrupt latency and maximizes math execution speeds. Combined with its rugged environmental resilience, it provides the deterministic tracking accuracy required by heavy automotive ECU networks and multi-axis industrial motors.
- High-speed 16-bit CPU core with comprehensive register banking
- Integrated 10-bit Analog-to-Digital Converter (ADC) with 10 channels
- Advanced Capture/Compare (CAPCOM) units for high-precision PWM generation
Key Performance Advantages
40ns Instruction Pipeline
Features a rapid, instruction-gated pipeline capable of running complex real-time algorithmic control maps with minimum processing overhead or signal jitter.
10-Channel ADC Subsystem
Houses a built-in 10-bit analog conversion module, allowing rich multi-sensor telemetry tracking grids to stream into the core engine smoothly.
Extended Thermal Window
Certified for industrial-grade thermal spectrum compliance, ensuring predictable register operations from harsh sub-zero tracks to intense engine bay heat.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Infineon Technologies / Siemens Semiconductor |
| Part Number (MPN) | SAB80C166-M-T3 |
| Core Architecture | 16-Bit High-Performance CMOS Microcontroller (MCU) |
| On-Chip RAM | 1 Kbyte System Internal SRAM Area |
| Analog-to-Digital (ADC) | 10-Channel, 10-bit Resolution Analog Voltage Converter |
| Capture/Compare Units | Integrated CAPCOM Unit for Flexible PWM Timing Control |
| Integrated Peripherals | Programmable Watchdog Timer, Baud Rate Generators, Serial Links |
| Package / Case Form Factor | MQFP-100 / P-MQFP-100-2 (Metric Quad Flatpack Layout) |
| Operating Temperature Window | -40°C to +85°C Extended Industrial / Automotive Range |
| External Bus Structure | Configurable 8/16-bit Multiplexed/Demultiplexed External Bus |
Versatile Embedded Applications
- Automotive Electronics: Ideal engine control management units (ECU) and chassis steering nodes.
- Industrial Controls: Manages complex closed-loop servo drives, motor positioners, and PLC platforms.
- Legacy System Extensions: Provides steady long-lifecycle deployment paths for critical aviation or rail controls.
- Real-Time Robotics: Resolves dense kinematics computation matrix loops with stable execution timing.
Industrial Quality Protections
100% Original Sourcing: Backed completely by vetted elite tier-1 franchise lines with zero risk of gray-market dilution.
Anti-Static Handling: Processed in certified clean-room facilities following meticulous international ESD protocols.
Traceable Lot Inspection: Verified via absolute documentation tracking and physical validation before departure.
