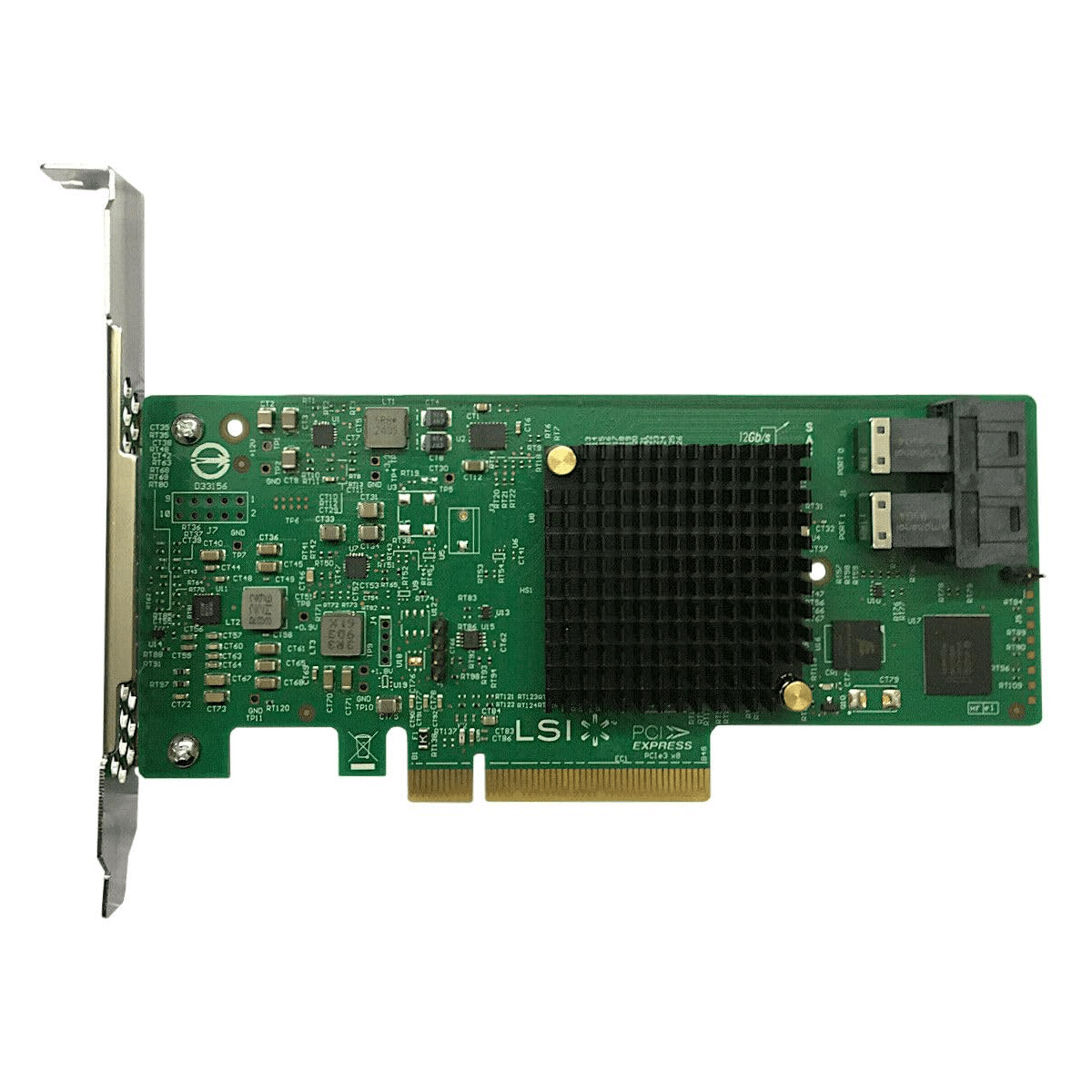

SAS9300-8I Host Bus Adapter
12Gb/s Storage Throughput meets PCIe 3.0 Lane Speed – The Professional 8-Port Internal HBA Choice for High-Density Server Scaling.
The Enterprise Server Storage Advantage
The SAS9300-8I represents the absolute flagship standard for high-density, enterprise-tier storage environments demanding maximum I/O throughput and exceptional drive array adaptability. Engineered by LSI (Broadcom Limited), this 12Gb/s Host Bus Adapter (HBA) connects massive SAS and SATA drive clusters flawlessly across high-speed PCI Express 3.0 lanes. Housed in a low-profile form factor, it secures pure, deterministic data routing channels and completely cuts off systemic storage communication bottleneck hazards.
- 8 Internal ports providing high-bandwidth links for up to 1024 end devices via expanders
- PCI Express 3.0 x8 host link interface delivering a massive data interface rate
- Dual internal Mini-SAS HD (SFF-8643) layout connectors for high mechanical reliability
Key Performance Advantages
12Gb/s High Speed
Doubles the performance of legacy 6Gb/s SATA/SAS adapters, fully unlocking the bandwidth potential of modern enterprise solid-state drives (SSDs).
Massive Scalability
Utilizes SAS Link microcode architecture to expand and manage large storage arrays effortlessly, accommodating complex tier-1 backup pools.
Low-Profile Profile
Housed in a standard low-profile MD2 structure, maximizing airflow dissipation and fitting perfectly inside dense 1U/2U rack servers.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Broadcom Limited / LSI Technology |
| Part Number (MPN) | SAS9300-8I |
| Product Category | PCI Express 12Gb/s SAS / SATA Host Bus Adapter (HBA) |
| I/O Controller IC | LSI SAS3008 High-Performance Storage Controller Core |
| Internal Ports | 8 Independent SAS/SATA Physical Ports |
| Data Link Connections | 2 x SFF-8643 Mini-SAS HD High-Density Internal Connectors |
| Host Bus Link Speed | PCI Express 3.0 x8 Lane Layout Configuration |
| Data Transfer Rates | 12Gb/s Compliant SAS 3.0 / 6Gb/s Compliant SATA III Arrays |
| Package Form Factor | Low-Profile MD2 Design (Includes Full-Height & Low-Profile Brackets) |
| Device Support Max | Up to 1024 Non-RAID SAS / SATA Storage System Drives |
Versatile Storage Applications
- Enterprise Data Centers: Core physical storage interface card linking high-capacity server drive expansion enclosures (JBODs).
- Cloud Server Scalings: Provides deterministic high-speed data transmission for cloud virtualization nodes and software-defined storage.
- Big Data Analytics Systems: Handles continuous parallel file requests flawlessly inside dense data warehouse mainplates.
- High-Availability Server Blades: Enables rapid multi-lane device tracking and fallback logging for enterprise tier-1 backups.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
