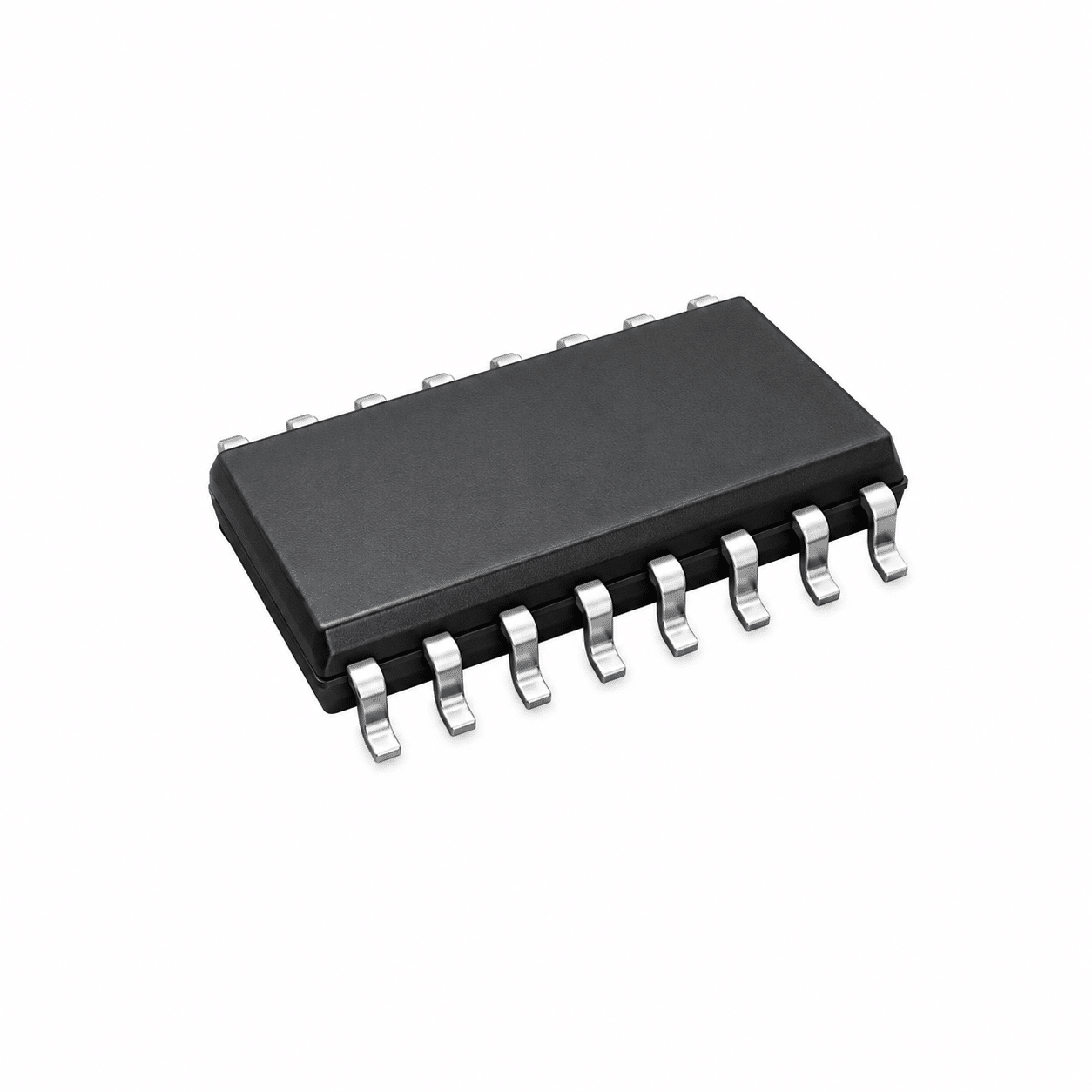

Si8234BB-D-IS1 Gate Driver
2.5 kV RMS High Isolation meets 4A Peak Output – The Professional Isolated Dual-Channel Gate Driver Silicon Choice for High-Efficiency Power Inverters and Switch-Mode Supplies.
// High-Efficiency Isolated Core Programmable Dead-Time 16-Pin SOIC NB Portfolio
The High-Reliability Power Switching Isolation Advantage
The Si8234BB-D-IS1 represents a premier professional isolated dual-channel gate driver solution engineered for space-constrained, high-efficiency power architectures demanding absolute high-speed switching execution and robust signal telemetry isolation profiles. Built on Skyworks’ proprietary CMOS isolation platform framework, this module processes independent high-side/low-side or dual low-side gate drive control signals flawlessly without propagation delay mismatched loops or latch-up hazards. Housed in a standard 16-pin SOIC Narrow Body package form factor, it secures pure, deterministic high-voltage drive tracking loops and completely cuts off dangerous power bus electrical noise transients.
- Powerful 4.0A peak sink and source output drive capability powering heavy MOSFET and IGBT gates easily
- Certified 2.5 kV RMS input-to-output galvanic isolation barrier keeping critical digital control circuitry safe smoothly
- Integrated programmable dead-time control logic completely preventing destructive shoot-through hazards safely
Key Performance Advantages
4.0A Peak Drive
Delivers robust switching energy currents, charging input capacitances rapidly to guarantee low dynamic power losses inside target power silicon loops cleanly.
2.5kV Galvanic Barrier
Deploys highly reliable RF isolation technology, maintaining strict low-latency signal paths while reflecting harmful high-voltage surges safely.
Programmable Dead-Time
Features hardware-adjustable delay tuning via an external resistor node, preventing bridge short circuits and enhancing topology security smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Skyworks Solutions, Inc. (Originally Silicon Laboratories Line) |
| Part Number (MPN) | Si8234BB-D-IS1 (Si823x ISOdriver Product Matrix) |
| Product Category | High-Performance Isolated Dual-Channel Gate Drivers |
| Isolation Rating Voltage | 2500 Vrms Galvanic Isolation Barrier Capability Loop Standard |
| Peak Output Current | 4.0A Maximum Sink Current / 4.0A Maximum Source Current Nodes |
| Propagation Delay Max | 60 ns Maximum Matching Transmission Latency Parameters |
| Driver Supply Voltage | Output Side: 6.5 VDC to 24 VDC Power Rail Range Matrix Calibration |
| Transient Immunity (CMTI) | 45 kV/µs Minimum Common-Mode Overvoltage Suppression Mode |
| Package / Case Form | SOIC-16 Narrow Body (Plastic 16-Lead Surface Mount Package 3.9mm Width) |
| Component Status | Production Quality Grade Active Commercial Hardware Allocation Portfolio |
Versatile High-Efficiency Power Applications
- Switch-Mode Power Supplies (SMPS): Primary isolated drive block executing high-frequency secondary synchronous rectification and DC-DC power conversion loops safely.
- Solar & Industrial Inverters: Delivers deterministic real-time pulse switching required for central bridge topologies and phase power control systems smoothly.
- Motor Control Drive Systems: Handles heavy inductive switching profiles for multi-phase BLDC, servo drives, and heavy automation tracking units cleanly.
- High-Power Lighting Ballasts: Optimizes long-term operational stability inside centralized industrial stadium or facility power management grids.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
