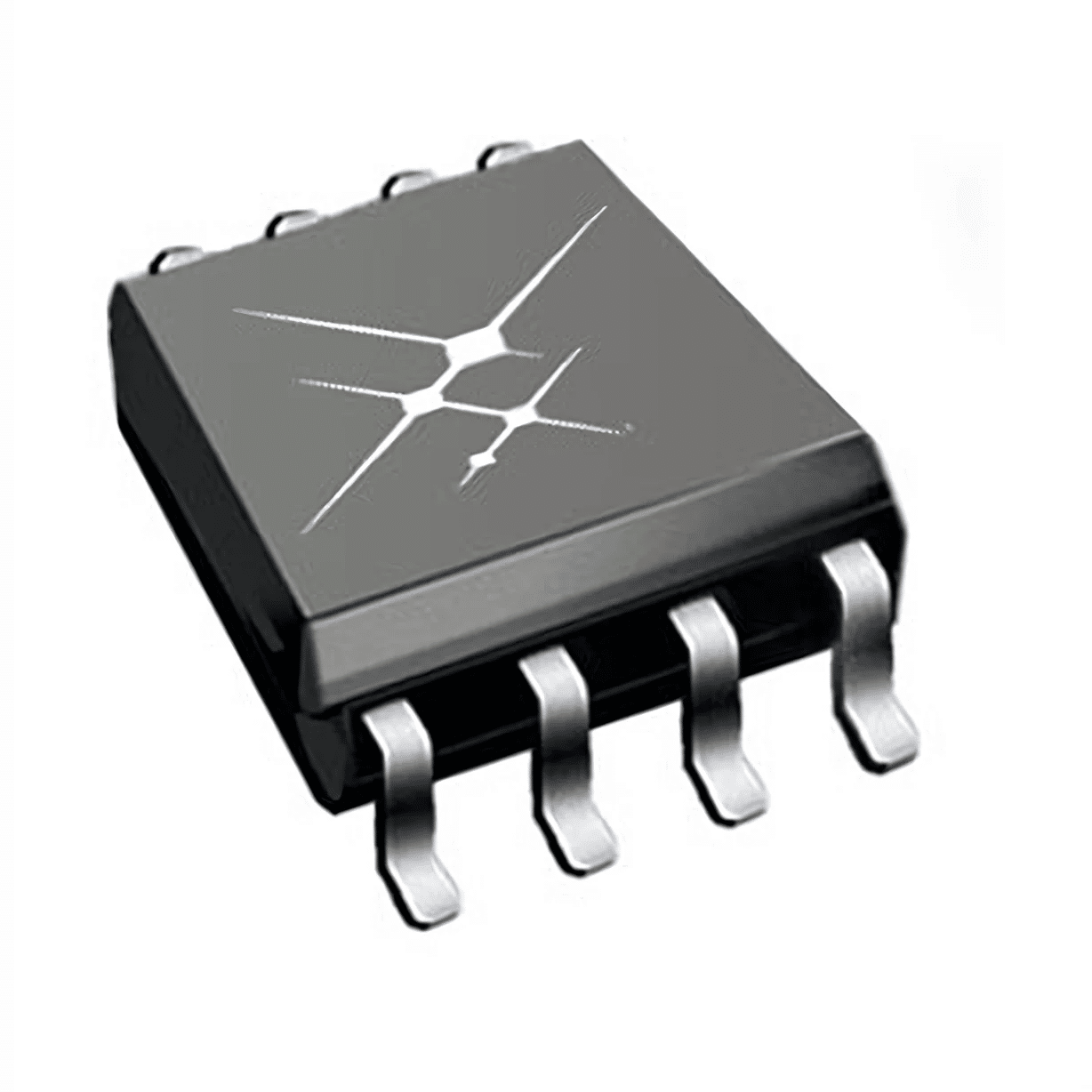

Si8621BC-B-IS Digital Isolator
150 Mbps High-Speed Data meets 3.75 kV RMS Isolation – The Professional Dual-Channel Digital Isolator Silicon Choice for High-Density Industrial Bus Telemetry.
// Ultra-Low Power Core 1 Forward / 1 Reverse Channel Symmetrical 8-Pin SOIC Portfolio
The High-Speed Low-Latency Data Isolation Advantage
The Si8621BC-B-IS represents a premier professional dual-channel digital galvanic isolator solution engineered for space-constrained, high-speed hardware architectures demanding absolute signal processing efficiency and robust noise immunity profiles. Utilizing Skyworks’ proprietary capacitive isolation technology, this module processes up to 150Mbps high-frequency data transmission across 1 forward and 1 reverse directional channels flawlessly without propagation jitter or latch-up hazards. Housed in a standard 8-pin SOIC Narrow Body package footprint, it secures pure, deterministic digital routing and completely cuts off high-voltage ground loop vulnerabilities.
- High-speed data throughput up to 150 Mbps supporting rapid industrial communication interfaces cleanly
- Robust 3.75 kV RMS galvanic isolation rating shielding sensitive MCUs against power bus transients safely
- Optimized channel configuration layout (1/1 bidirectional structure) perfectly matching isolated TX/RX UART architectures smoothly
Key Performance Advantages
150Mbps Ultra-Speed
Unlocks high-frequency processing paths, perfect for fast TX/RX communication lines, serial buses, and low-latency digital control cleanly.
3.75kV Galvanic Barrier
Deploys highly reliable internal insulation boundaries, defending digital processing chips against main system voltage noise transients safely.
8-Pin SOIC NB Design
Housed inside an ultra-compact narrow-body surface mount layout, maximizing spatial board savings on heavily populated substrates smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Skyworks Solutions, Inc. (Originally Silicon Laboratories Line) |
| Part Number (MPN) | Si8621BC-B-IS (Si862x Product Matrix Group) |
| Product Category | High-Performance Dual-Channel High-Speed Digital Isolators |
| Isolation Rating Voltage | 3750 Vrms Galvanic Isolation Barrier Capability Loop Standard |
| Data Rate Capacity | Up to 150 Mbps High-Frequency Digital Signal Switching Modes |
| Channel Configuration | 2 Channels Total (1 Forward / 1 Reverse Bidirectional Symmetrical Topology) |
| Supply Voltage Range | 2.5 VDC to 5.5 VDC Wide Nominal Operating Rails Supply Matrix |
| Transient Immunity (CMTI) | 35 kV/µs Minimum Common-Mode Overvoltage Suppression Mode |
| Package / Case Form | SOIC-8 Narrow Body (Plastic 8-Lead Surface Mount 3.9mm Substrate Width) |
| Component Status | Production Quality Grade Active Commercial Hardware Allocation Portfolio |
Versatile High-Speed System Applications
- Isolated UART & Serial Links: Perfect 1/1 bidirectional structural layout driving isolated Transmit (TX) and Receive (RX) lines safely.
- Industrial Fieldbus Modules: Core data corridor running isolated RS-485 point-to-point lines and CAN bus transceiver interfaces smoothly.
- Switch-Mode Power Supplies: Delivers deterministic low-latency digital signal feedback channels required inside solar inverters cleanly.
- Medical Telemetry Hubs: Optimizes computational noise filtering parameters inside patient monitoring devices requiring strict patient isolation.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
