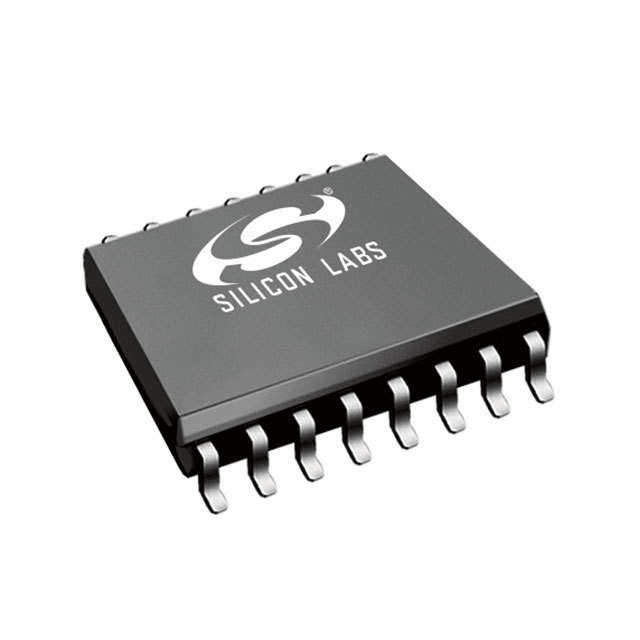

Si8641BB-B-IS1 Digital Isolator
150 Mbps High-Speed Data meets 2.5 kV RMS Isolation – The Professional Quad-Channel Digital Isolator Silicon Choice for High-Density Industrial Bus Telemetry.
// Ultra-Low Power Core 3 Forward / 1 Reverse Channel Symmetrical 16-Pin SOIC Portfolio
The High-Speed Low-Latency Data Isolation Advantage
The Si8641BB-B-IS1 represents a premier professional quad-channel digital galvanic isolator solution engineered for space-constrained, high-speed hardware architectures demanding absolute signal processing efficiency and robust noise immunity profiles. Utilizing Skyworks’ proprietary capacitive isolation technology, this module processes up to 150Mbps high-frequency data transmission across 3 forward and 1 reverse directional channels flawlessly without propagation jitter or latch-up hazards. Housed in a standard 16-pin SOIC Narrow Body package footprint, it secures pure, deterministic digital routing and completely cuts off high-voltage ground loop vulnerabilities.
- High-speed data throughput up to 150 Mbps supporting rapid industrial communication interfaces cleanly
- Robust 2.5 kV RMS galvanic isolation rating shielding sensitive MCUs against power bus transients safely
- Optimized channel configuration layout (3/1 structure) perfectly matching isolated SPI bus architectures smoothly
Key Performance Advantages
150Mbps Ultra-Speed
Supports high-frequency data routing lanes with minimal propagation delays, optimizing fast real-time signal telemetry cycles cleanly.
High CMTI Noise Rejection
Delivers high common-mode transient immunity, safeguarding data pipelines against heavy electromagnetic induction spikes safely.
16-Pin SOIC NB Design
Housed inside a standard narrow-body surface mount layout, balancing multi-channel trace layouts with substrate space constraints smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Skyworks Solutions, Inc. (Originally Silicon Laboratories Line) |
| Part Number (MPN) | Si8641BB-D-IS1 (Si864x Product Matrix Group) |
| Product Category | High-Performance Quad-Channel High-Speed Digital Isolators |
| Isolation Rating Voltage | 2500 Vrms Galvanic Isolation Barrier Capability Loop Standard |
| Data Rate Capacity | Up to 150 Mbps High-Frequency Digital Signal Switching Modes |
| Channel Configuration | 4 Channels Total (3 Forward / 1 Reverse Directional Topology Alignment) |
| Supply Voltage Range | 2.5 VDC to 5.5 VDC Wide Nominal Operating Rails Supply Matrix |
| Propagation Delay Typ | Ultra-low 10ns Low-Jitter Core Timing Transmission Calibration |
| Package / Case Form | SOIC-16 Narrow Body (Plastic 16-Lead Surface Mount 3.9mm Substrate Width) |
| Component Status | Production Quality Grade Active Commercial Hardware Allocation Portfolio |
Versatile High-Speed System Applications
- Isolated SPI Interfaces: Perfect 3/1 structural layout driving isolated Master-In Slave-Out (MISO) and clock pipelines safely.
- Industrial Fieldbus Modules: Core data corridor running isolated RS-485, CAN, and high-frequency PROFIBUS control loops smoothly.
- Switch-Mode Power Supplies: Delivers deterministic low-latency digital signal feedback channels required inside solar inverters cleanly.
- Battery Management (BMS): Optimizes multi-cell energy pack monitoring connections needing strict data link noise isolation.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
