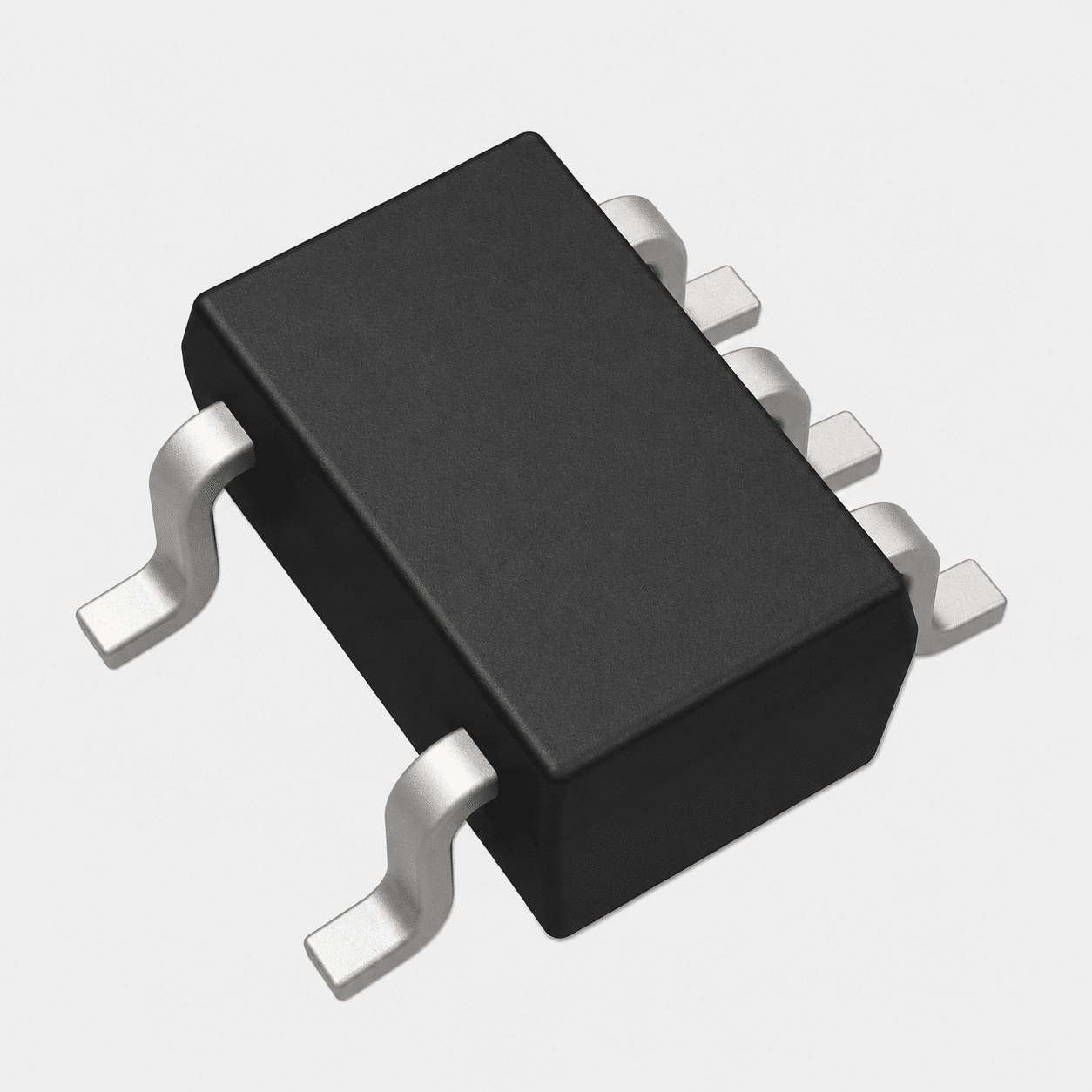

SN74LVC1G08DCKR Logic IC
Ultra-Fast 3.6ns Propagation Delay meets 5V Input Tolerance – The Professional Single 2-Input Positive-AND Gate Silicon Choice for Mobile Devices, Signal Level Translation, and High-Density Board Space Optimization.
// 1.65V to 5.5V Supply Rails Support Ioff Partial-Power-Down Mode 5-Pin SC70 Package
The Monolithic Ultra-Compact Logic Advantage
The SN74LVC1G08DCKR represents a premier professional SC70-5 (SOT-353) packaged single 2-input positive-AND gate digital logic solution engineered for space-constrained, high-throughput hardware architectures demanding absolute instruction execution efficiency, signal gating accuracy, and minimal power consumption. Built on Texas Instruments’ advanced low-voltage CMOS (LVC) technology framework operating at a deterministic sub-4ns speed node, this module processes sub-system enable signals and arithmetic logic verification flawlessly without bus-loading hazards or thermal dissipation bottlenecks. Operating through high-speed internal silicon matrices, it secures pure, deterministic signal routing loops and completely cuts off hardware layout propagation delays.
- Highly flexible wide DC supply voltage range from 1.65V to 5.5V supporting multi-generation MCU rails safely
- Advanced 5V input tolerance structure enabling seamless down-translation from 5V to lower logic nodes cleanly
- Full Ioff partial-power-down circuitry support preventing damaging current backflow when powered down smoothly
Key Performance Advantages
3.6ns High-Speed Execution
Achieves remarkable propagation delay metrics (3.6ns typical at 3.3V), delivering crisp real-time signal transmission paths smoothly without bus latency bottlenecks.
5V Tolerant Signal Ports
Natively accepts input logic signals up to 5.5V regardless of the active supply rails value, executing down-translation interface controls safely.
Micro SC70-5 Footprint
Housed inside an ultra-miniature SMT layout package frame, saving vital printed circuit board real estate on densely packed high-layer substrates smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | Texas Instruments (Premium Original Factory Sealed Allocation) |
| Part Number (MPN) | SN74LVC1G08DCKR (Marking Code: CE / C08) |
| Logic Function Type | AND Gate (Single Channel, 2 Inputs, 1 Output Frame) |
| Logic Circuit Family | 74LVC (Low-Voltage CMOS Series Technology Matrix) |
| Supply Voltage Range | 1.65 VDC to 5.5 VDC Main Wide Operational Rail Range |
| Output Current Output | ±24 mA Balanced Drive Strength (at 3.3V Operational Point) |
| Propagation Delay Max | 3.6ns Typical / 4.5ns Maximum (at Vcc = 3.3V Reference Grid) |
| Low-Power Down Mode | Integrated Ioff Partial Power Down Subsystem Supporting Floating Links safely |
| Package / Case Form | SC-70-5 package (SOT-353, Plastic 5-pin Ultra-Miniature SMT Layout Frame) |
| Operating Temperature | -40°C to +125°C Full Industrial Over-Temperature Spectrum Range |
Versatile Low-Voltage Logic Applications
- Smartphones & Tablets: Primary logic control block executing signal synchronization and sub-system enable configurations safely.
- Embedded MCU Control Links: Delivers deterministic hardware AND logic verification pipelines needed for peripheral bus gating smoothly.
- Voltage Level Down-Translation: Natively handles down-stepping 5V active signals to lower CPU input logic boundaries cleanly.
- Industrial Handheld Toolsets: Optimizes computational space constraints and cuts down passive standby leakages inside battery kits.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
