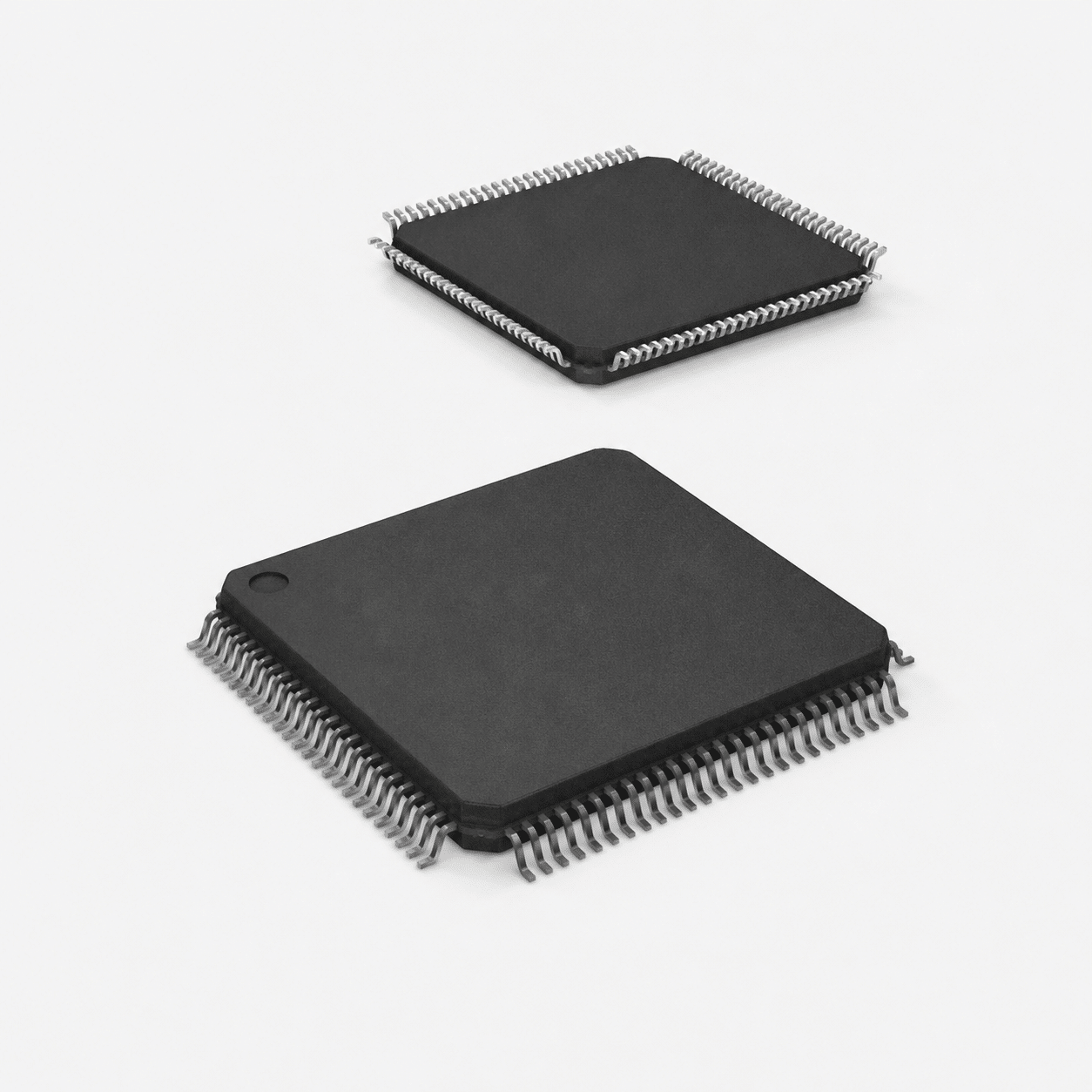

STM32F407VGT6 MCU Microcontroller
168MHz ARM Cortex-M4 Core with DSP & FPU meets Rich Peripherals – The High-Performance 32-Bit RISC Silicon Choice for Advanced Industrial Automation, Medical Systems, and Complex Robotics.
// 1 MB Flash Memory 192 KB SRAM Ethernet MAC Multi-Channel Interface Portfolio
The Absolute High-Performance Processing Advantage
The STM32F407VGT6 represents a premier professional LQFP-100 packaged 32-bit RISC active microprocessor type controller solution engineered for high-throughput hardware architectures demanding absolute computational efficiency, floating-point math execution, and expansive connectivity profiles. Built on ST’s legendary ARM Cortex-M4 silicon framework operating at a deterministic 168 MHz speed node, this module processes high-fidelity sensor datasets and operational arithmetic loops flawlessly without thermal bottlenecks or clock transmission barriers. Operating through high-speed internal data buses and featuring an ART Accelerator for zero-wait-state execution, it secures pure, deterministic instructions routing loops and completely cuts off hardware synchronization delays.
- High-performance 32-bit ARM Cortex-M4 core architecture with integrated DSP and FPU (operating cleanly at 168 MHz)
- Massive embedded storage blocks delivering 1 Megabyte of Flash memory safely
- Comprehensive interface matrix including Ethernet MAC, USB OTG HS/FS, and multi-channel 12-bit ADC units cleanly
Key Performance Advantages
168MHz with DSP & FPU
Leverages advanced single-cycle DSP instructions and a dedicated Floating Point Unit, delivering ultra-crisp execution parameters smoothly for complex digital filtering and control algorithms.
Advanced Interconnectivity
Integrates IEEE 1588v2 Ethernet MAC, USB 2.0 OTG High-Speed/Full-Speed, and dual CAN 2.0B active nodes to orchestrate heavy communication networks safely.
Massive Memory Footprint
Deploys 1 Megabyte of high-density Flash memory alongside 192 Kilobytes of system SRAM, supporting heavy embedded OS kernels and large data arrays smoothly.
Technical Specifications
| Parameter Node | Detailed Engineering Specification |
|---|---|
| Manufacturer | STMicroelectronics (Premium Sealed Allocation) |
| Part Number (MPN) | STM32F407VGT6 (STM32F4 High-Performance Line) |
| Core Processor | ARM® Cortex®-M4 32-Bit RISC Core with DSP and FPU Instructions |
| Core Speed Frequency | 168 MHz Maximum Operational Frequency Matrix |
| Program Memory Size | 1 MB (1M x 8) Non-Volatile High-Density Flash Space Structure |
| RAM Memory Capacity | 192 KB Total SRAM (including 64 KB of CCM Data RAM) |
| Connectivity Interfaces | Ethernet, USB OTG HS/FS, CAN 2.0B, SPI, I2C, UART/USART, SDIO, Camera Interface |
| I/O Count Nodes | 82 Configurable General Purpose Inputs/Outputs (GPIO) with Interrupt Capability |
| Voltage Supply Nominal | 1.8V ~ 3.6V Main Wide Operational Rail Range |
| Component Package | 100-LQFP Package (14x14mm Low-profile Quad Flat Package Form Factor) |
Versatile High-End MCU Applications
- Advanced Industrial PLCs: High-performance architecture choice driving multi-axis motor controllers and factory automation systems safely.
- Medical Imaging & Monitoring: Delivers deterministic signal filtering loops and real-time computation for medical monitors smoothly.
- Drones & Autonomous Robotics: Handles demanding sensory flight control algorithms, multi-sensor fusing, and localized path tracking cleanly.
- Smart Network Gateways: Optimizes computational parameters inside connected IoT servers, industrial routers, and security access hubs.
Industrial Quality Protections
100% Original Sourcing: Procured securely through fully audited tier-1 franchise lines, completely ensuring anti-counterfeit protection.
Anti-Static Handling: Stored and picked in full alignment with international ANSI/ESD cleanroom facility benchmarks.
Full Batch Traceability: Verified via intensive certificate analysis and rigorous documentation tracking prior to export dispatch.
